9-14
SERVICING
INFORMATION

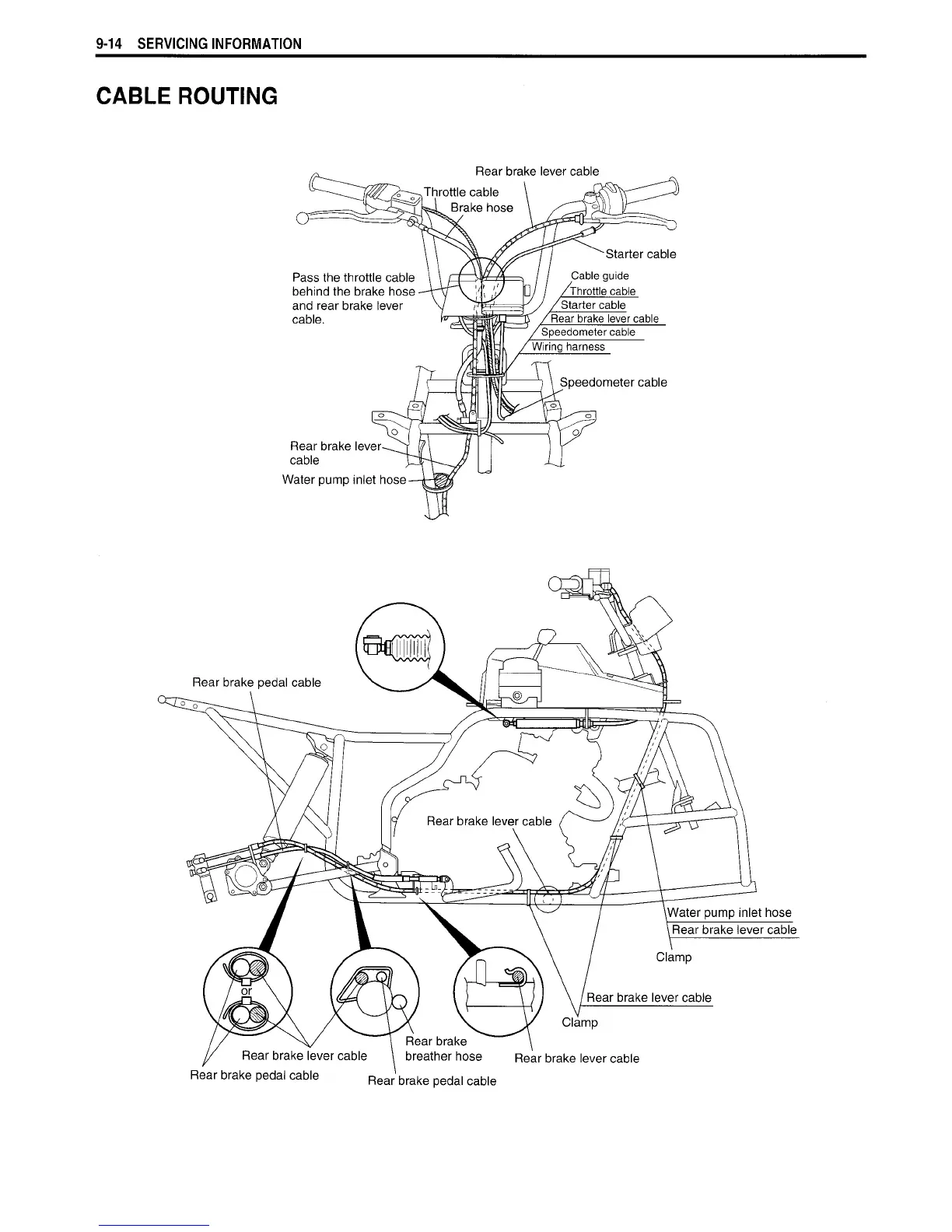

CABLE
ROUTING
Rear
brake lever cable
^Throttle
cable
Brake hose
Pass
the
throttle
cable
behind the brake hose
and rear brake lever
cable.
Rear
brake lever
cable
Water pump
inlet
hose
Speedometer cable
Rear
brake
Rear
brake pedal cable
Clamp
Rear
brake lever cable
Rear
brake pedal cable
