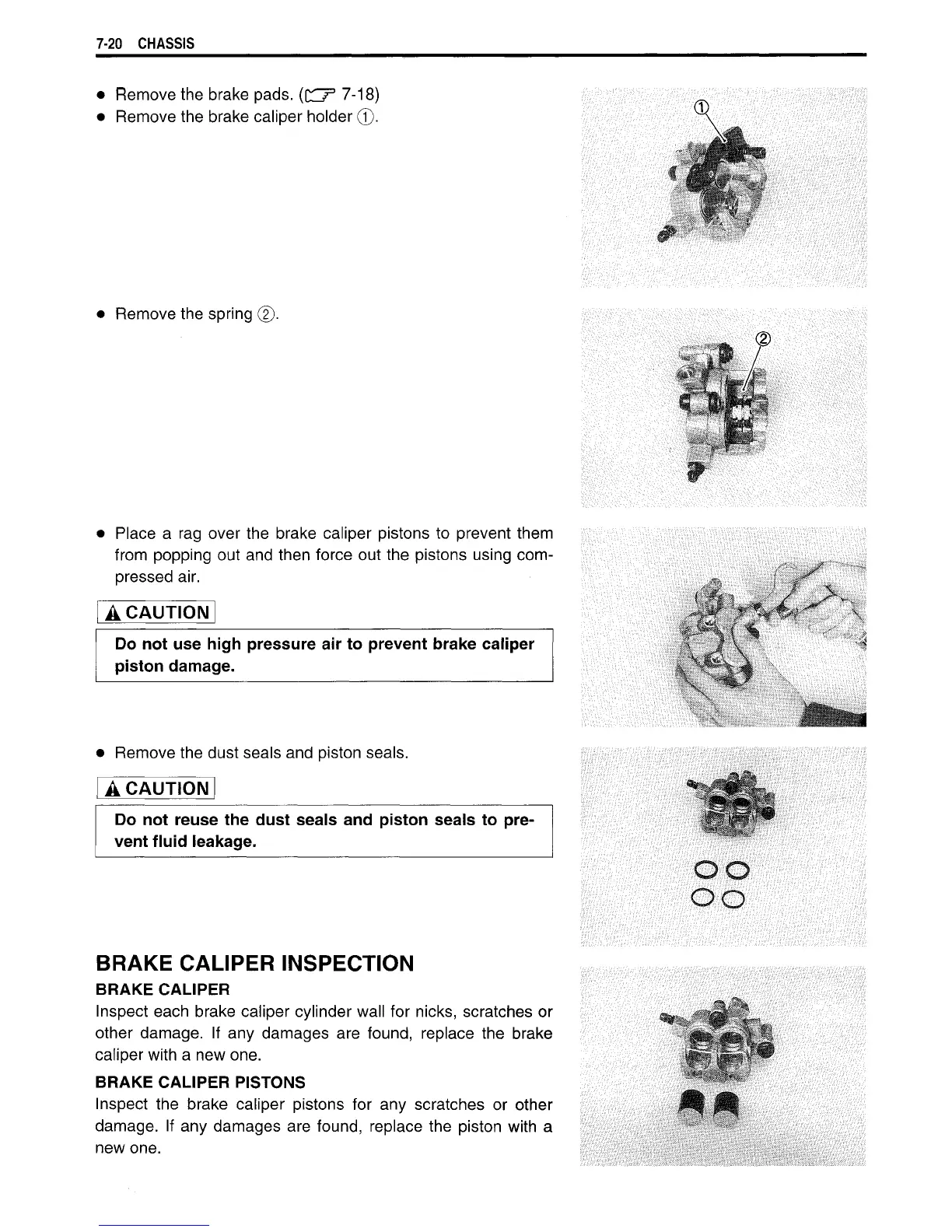

7-20 CHASSIS
• Remove the brake pads. (O
3
7-18)
• Remove the brake caliper holder ©.
WMKM
• Remove the spring
• Place a rag over the brake caliper pistons to prevent them
from popping out and then force out the pistons using com-
pressed air.
A CAUTION
Do not use high pressure air to prevent brake caliper
piston damage.
• Remove the dust seals and piston seals.
A CAUTION
Do not reuse the dust seals and piston seals to pre-
vent fluid leakage.
BRAKE CALIPER INSPECTION
BRAKE CALIPER
Inspect each brake caliper cylinder wall for nicks, scratches or
other damage. If any damages are found, replace the brake
caliper with a new one.
BRAKE CALIPER PISTONS
Inspect the brake caliper pistons for any scratches or other
damage. If any damages are found, replace the piston with a
new one.
