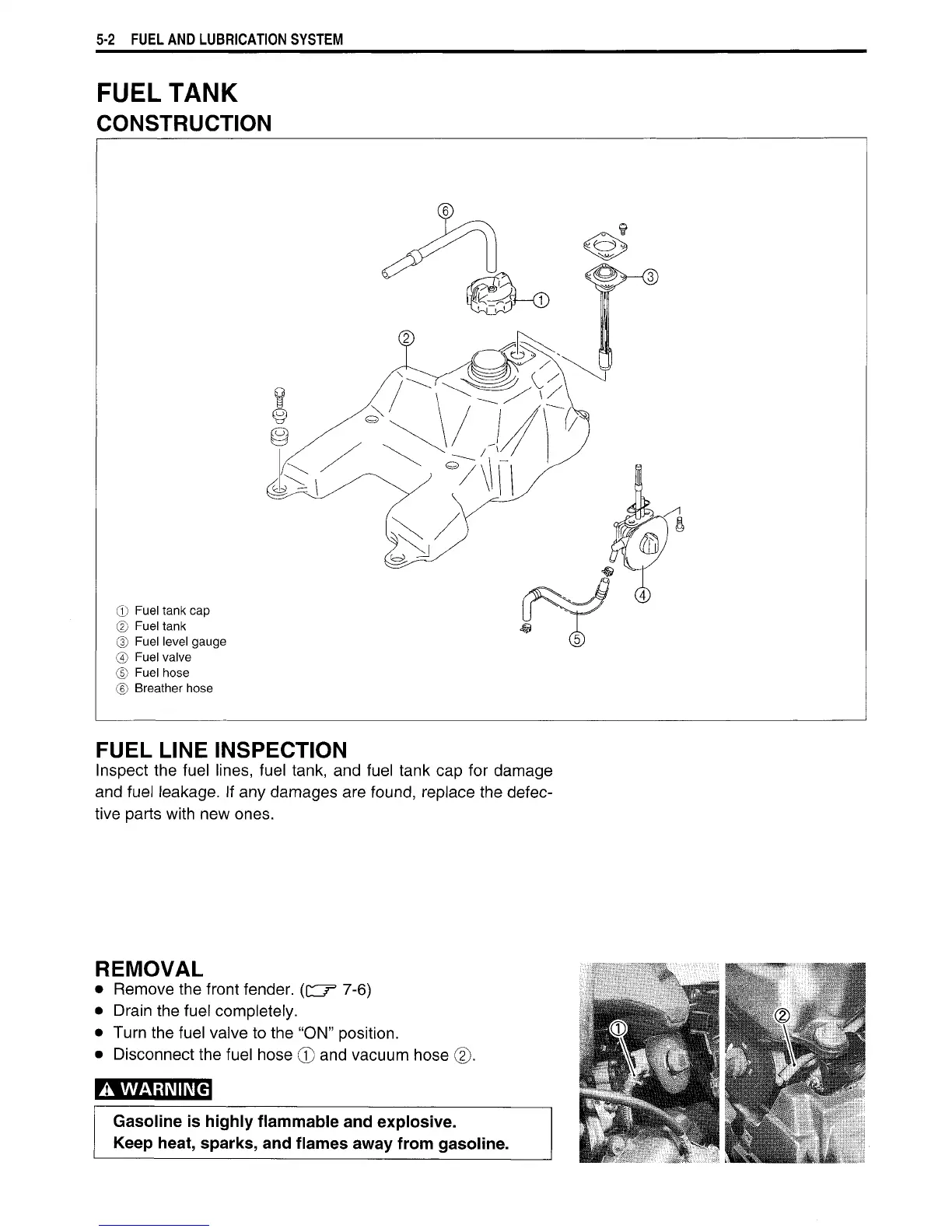

5-2
FUEL
AND LUBRICATION SYSTEM
FUEL
TANK
CONSTRUCTION
©
Fuel
tank cap
©
Fuel
tank
®
Fuel
level
gauge
©
Fuel
valve
©
Fuel
hose
©
Breather
hose
FUEL
LINE INSPECTION
Inspect the fuel lines, fuel tank, and fuel tank cap
for
damage
and fuel leakage. If any damages are found, replace the defec-
tive
parts
with
new ones.
REMOVAL
•
Remove
the front fender.
7-6)
•
Drain the fuel completely.
•
Turn the fuel valve to the "ON" position.
•
Disconnect the fuel hose
®
and vacuum hose
A
WARNING
Gasoline
is highly flammable and explosive.
Keep
heat,
sparks,
and flames away
from
gasoline.
