Suzuki Vinson LT-A500F - Rear Suspension Construction

7-50 CHASSIS

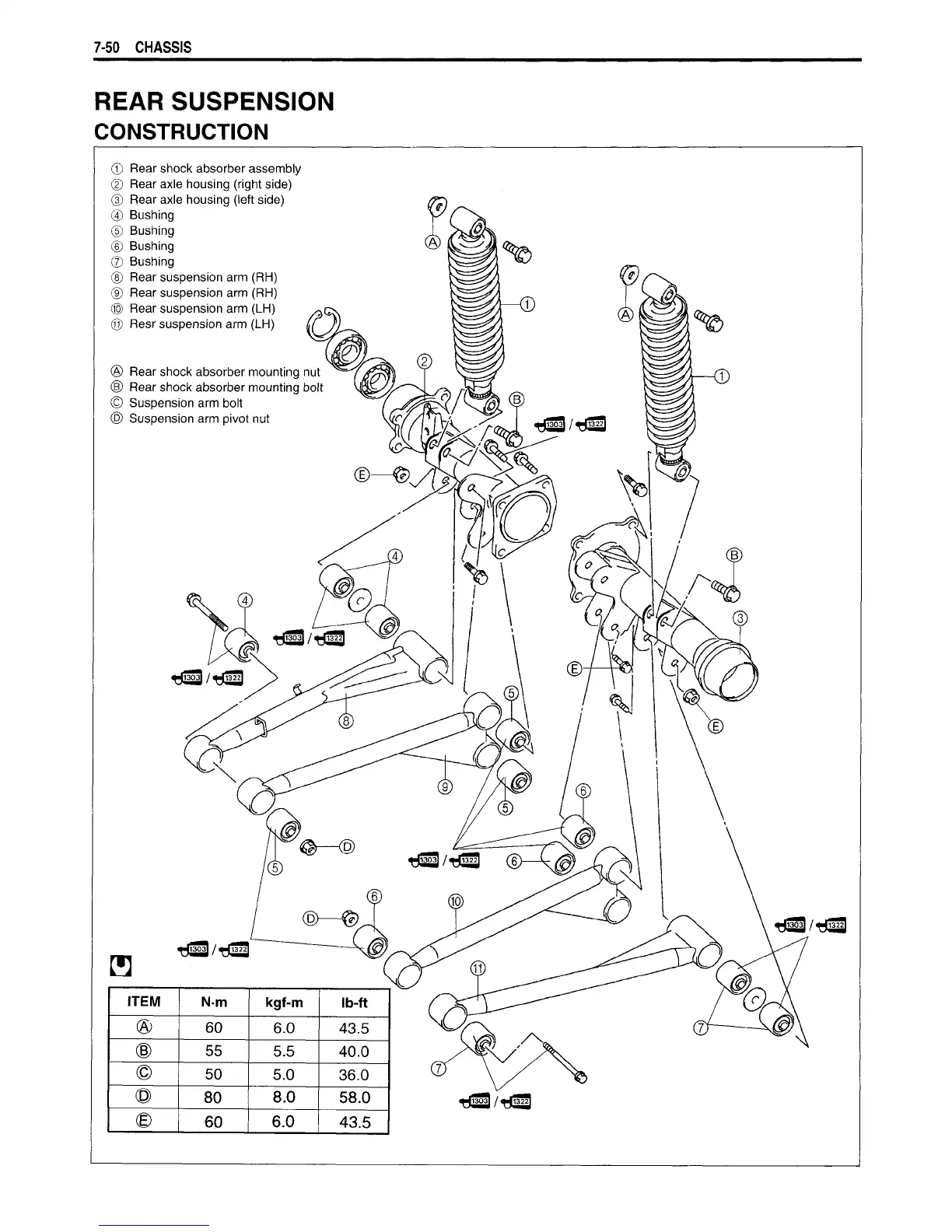

REAR SUSPENSION
CONSTRUCTION
©
©
©
®
©
©
©
Rear shock absorber assembly
Rear axle housing (right side)
Rear axle housing (left side)
Bushing
Bushing
Bushing
Bushing
Rear suspension arm (RH)
Rear suspension arm (RH)
Rear suspension arm (LH)
Resr suspension arm (LH)
Rear shock absorber mounting nut
® Rear shock absorber mounting bolt
Suspension arm bolt
Suspension arm pivot nut
ITEM
Nm
kgf-m
Ib-ft
®
60 6.0
43.5
®
55 5.5
40.0
©
50
5.0
36.0
®
80 8.0 58.0
60
6.0
43.5
