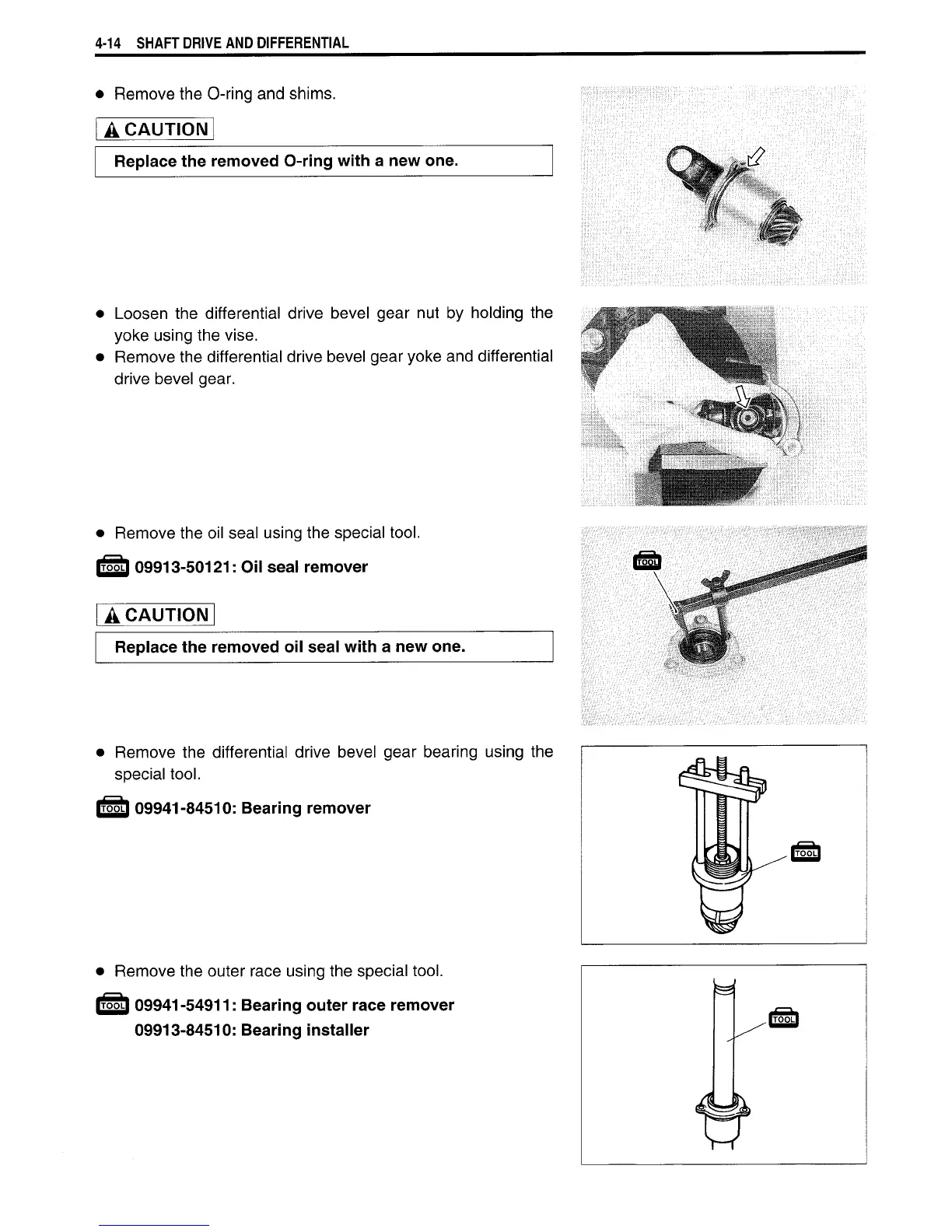

4-14 SHAFT DRIVE AND DIFFERENTIAL
• Remove the O-ring and shims.
A CAUTIOINT
Replace the removed O-ring with a new one.
• Loosen the differential drive bevel gear nut by holding the
yoke using the vise.
• Remove the differential drive bevel gear yoke and differential
drive bevel gear.
• Remove the oil seal using the special tool.
IT55LI 09913-50121: Oil seal remover
A CAUTION
Replace the removed oil seal with a new one.
• Remove the differential drive bevel gear bearing using the
special tool.
(^) 09941-84510: Bearing remover
• Remove the outer race using the special tool.
09941-54911: Bearing outer race remover
09913-84510: Bearing installer
