8C-4 INSTRUMENTATION/DRIVER INFORMATION

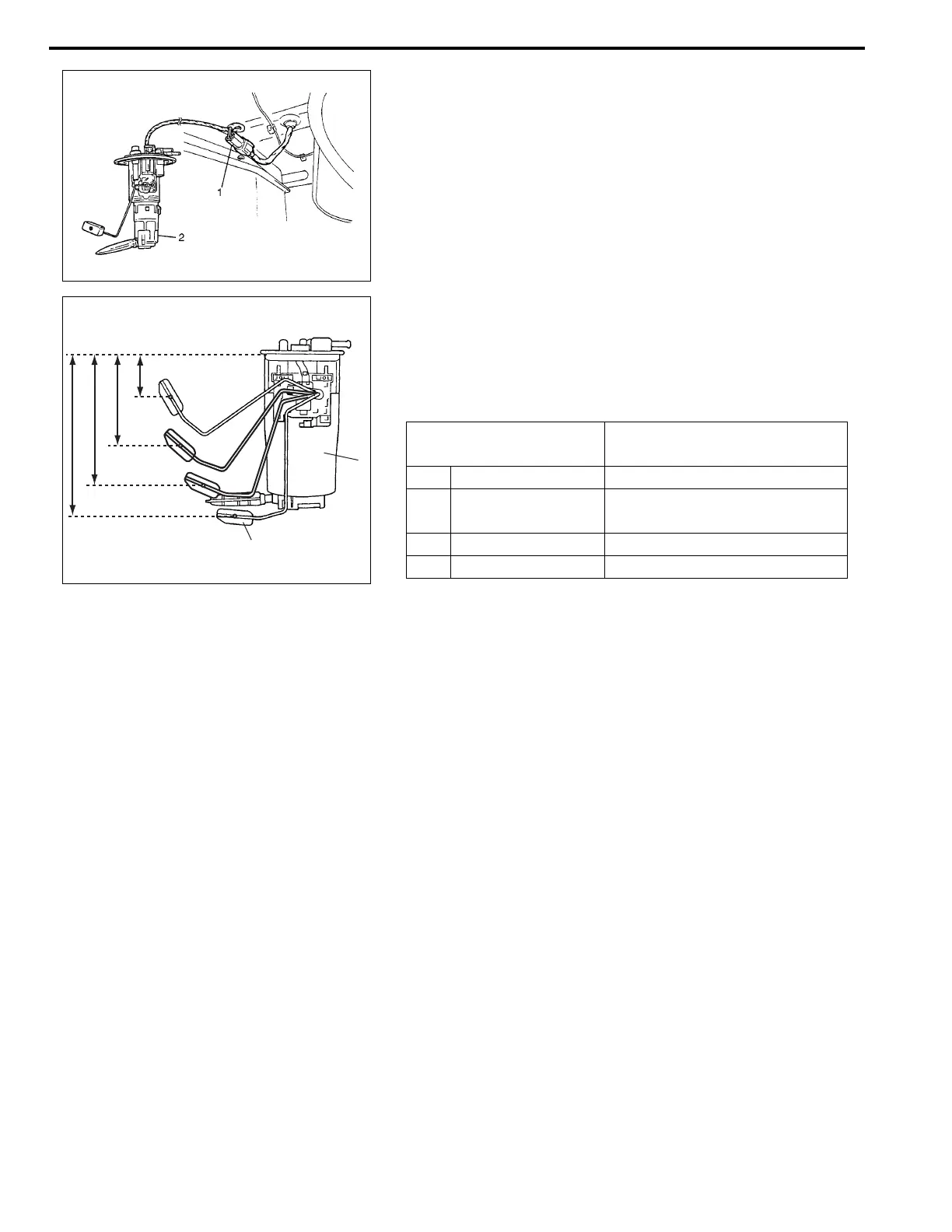

4) Connect fuel pump connector (1) to fuel pump (2).
5) Connect negative (-) cable to battery.
6) Turn ignition switch to ON position.
7) After 4 seconds, check for low fuel warning lamp operation
under the following each float position (1) of fuel pump (2).
If faulty condition is found, replace combination meter.
Low fuel warning light operation :
Float position Low fuel warning
light operation
“a” 140 mm (5.50 in.) OFF
“b” 125 mm (4.70 in.) OFF if low fuel warning light
ON or flashing once
“c” 150 mm (5.90 in.) ON
“d” 200 mm (7.90 in.) Flashing
2
1
“b”
“a”
“c”
“d”
