5E-32 ANTILOCK BRAKE SYSTEM (ABS)
ABS Hydraulic Unit/Control Module Assembly
HYDRAULIC UNIT INSPECTION
Check hydraulic unit for fluid leakage.
If any, repair or replace.
REMOVAL
1) Disconnect negative cable from battery.
2) For LH vehicle, remove air cleaner outlet pipe (1) referring to
“Engine Mechanical” section.
CAUTION:
Never disassemble ABS hydraulic unit/control module assembly, loosen blind plug or remove motor.
Performing any of these prohibited services will affect original performance of ABS hydraulic unit/
control module assembly.

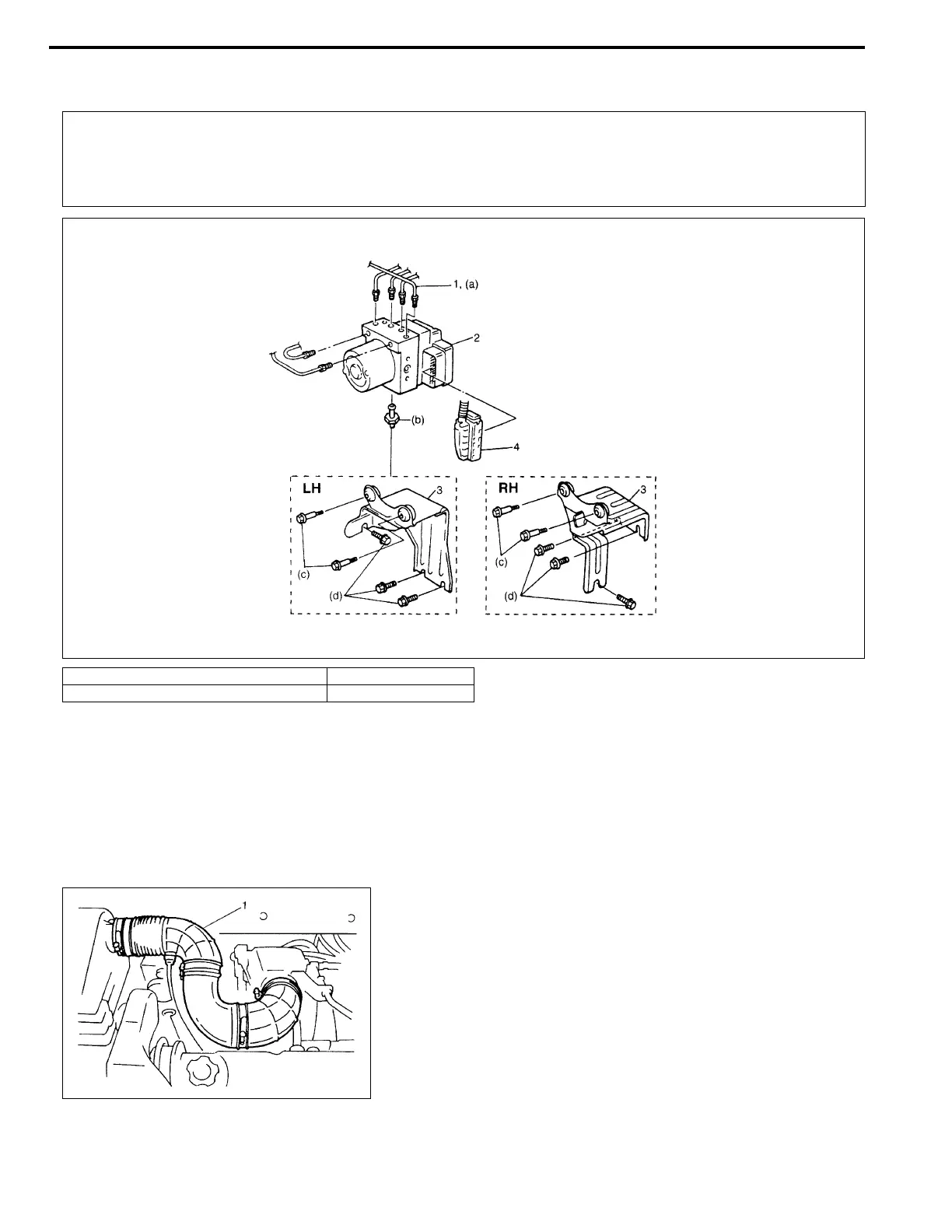

1. Brake pipe 3. Bracket
2. ABS hydraulic unit/control module assembly 4. Connector
