Suzuki Wagon R RB310 - On-Vehicle Service; Power Door Lock System (if Equipped); Power Door Lock System Component Location; Power Door Lock System Operation Inspection

WINDOWS, MIRRORS, SECURITY AND LOCKS 8D-3
On-Vehicle Service
Power Door Lock System (If Equipped)
Power door lock system component location
Power door lock system operation inspection
1) Check the following operation:
a) When the driver side key cylinder is turned LOCK once,
check all doors lock.
b) When the driver side door key cylinder is turned UNLOCK
twice, check all doors unlock.
Interior light does not
turn ON when doors are
unlocked by keyless
entry transmitter
Power door lock controller faulty Check system referring to KEY-
LESS ENTRY SYSTEM CIRCUIT
INSPECTION in this section.
Wiring or grounding faulty
Condition Possible Cause Correction

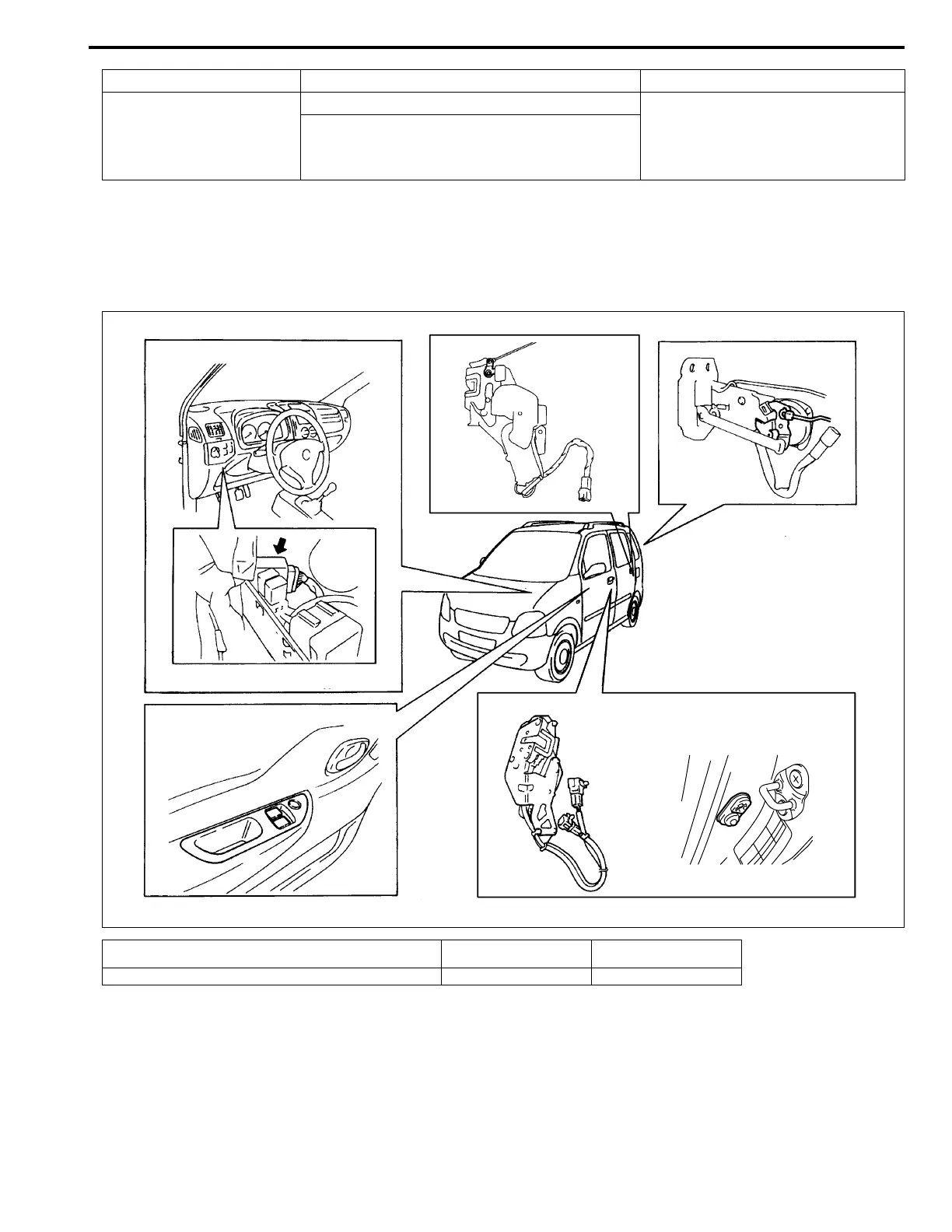

[A] : Power door lock controller (the illustration shows LH steering
vehicle. And RH steering vehicle is symmetrical.)
[C] : Front door actuator [E] : Rear door actuator
[B] : Power door lock switch [D] : Door switch [F] : Back door actuator
[A]
[B]
[C] [D]
[F]
[E]
