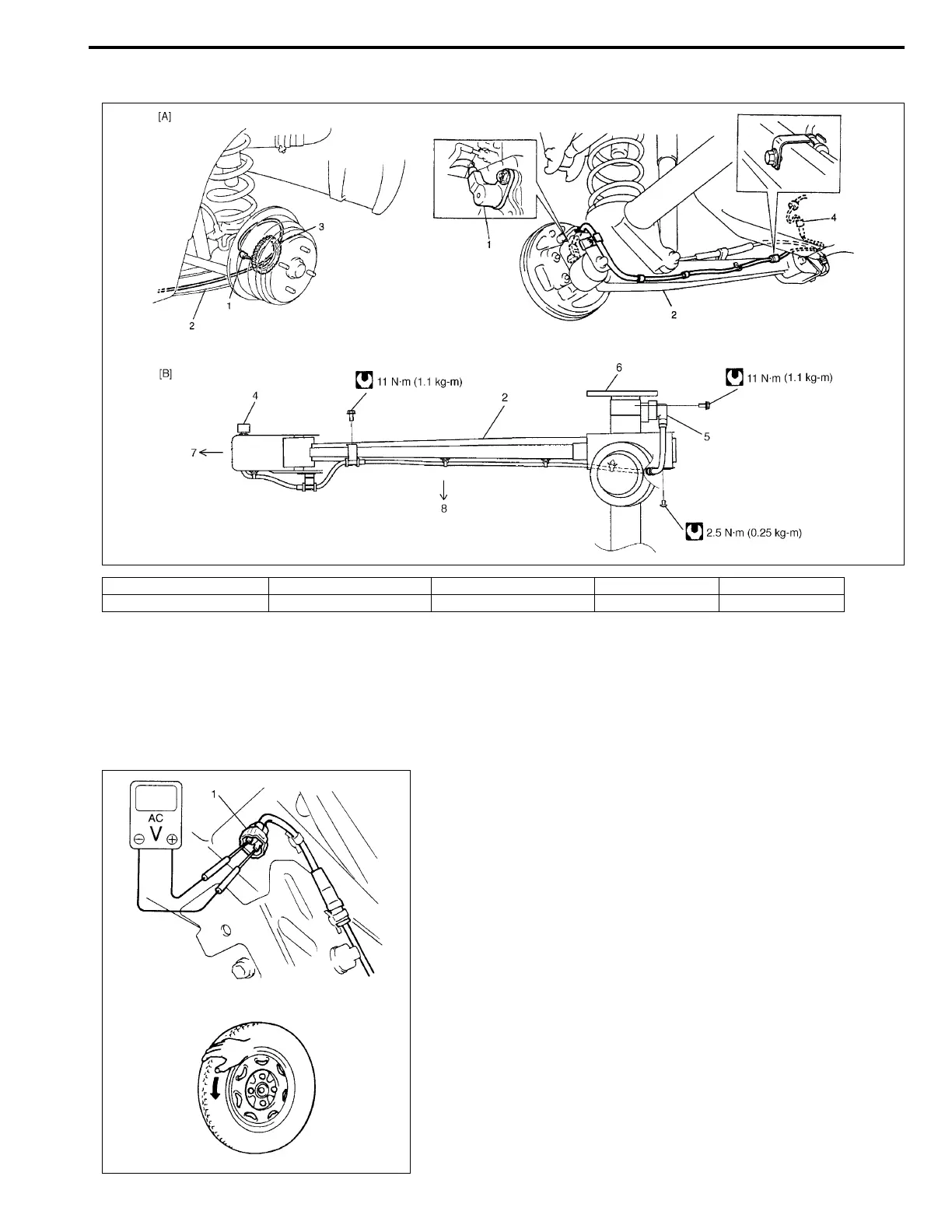

ANTILOCK BRAKE SYSTEM (ABS) 5E-37
Rear Wheel Speed Sensor
OUTPUT VOLTAGE INSPECTION
1) Turn ignition switch OFF.
2) Remove rear seat referring to Section 9.
3) Turn over floor carpet.
4) Hoist vehicle.
5) Disconnect connector of wheel speed sensor.
6) Connect voltmeter between connector (1) terminals.
7) While turning wheel at a speed of approximately 1/2 rotation
to 1 rotation per second, check AC voltage of sensor.
Output AC voltage at 1 to 1 1/3 rotation per second
100 mV or more
8) If measured voltage is not as specified, check sensor, rotor
and their installation conditions.
1. Left rear wheel sensor 3. Sensor ring 5. Right rear wheel sensor 7. Forward [A] : For 2WD
2. Trailing arm 4. Sensor coupler 6. Rear axle housing 8. Vehicle inside [B] : For 4WD
