5E-34 ANTILOCK BRAKE SYSTEM (ABS)
Front Wheel Speed Sensor
OUTPUT VOLTAGE INSPECTION
1) Turn ignition switch OFF.
2) Hoist vehicle a little.
3) Disconnect wheel speed sensor connector.
4) Disconnect wheel speed sensor grommet from vehicle body.
5) Connect voltmeter between connector (1) terminals.
6) While turning wheel by hand at a speed of approximately 1
full rotation to 1 1/3 rotation per second, check AC voltage of
sensor.
Output AC voltage at 1 to 1 1/3 rotation per second
: 100 mV or more
7) If measured voltage is not as specified, check sensor, rotor
and their installation conditions.

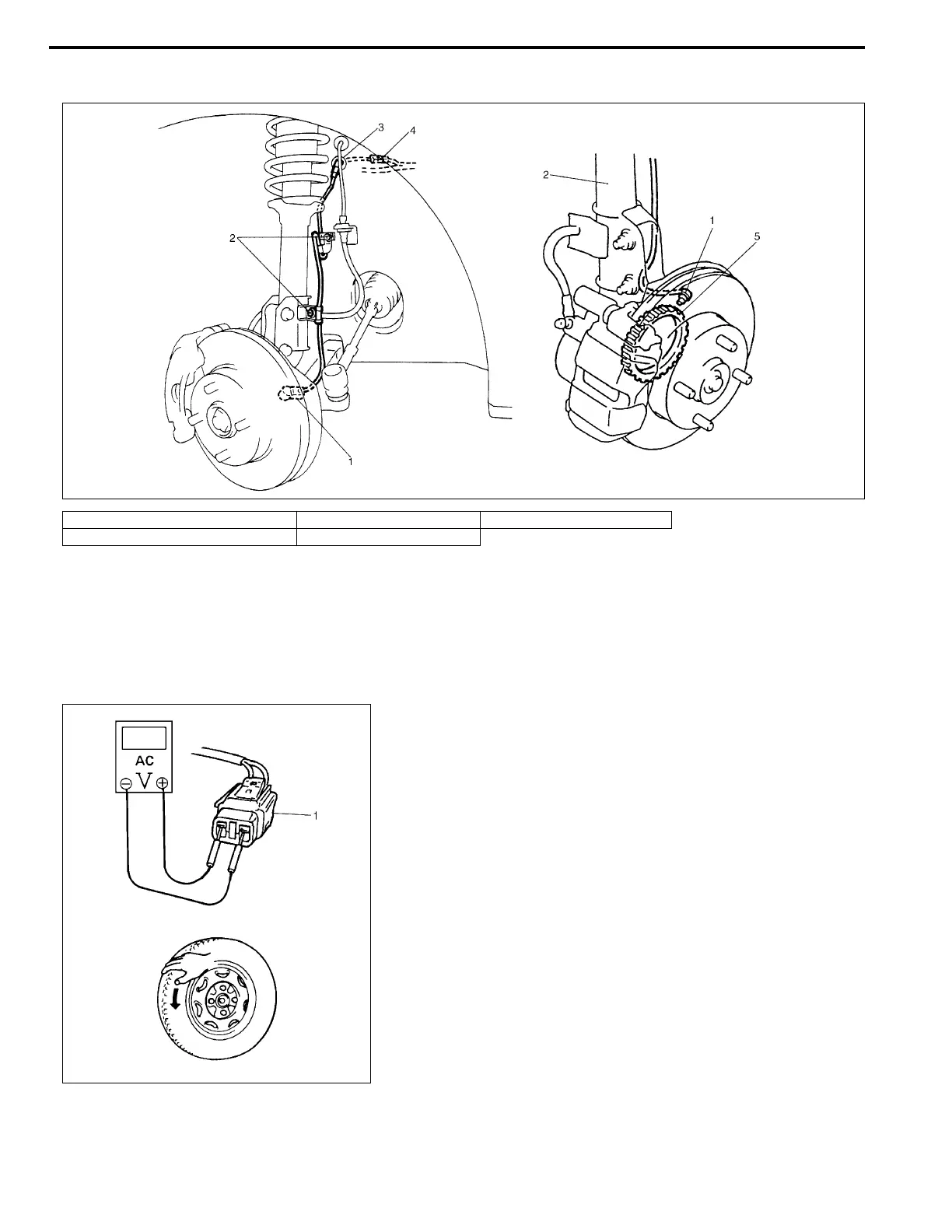

1. Left front wheel speed sensor 3. Grommet 5. Sensor ring
2. Clamp bolt 4. Connector
