10B-62 AIR BAG SYSTEM
Special tool
(A) : 09932-76010
(B) : 09932-75010
(C) : 09932-78310
DTC B1084 : Side Air Bag (Driver Side) Initiator Circuit Short to Power Circuit
DTC B1088 : Side Air Bag (Passenger Side) Initiator Circuit Short to Power Circuit

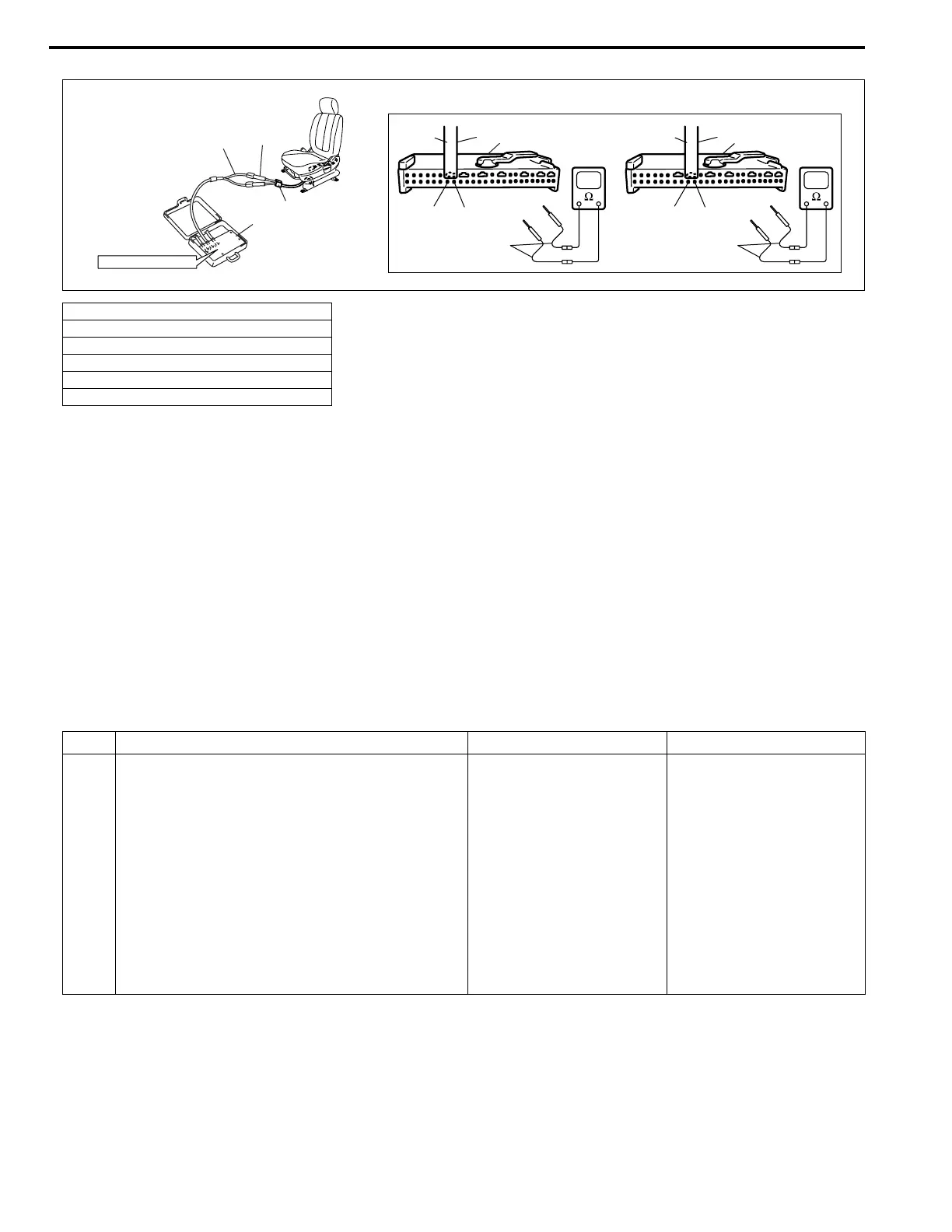

[A] : Fig. for STEP 1 and 2
[B] : Fig. for STEP 2
[C] : For DTC B1083
[D] : For DTC B1087
1. Release tool
2. SDM connector “G66”
“G69”, “G70”
STEERING WHEEL
(A)
(B)
(C)
[C] [D]
[A] [B]
(A)
(A)
“G66-20” “G66-21”
(A)
(A)
“G66-18”
“G66-19”
1
2
1
2
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble code (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) With ignition switch OFF, disconnect side air
bag (inflator) module connector “G69” or
“G70” under front seat cushion.
2) Check proper connection to applicable side
air bag (inflator) module at terminals in
“G69” or “G70” connector.
3) If OK, then connect Special Tools (B) and
(C) to side air bag (inflator) module connec-
tor disconnected at the step 1).
With ignition switch ON, is DTC B1084 or
B1088 still current?
Go to step 2. Ignition switch OFF.
Replace applicable front
seat referring to “FRONT
SEAT” in Section 9.
To Next Page
