Suzuki Wagon R RB310 - System Components and Wiring Location View and Connectors

10B-4 AIR BAG SYSTEM
System Components and Wiring Location View and Connectors
CONNECTOR “G65”
CONNECTOR “G74”
CONNECTOR “Q08”
CONNECTOR “G66”
CONNECTOR “G67“, “G72”
CONNECTOR “G69“, “G70”
CONNECTOR “G68“, “G71”
CONNECTOR “X01”
CONNECTOR
“X02”, “X03”
10
8
11
10
8
7
11
9
1
5
3
2
6
4

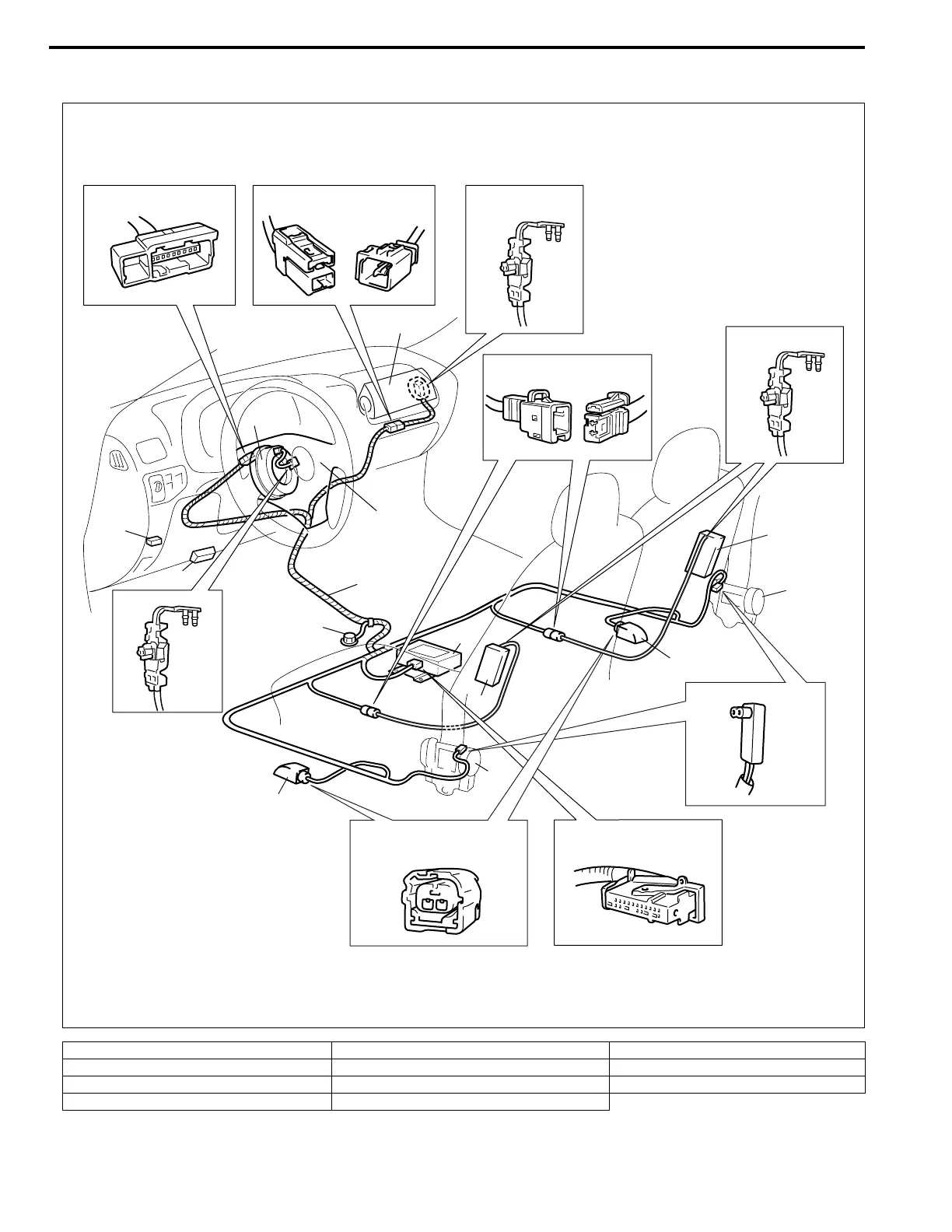

1. Air bag harness (in instrument panel harness) 5. Driver air bag (inflator) module 9. Ground for air bag system
2. “AIR BAG” fuse in circuit fuse box 6. Passenger air bag (inflator) module (if equipped) 10. Side air bag (inflator) module (if equipped)
3. DLC 7. SDM 11. Side Sensor (if equipped)
4. Contact coil assembly 8. Seat belt pretensioner (retractor assembly)
