AIR BAG SYSTEM 10B-77
INSTALLATION
For installation, reverse removal procedure nothing the following
points.
• Check none of the following conditions exists.
– Bend, scratch, deformity in vehicle body which SDM is
mounted.
– Foreign matters or rusts on mating surface of vehicle body
with SDM

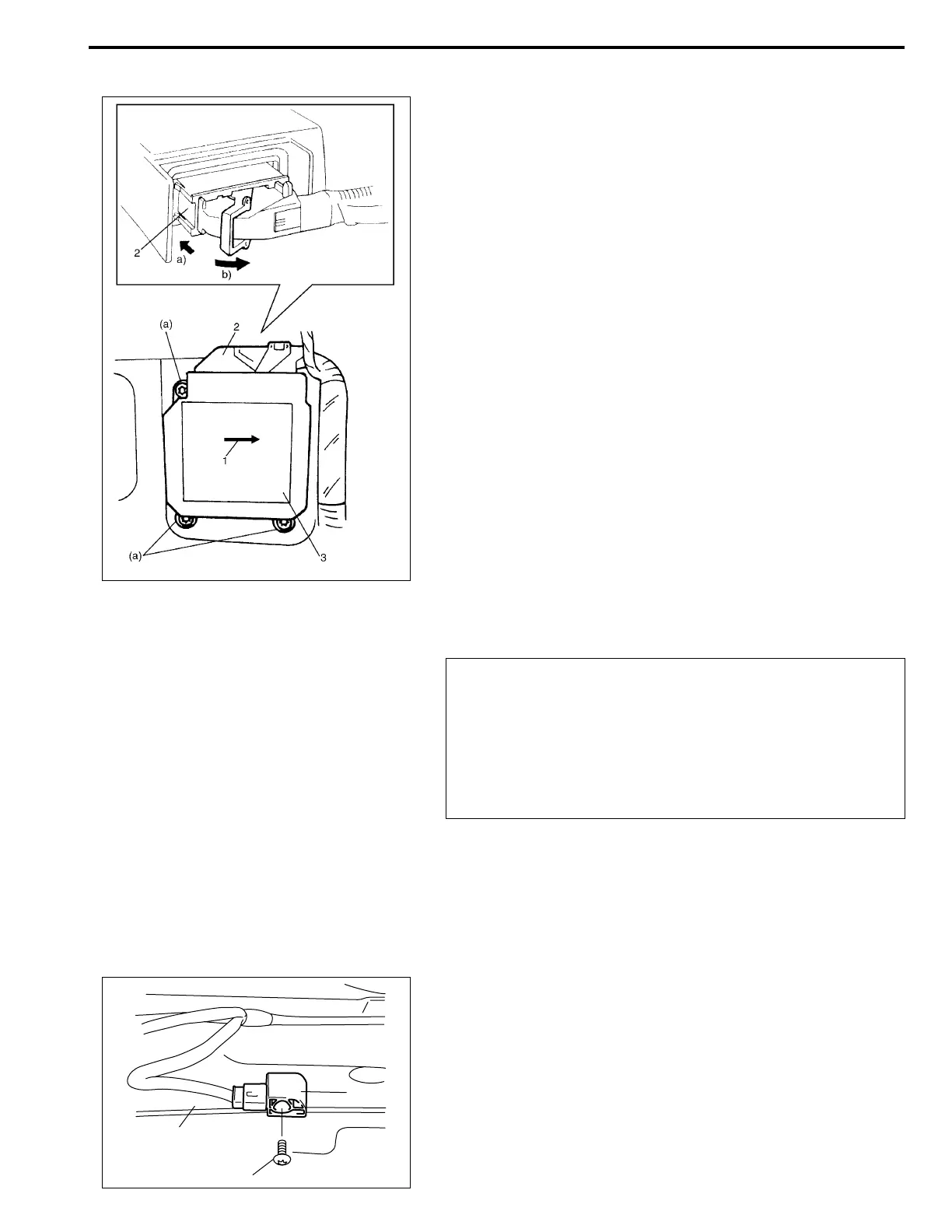

• Ensure that arrow (1) on the SDM (3) is pointing toward the
front of the vehicle.
• Tighten SDM bolts to specified torque.
Tightening torque
SDM mounting bolt (a) : 7 N·m (0.7 kg-m, 5.0 lb-ft)
• Connect SDM connector (2) to SDM (3) securely.
• Enable air bag system. Refer to “ENABLING AIR BAG SYS-
TEM” in this section.
Side Sensor (if equipped)
REMOVAL
1) Disconnect negative cable at battery.
2) Disable air bag system. Refer to “DISABLING AIR BAG
SYSTEM” in this section.
3) Remove center pillar lower trim and side sill scuff.
4) Turn up floor carpet at front seat side.
5) Remove side sensor bolt (1) and side sensor (2) from under
body (3).
WARNING:
During service procedures, be very careful when han-
dling a sensor.
• Never strike or jar a sensor.
• Under some circumstance, it could cause improper
operation of the air bag system. A sensor bolt must be
carefully torqued to assure proper operation.
1
3
2
