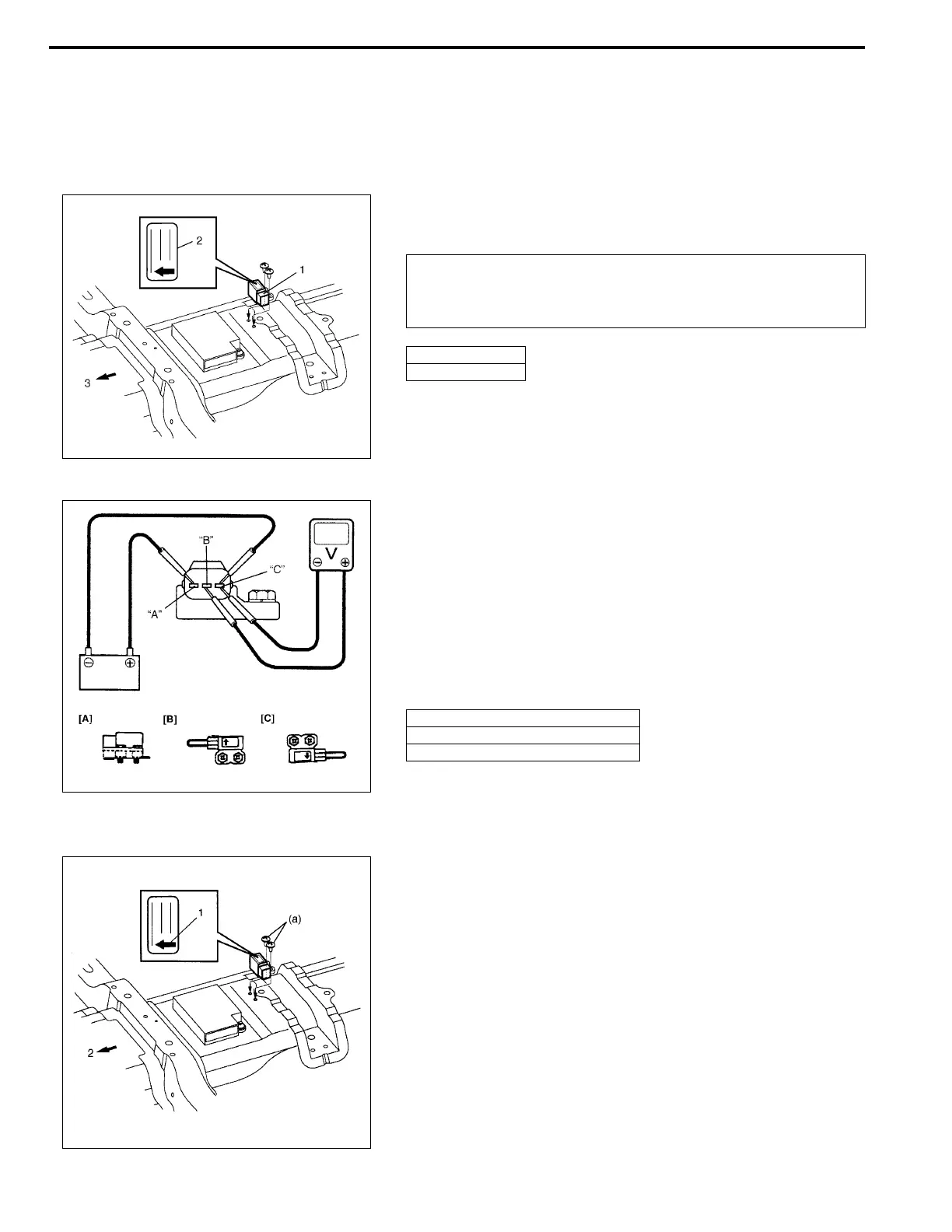

5E-40 ANTILOCK BRAKE SYSTEM (ABS)
G Sensor (For 4WD Vehicle Only)
REMOVAL
1) Turn ignition switch OFF and disconnect battery negative
cable.
2) Remove center console box.
3) Remove G sensor (1) from floor.
4) Disconnect connector from sensor.
INSPECTION
Connect positive cable of 12 volt battery to “A” terminal of sensor
and ground cable to “C” terminal. Then using voltmeter, check
voltage between “B” terminal and “C” terminal.
G sensor specification
When placed horizontally : 2 – 3 V
When placed upright with arrow upward : 3 – 4 V
When placed upright with arrow downward : 1 – 2 V
If measured voltage is not as specified, replace sensor.
INSTALLATION
1) Connect connector to sensor securely.
2) Install sensor onto floor so that arrow mark (1) directs vehicle
forward (2). Tighten bolts to specified torque.
Tightening torque
G sensor bolt (a) : 3.0 N·m (0.3 kg-m, 2.2 lb-ft)
3) Install rear console box.
4) Connect negative cable at battery.
CAUTION:
Sensor must not be dropped or shocked. It will affect its
original performance.
2. Label
3. Forward
[A] : Horizontal
[B] : Upright with arrow upward
[C] : Upright with arrow downward
