10B-82 AIR BAG SYSTEM
Side Air Bag (Inflator) Module (If Equipped)
INSPECTION
Check air bag (inflator) module appearance visually for following
symptoms and if any one of them is applicable, replace with a
new seat back, referring to “FRONT SEAT” in Section 9.
• Air bag has deployed.
• There is a bend or damage in front seat back.
• Wire harness or connector is damaged or tightness.
Driver Air Bag (Inflator) Module
Refer to “DRIVER AIR BAG (INFLATOR) MODULE” in Section 3C
for removal, inspection and installation.
Contact Coil and Combination Switch Assem-
bly
Refer to “CONTACT COIL AND COMBINATION SWITCH
ASSEMBLY” in Section 3C for removal, inspection and installa-
tion.
Seat Belt Pretensioner
Refer to “FRONT SEAT BELT WITH PRETENSIONER” in Section
10 for removal, inspection and installation.
WARNING:
• Never attempt to disassemble front seat back. It is impossible to remove side air bag (inflator) mod-
ule from front seat back. If any abnormality is found, be sure to replace front seat back with new one
as an assembly referring to “FRONT SEAT” in Section 9.
• Be sure to read “SERVICE PRECAUTIONS” before starting to work and observe every precaution
during work. Neglecting them may result in personal injury or undeployment of the air bag when
necessary.

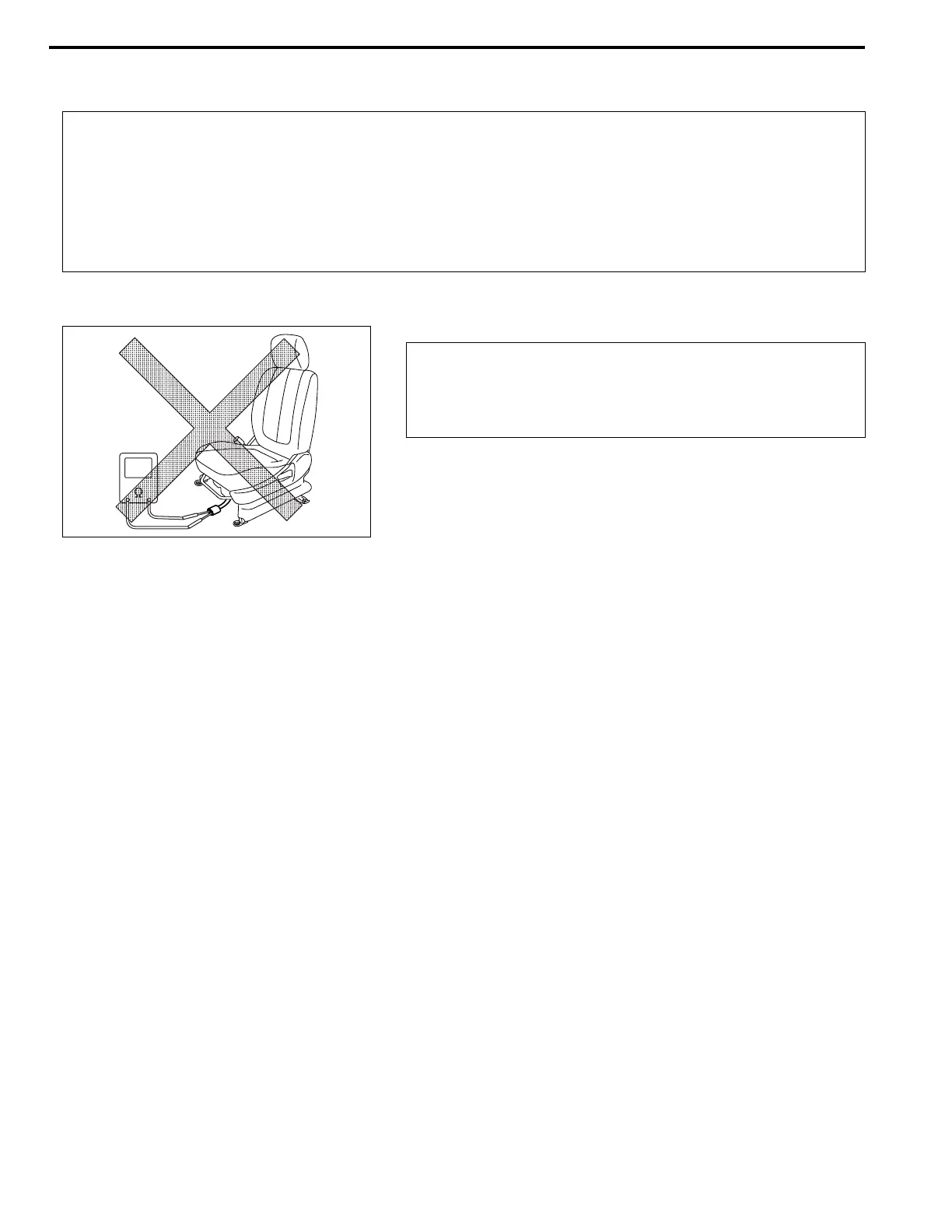

WARNING:
Never measure resistance of side air bag (inflator) mod-
ule or disassemble it. Otherwise personal injury may
result.
