AIR BAG SYSTEM 10B-81
INSTALLATION

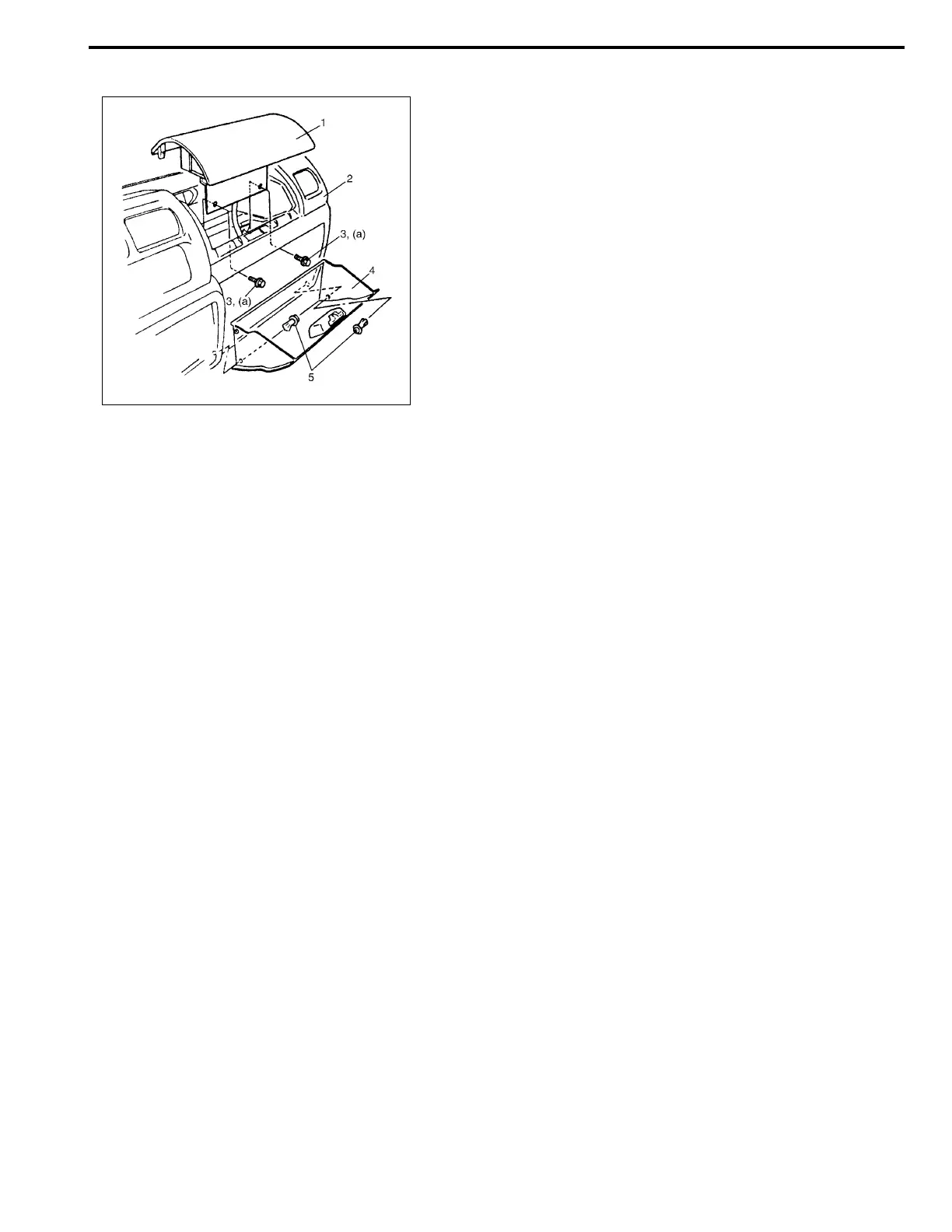

1) Install passenger air bag (inflator) module (1) to instrument
panel (2).
2) Tighten passenger air bag (inflator) module attaching bolts
(3) to specified torque.
Tightening torque
Passenger air bag (inflator) module mounting bolt
(a) : 23 N·m (2.3 kg-m, 16.5 lb-ft)
3) Set glove box (4) to original position of instrument panel (2)
and install clips (5).
4) Connect negative cable to battery.
5) Enable air bag system. Refer to “ENABLING AIR BAG SYS-
TEM” in this section.
