Suzuki Wagon R RB310 - Passenger Air Bag (Inflator) Module (if Equipped)

10B-80 AIR BAG SYSTEM
Passenger Air Bag (Inflator) Module (if equipped)

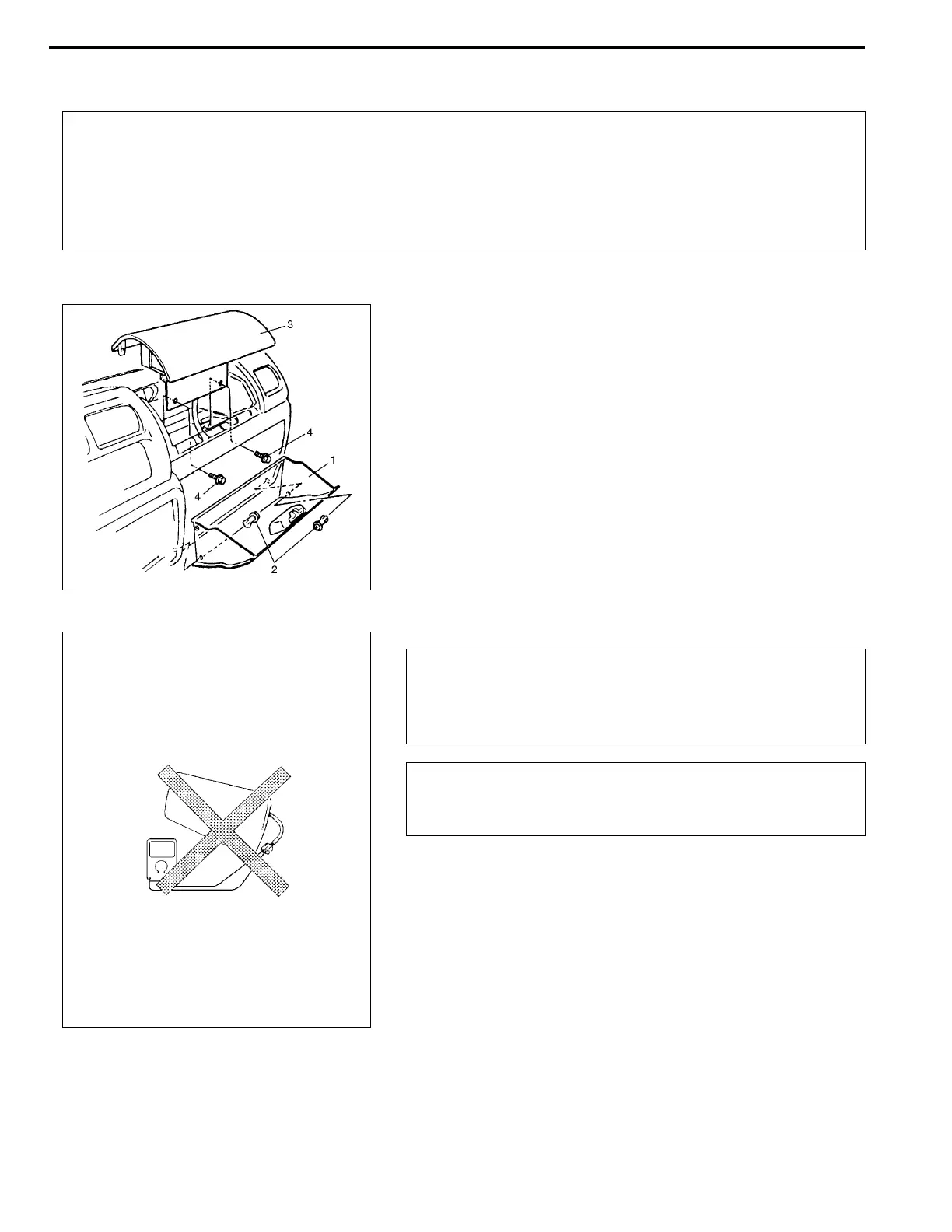

REMOVAL
1) Disconnect negative cable at battery.
2) Open glove box (1) and remove clips (2).
3) Press and unhook stoppers and then remove glove box (1).
4) Disable air bag system. Refer to “DISABLING AIR BAG
SYSTEM” in this section.
5) Remove passenger air bag (inflator) module attaching bolts
(4), and then remove passenger air bag (inflator) module (3)
from vehicle.
INSPECTION
Check air bag (inflator) module appearance visually for following
symptoms and if any one of them is applicable, replace with a
new one.
• Air bag has deployed.
• There is a crack in trim cover (pad surface).
• Wire harness or connector is damaged.
• Air bag (inflator) module is damaged or a strong impact was
applied to it.
WARNING:
• Never attempt to disassemble or repair the passenger air bag (inflator) module. If any abnormality is
found, be sure to replace it with new one as an assembly.
• Be sure to read “SERVICE PRECAUTIONS” before starting to work and observe every precaution
during work. Neglecting them may result in personal injury or undeployment of the air bag when
necessary.
WARNING:
Never measure resistance of passenger air bag (inflator)
module or disassemble it. Otherwise personal injury may
result.
CAUTION:
If air bag (Inflator) module was dropped from a height of
90 cm (3 ft) or more, it should be replaced.
