AIR BAG SYSTEM 10B-15
“AIR BAG” Warning Lamp Comes ON Steady
“AIR BAG” Warning Lamp Does Not Come ON
“AIR BAG” Warning Lamp Flashes

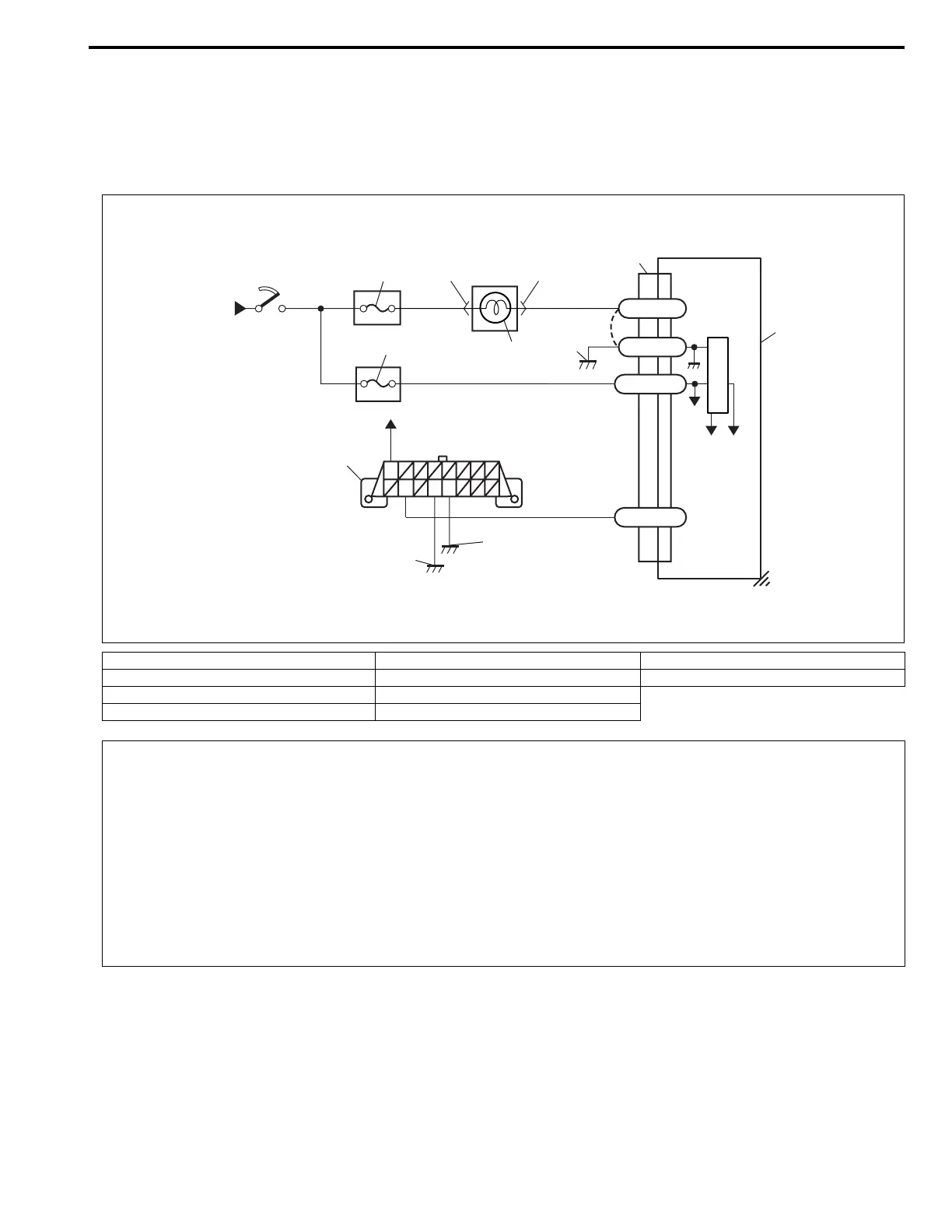

WIRING DIAGRAM
1. From main fuse 5. “AIR BAG” fuse 9. Ground for air bag system
2. Ignition switch 6. SDM 10. Ground on body
3. “METER” fuse 7. DLC
4. “AIR BAG” warning lamp in combination meter 8. Ground on engine block
GRN
GRN
BLK/RED
BLU
BLU/RED
+30V+5V
WHT/REDWHT/RED
BLK
“G66”
G66-30
G66-32
G66-28
G66-31
BLK
BRN
WHT/BLU
“G25” “G25”
1
2
3
5
4
9
7
8
10
6
1
CAUTION:
• Be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK before starting diagnosis according to
flow table.
• When measurement of resistance or voltage is required in this table, use a specified digital multim-
eter (refer to SPECIAL TOOL in this section.) along with a correct terminal adapter from special tool
(Connector test adapter kit).
• When a check for proper connection is required, refer to INTERMITTENTS AND POOR CONNEC-
TIONS in this section.
• If there is open circuit in the air bag wire harness (in instrument panel harness), connector or termi-
nal is found damaged, replace the wire harness, connector and terminal as an assembly.
To Next Page
