10B-18 AIR BAG SYSTEM
Special tool
(A) : 09932-76010
“AIR BAG” Warning Lamp Flashes
(A)
(A)
“G66-30”
[B]
1
[A]
“G25-13”
“G66-30”
2
1

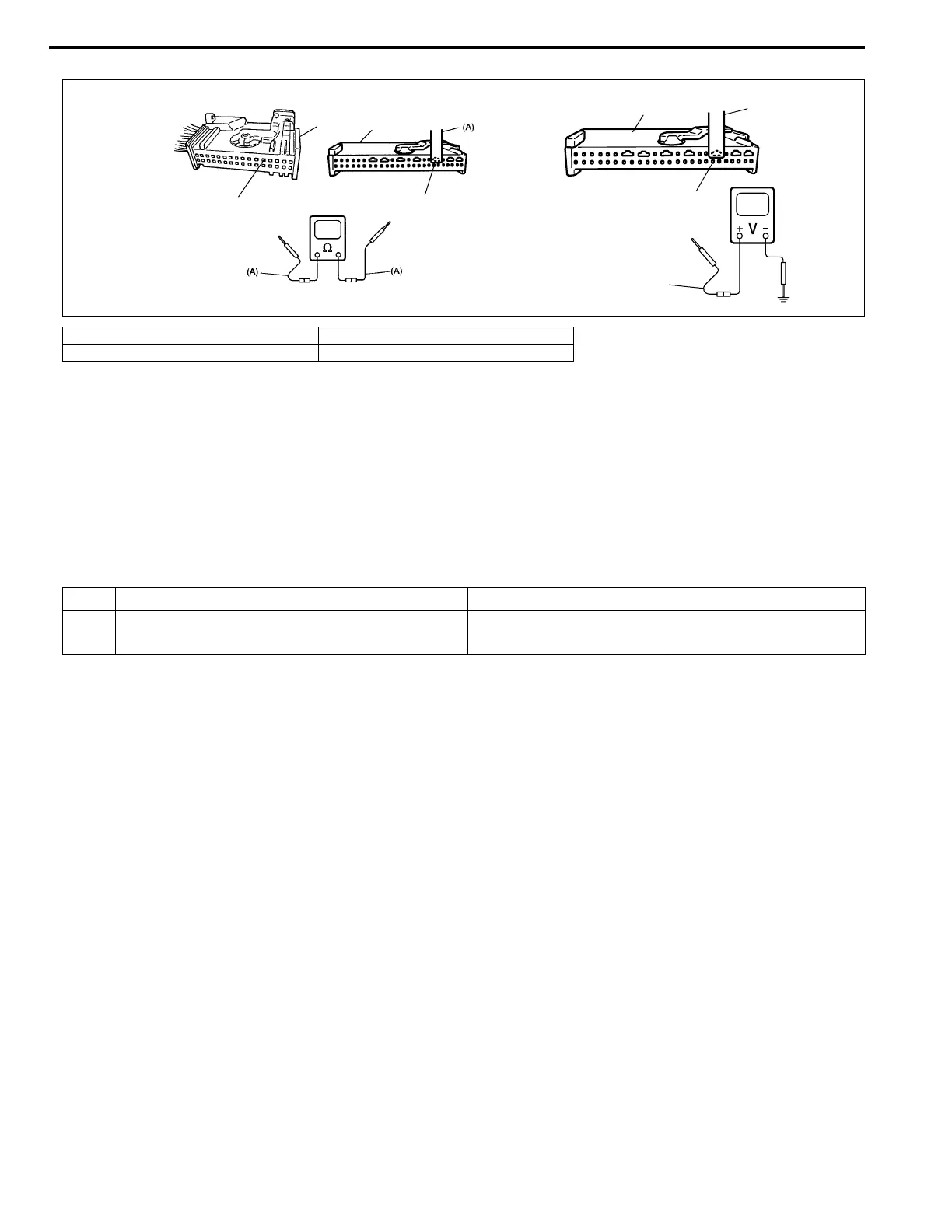

[A] : Fig. for Step 3 1. SDM connector “G66”
[B] : Fig. for Step 4 2. “G25” connector for combination meter
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) Check “G66-8” terminal of SDM.
Is it shorted to ground terminal or harness?
Clean up terminal. Substitute a known-good
SDM.
NOTE:
Upon completion of inspection and repair work, perform following the items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
