AIR BAG SYSTEM 10B-23
DIAGNOSTIC FLOW TABLE
DTC B1015 : Passenger Air Bag Initiator Circuit Resistance High
Special tool
(A) : 09932-76010
(B) : 09932-75010
Step Action Yes No
1 1) With ignition switch OFF, disconnect passenger air
bag (inflator) module connector “G74” behind the
glove box.
2) Check proper connection to passenger air bag (infla-
tor) module at terminals in “G74” connector.
3) If OK, then connect Special Tool (B) to passenger air
bag (inflator) module connector “G74” disconnected
at the step 1).
With ignition switch ON, is DTC B1015 current?
Go to step 2. Ignition switch OFF.
Replace passenger air
bag (inflator) module
(Refer to PASSENGER
AIR BAG (INFLATOR)
MODULE in this sec-
tion).
2 1) With ignition switch OFF, disconnect SDM connector
“G66”.
2) Check proper connection to SDM connector “G66“ at
terminals “G66-24” and “G66-23”.
3) If OK, release shorting bar in SDM connector insert-
ing release tool (1) included in special tool (A).
4) Measure resistance between “G66-24” and “G66-23”
terminals with Special Tool (B) connected to “G74”
connector.
Is resistance 3.8 Ω or less?
Substitute a
known-good SDM
and recheck.
Repair high resistance
or open in “YEL/RED” or
“YEL” wire circuit.

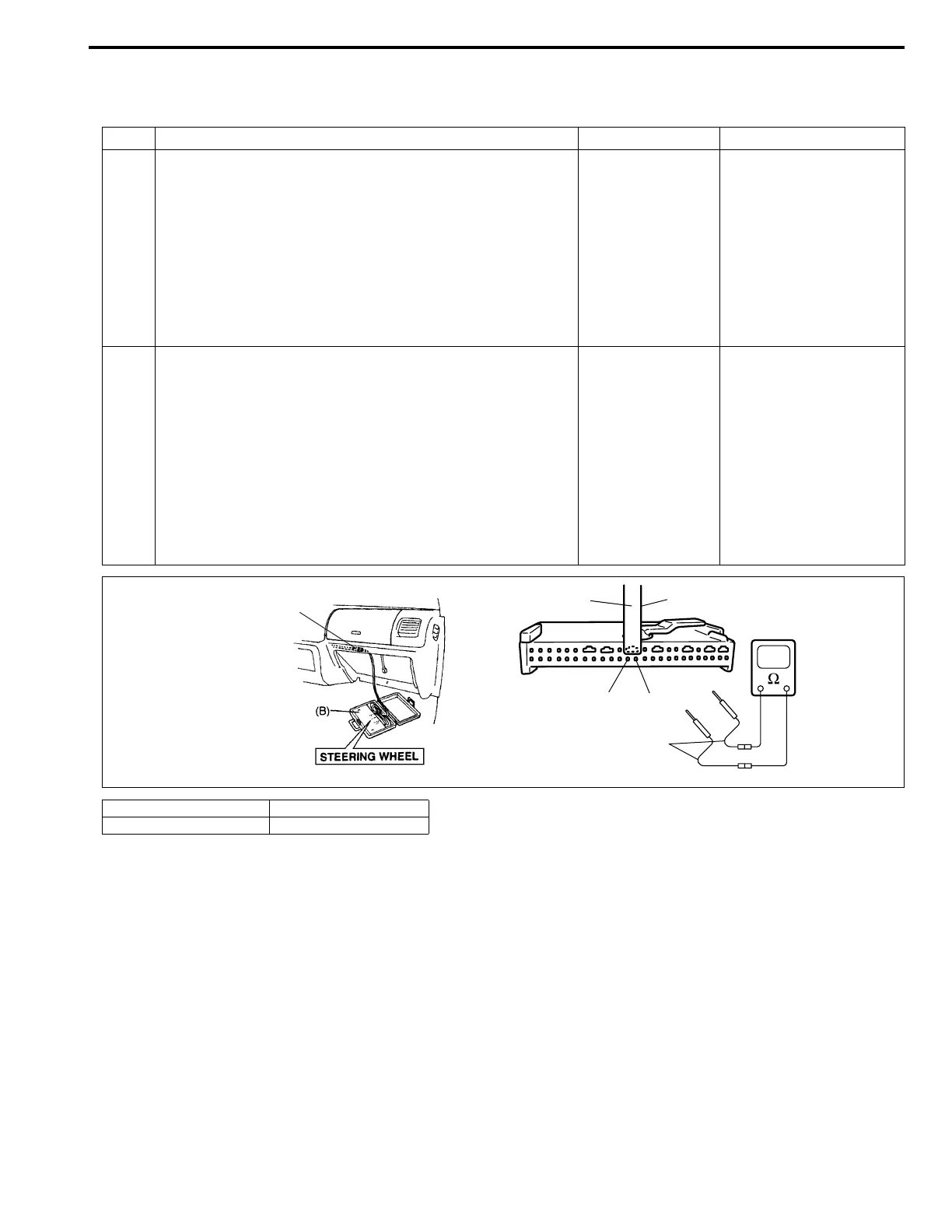

[A] : Fig. for STEP 1 and 2 1. Release tool
[B] : Fig. for STEP 2 2. SDM connector “G66”
[A]
(A)
(A)
“G66-23” “G66-24”
[B]
1
“G74”
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
