Suzuki Wagon R RB310 - Page 184

AIR BAG SYSTEM 10B-31
Special tool
(A) : 09932-76010
(B) : 09932-75010
(C) : 09932-78310
DTC B1025 : Driver Air Bag Initiator Circuit Short to Power Circuit
3 1) With ignition switch OFF, disconnect Special Tools
(B) and (C) from “G65” connector, then reconnect
contact coil connector “G65” as it was.
2) Remove driver air bag (inflator) module from steer-
ing wheel (Refer to DRIVER AIR BAG (INFLATOR)
MODULE in Section 3C).
3) Check proper connection to driver air bag (inflator)
module at terminals in “Q08” connector.
4) If OK, then connect Special Tools (B) and (C) to
“Q08” connector.
With ignition switch ON, is DTC B1024 current?
Ignition switch OFF.
Replace contact coil
assembly (Refer to
COMBINATION
SWITCH/CONTACT
COIL AND COMBI-
NATION SWITCH
ASSEMBLY in Sec-
tion 3).
Ignition switch OFF.
Replace driver air bag
(inflator) module
(Refer to DRIVER AIR
BAG (INFLATOR)
MODULE in Section
3).

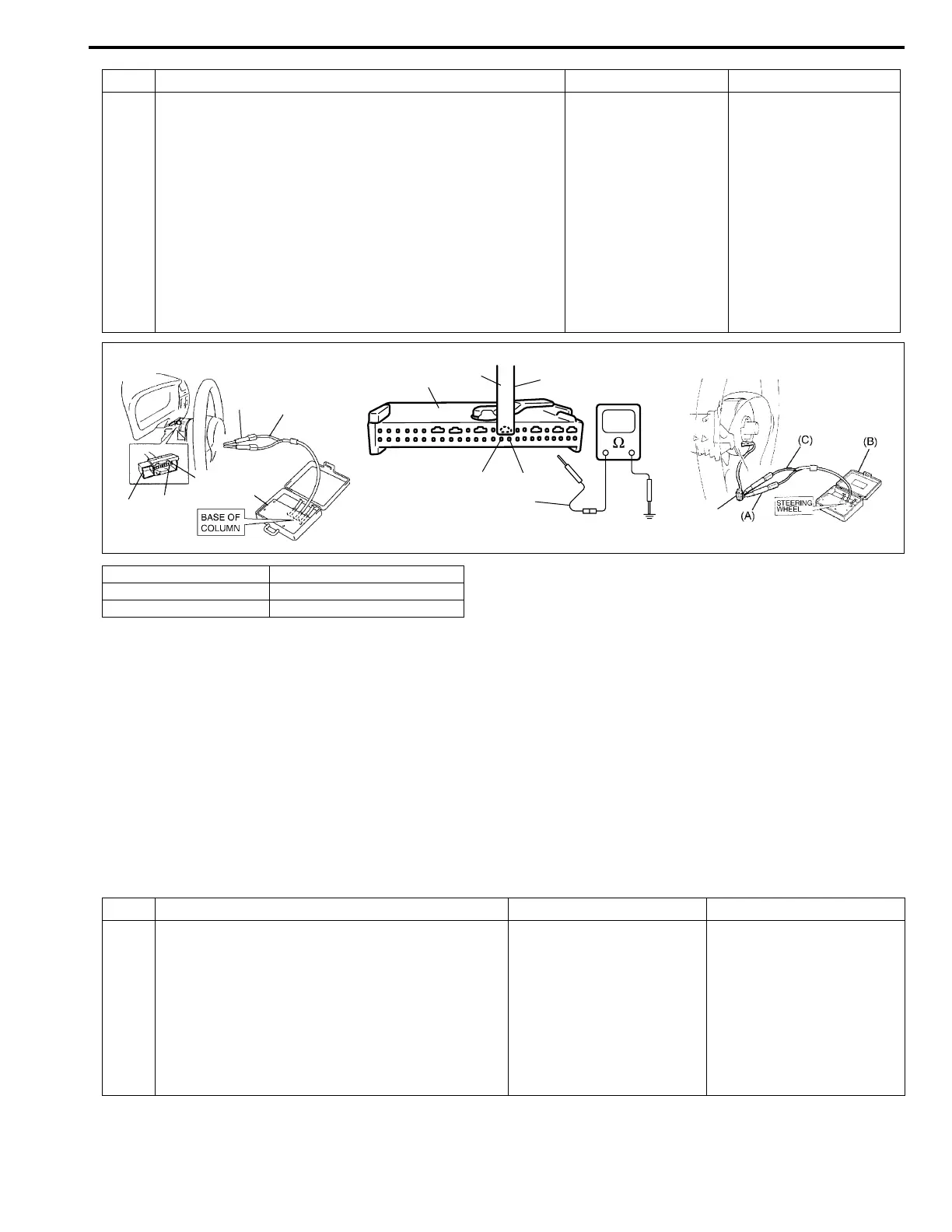

[A] : Fig. for STEP 1 and 2 1. Release tool
[B] : Fig. for STEP 2 2. SDM connector “G66”
[C] : Fig. for STEP 3 3. Contact coil connector “G65”
Step Action Yes No
(A)
“G66-26” “G66-27”
[B][A] [C]
(A)
“GRN”
(B)
(A)
(C)
“Q08”
2
1
“GRN/RED”
3
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) With ignition switch OFF, disconnect contact
coil connector “G65” behind steering wheel.
2) Check proper connection to contact coil at
terminals in “G65” connector.
3) If OK, then connect Special Tools (B) and
(C) to contact coil connector “G65” discon-
nected at step 1).
With ignition switch ON, is DTC B1025 current?
Go to step 2. Go to step 3.
