AIR BAG SYSTEM 10B-41
Special tool
(A) : 09932-76010
(B) : 09932-75010
(C) : 09932-78310
DTC B1044 : Driver Pretensioner Initiator Circuit Short to Power Circuit
DTC B1048 : Passenger Pretensioner Initiator Circuit Short to Power Circuit

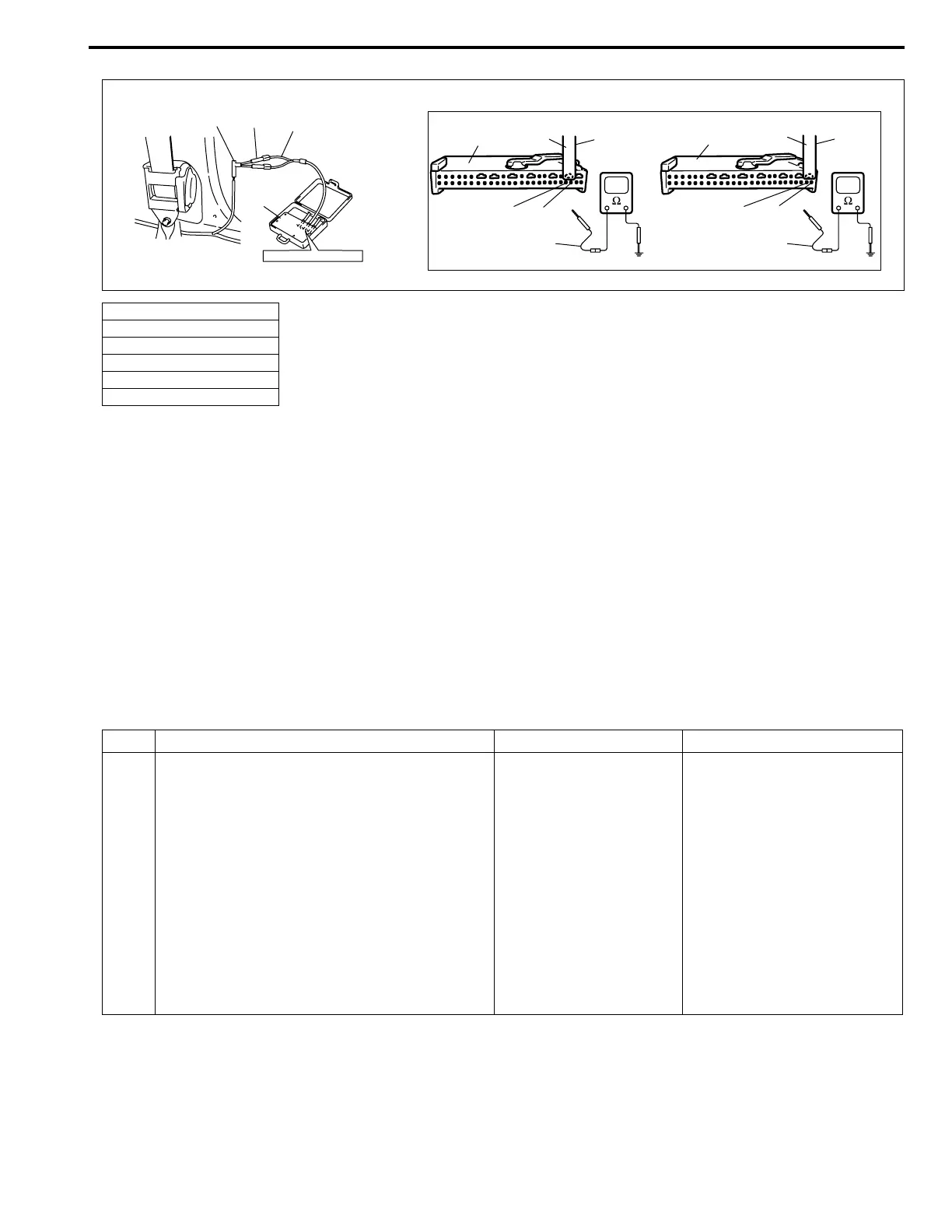

[A] : Fig. for STEP 1 and 2
[B] : Fig. for STEP 2
[C] : For DTC B1043
[D] : For DTC B1047
1. Release tool
2. SDM connector
[C] [D]
[A] [B]
“G67”, “G72”
(A)
(B)
(C)
STEERING WHEEL
(A)
“G66-33”
“G66-34”
(A)
“G66-35”
“G66-36”
(A)
(A)
2
1
2
1
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) With ignition switch OFF, remove center
pillar lower garnish of applicable side then
disconnect seat belt pretensioner connec-
tor “G67” or “G72”.
2) Check proper connection to applicable
seat belt pretensioner at terminals in
“G67” or “G72” connector.
3) If OK, then connect Special Tools (A), (B)
and (C) to seat belt pretensioner connec-
tor disconnected at the step 1).
With ignition switch ON, is DTC B1044 or
B1048 still current?
Go to step 2. Ignition switch OFF.
Replace seat belt preten-
sioner (Refer to Front Seat
Belt in Section 10).
To Next Page
