10B-56 AIR BAG SYSTEM
Special tool
(A) : 09932-76010

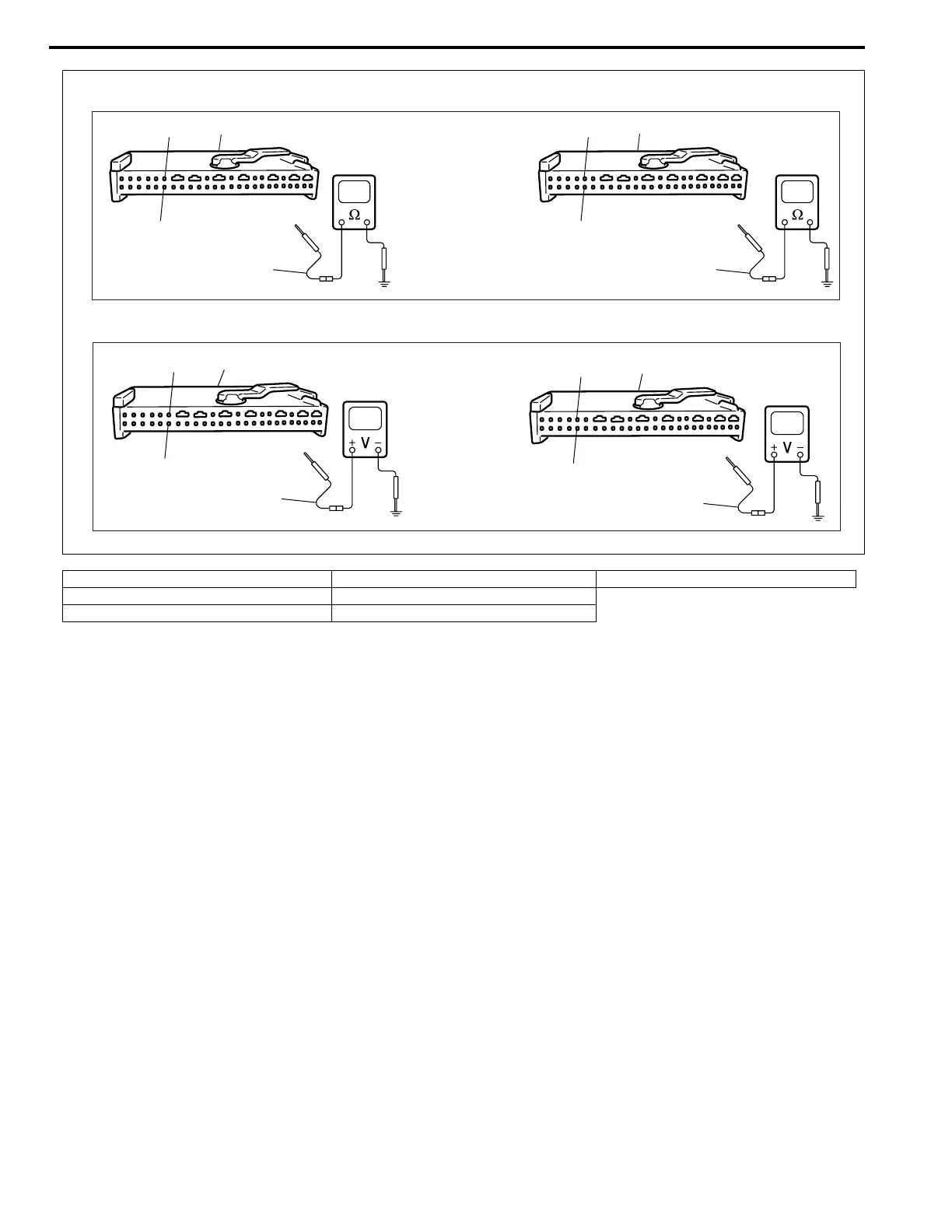

[A] : Fig. for STEP 1 [D] : Fig. for STEP 4 1. SDM connector “G66”
[B] : Fig. for STEP 2 [E] : For DTC B1073
[C] : Fig. for STEP 3 [F] : For DTC B1075
“G66-6”
“G66-17”
“G66-5”
“G66-16”
(A)
(A)
[E]
[D]
[F]
1
1
[C]
[E]
“G66-6”
“G66-17”
[F]
“G66-5”
“G66-16”
(A) (A)
1
1
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble code (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
