AIR BAG SYSTEM 10B-59
Special tool
(A) : 09932-76010
(B) : 09932-75010
(C) : 09932-78310
2 1) With ignition switch OFF, disconnect SDM
connector “G66”.
2) Check proper connection to SDM at termi-
nals “G66-19” and “G66-18” or “G66-20”
and “G66-21”.
3) If OK, release shorting bar in SDM connec-
tor inserting release tool (1) included in spe-
cial tool (A).
4) Measure resistance with connected Special
Tools (A), (B) and (C) to applicable side air
bag in “G69” or “G70” connector.
• DTC B1081 : between “G66-19” and
“G66-18” terminals.
• DTC B1085 : between “G66-20” and
“G66-21” terminals.
Is resistance 2.6 Ω or less?
Substitute a known-good
SDM and recheck.
DTC B1081 :
Repair high resistance or
open in “WHT/RED” or
“WHT/GRN” wire circuit.
DTC B1085 :
Repair high resistance or
open in “RED/BLK” or
“RED/YEL” wire circuit.
Step Action Yes No
“G69”, “G70”
STEERING WHEEL
(A)
(B)
(C)
[C] [D]
[A] [B]
(A)
(A)
“G66-20”
“G660-21”
(A)
(A)
“G66-18”
“G66-19”
1
2
1
2

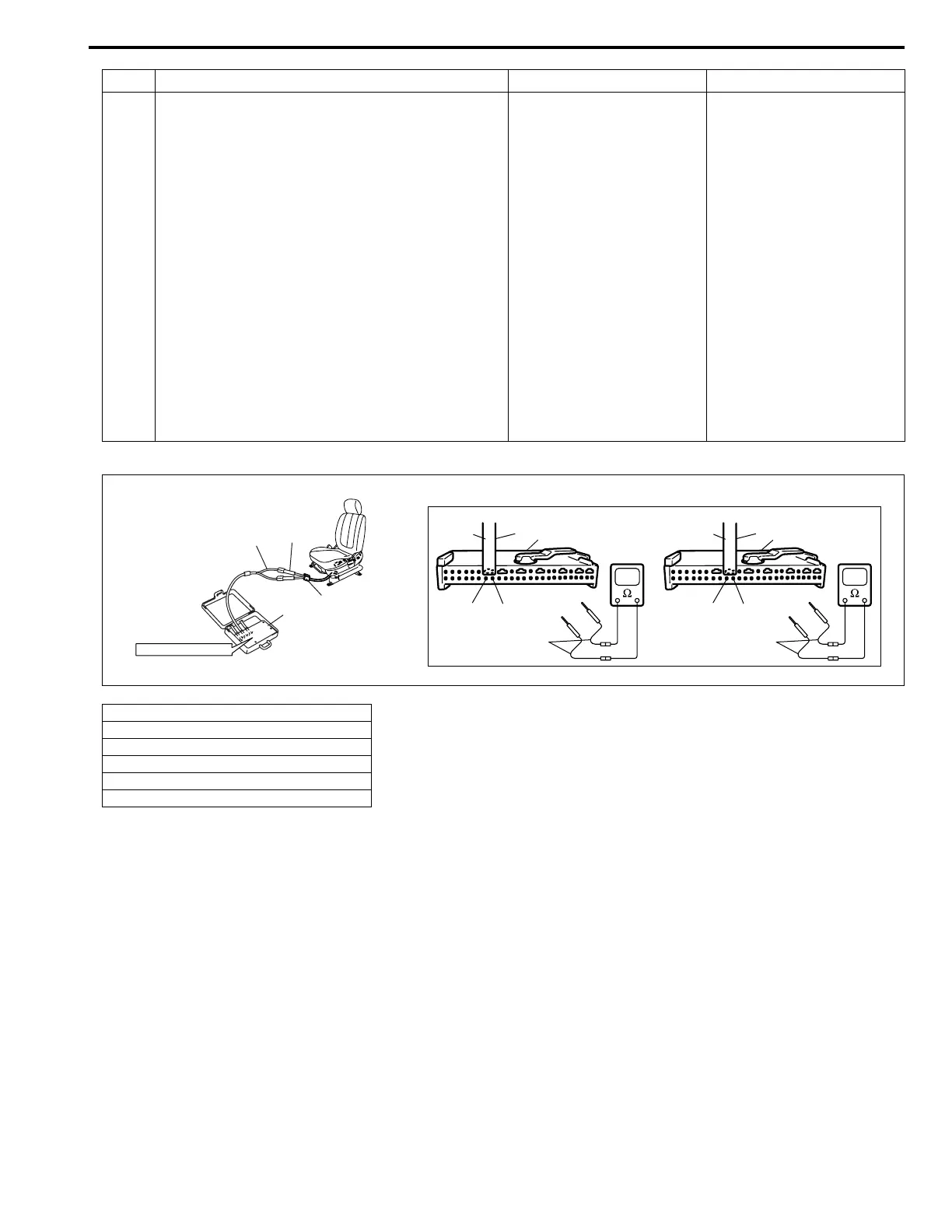

[A] : Fig. for STEP 1 and 2
[B] : Fig. for STEP 2
[C] : For DTC B1081
[D] : For DTC B1085
1. Release tool
2. SDM connector “G66”
NOTE:
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear diagnostic trouble code (Refer to DTC CLEARANCE), if any.
• Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
