AIR BAG SYSTEM 10B-93
7) Connect deployment harness (A) and/or adapter cable (B) to
air bag (inflator) module or seat belt pretensioner as follows.
Special tool
(A) : 09932-75030
(B) : 09932-78320
• For driver air bag (inflator) module
Connect adapter cable (B) to deployment harness (A) and
lock connectors with lock slider.
Connect adapter cable (B) in series with deployment har-
ness (A) to contact coil connector (1) located behind steering
wheel.
• For passenger air bag (inflator) module
Connect deployment harness (A) to passenger air bag (infla-
tor) module connector (2) till click can be heard.
• For seat belt pretensioner
Connect adapter cable (B) to deployment harness (A) and
lock connectors with lock slider.
Connect adapter cable (B) in series with deployment har-
ness (A) to seat belt pretensioner (3).
• For side air bag (inflator) module
Connect adapter cable (B) to deployment harness (A) and
lock connector with lock lever.
Connect adapter cable (B) in series with deployment har-
ness (A) to side air bag (inflator) module (4).

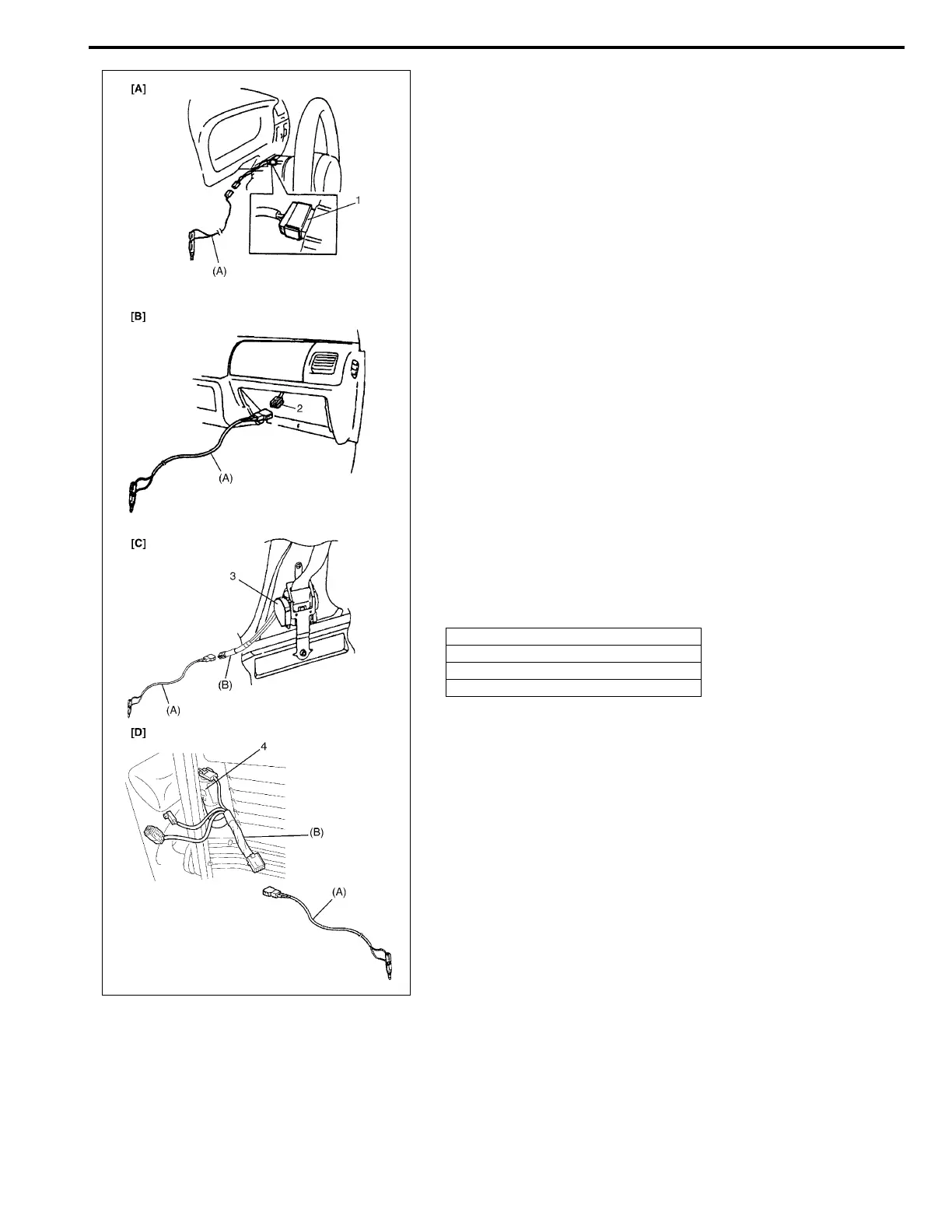

[A] : For driver air bag (inflator) module
[B] : For passenger air bag (inflator) module
[C] : For seat belt pretensioner
[D] : For side air bag module
