11. Crankshaft / Crankcase
11-7

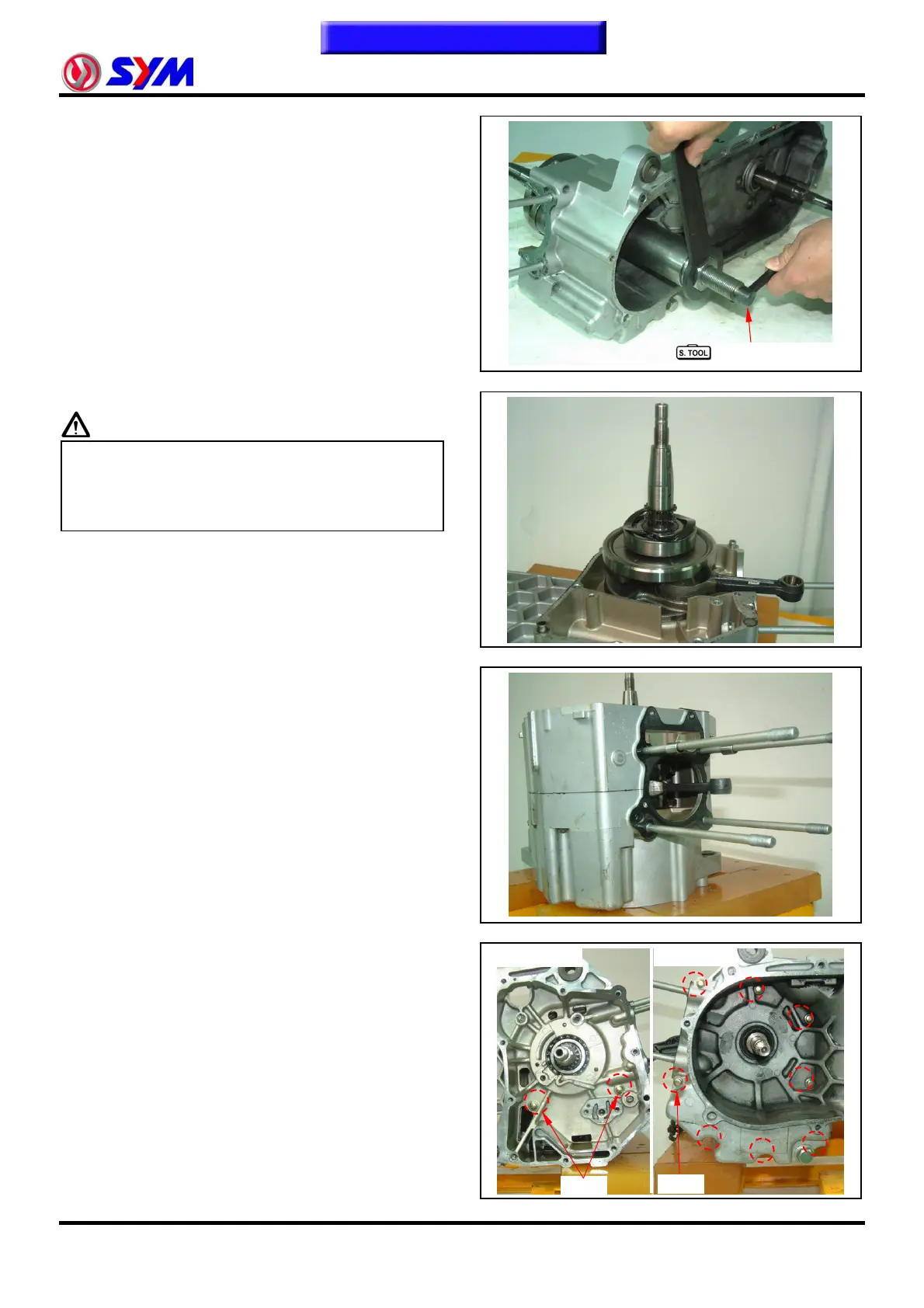

Hold left crank shaft puller, and turn the shaft
puller nut by clutch nut wrench to pull in crank
shaft into left crankcase.
Put wave washer onto right crank bearing.
Caution
y Right flank the wave washer piece certainly
must install. Cannot install the wrong position
or leak the attire. Otherwise can cause the
motorcycle to have the fierce vibration
Install 2 dowel pins and new gasket.
Install the right crankcase onto the left crankcase
Tighten 8 bolts on the left crankcase.
Tighten 2 bolts on the left crankcase.
Torque value: 0.8~1.2kgf-m
2 bolts
R. crankcase L. crankcase
8 bolts
Crank shaft puller
