sonnel that additional cooling may be required in order to continue marking operation.
Important Note: When the Switch IO Output 7 property is set to Yes, output OUT7 is inhibited from
operating as a standard output. Output OUT7 will not activate when commanded
by standard WinMark Pro automation or Digital Scope.
In order to setup Fenix Flyer’s over-temperature warning output, perform the following steps:
1
In WinMark Pro, click the Tools menu, click General Settings… , and then click the “Device” tab.
2
Scroll down the property list until you nd the Switch IO Output 7 property.
3
Click the Switch IO Output 7 property and click the arrow button on the right-hand side to display
the drop-down list.
4
In the drop-down list, choose Yes. When the Switch IO Output 7 property is Yes, output OUT7
activates to indicate that power amp air temperatures are at or above 65 °C and additional cooling is
required.
The activation of output OUT7_A occurs when the color-coded Status indicator in the About Synrad
WinMark… dialog box transitions from green to yellow, which indicates power amp air temperatures
are at or above 65 °C.
5
Wire OUT7_A and OUT2–OUT7_B on the DB-25 User Interface connector so that when activated,
OUT7_A provides an input to an automation controller or signals maintenance personnel that ad-
ditional cooling may be required. Refer to the Input/output circuitry section earlier in this chapter for
information on wiring input devices to FH Flyer outputs.
Custom test mark feature
The Custom test mark feature section includes subsections:
Overview

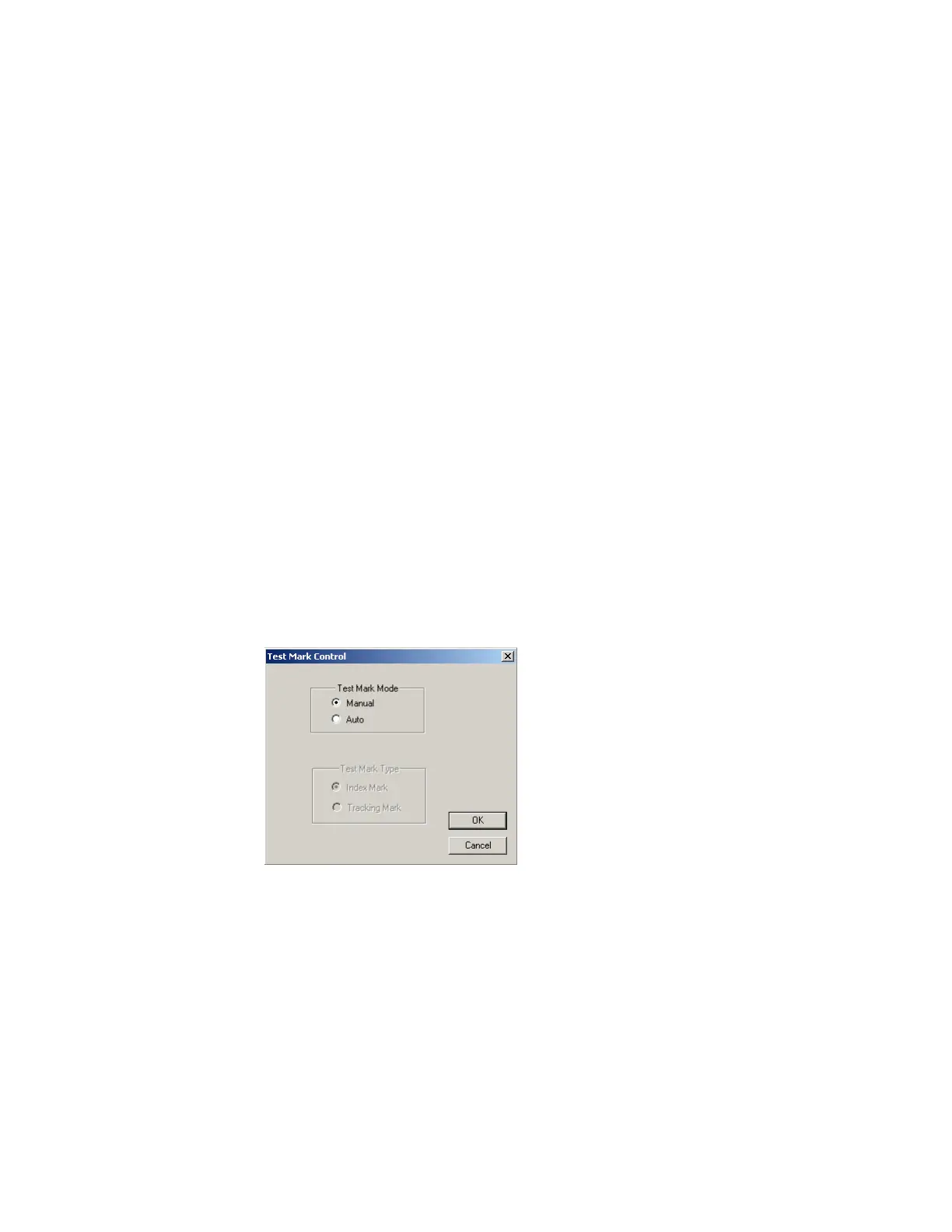

Test Mark Control options
Creating a custom test mark
Setting Test Mark Control options
Downloading a custom test mark file
Custom test mark I/O
