Inventory
The Inventory section includes subsections:
FH Flyer marking head
FLMK mounting kit
Laser
Your FH Series Flyer marking head may have been purchased separately from the laser and mounting
kit or may have been purchased as a component in a complete marking solution. The components in a
typical marking package include the Flyer marking head, a SYNRAD CO
2
laser, a mounting rail, and an
L-bracket. These components are designed so that when assembled as a package, the Flyer marking head
is precisely aligned to the laser without the need for time-consuming alignment procedures. Figure 1-2
illustrates all the components (except laser) shipped with a complete marking package. If you ordered a
SYNRAD 48 Series 10 W (FLMK-1A) or 25 W (FLMK-2A) fan-cooled marker, it is shipped completely
assembled—ready to use out of the box after marking power and control connections.

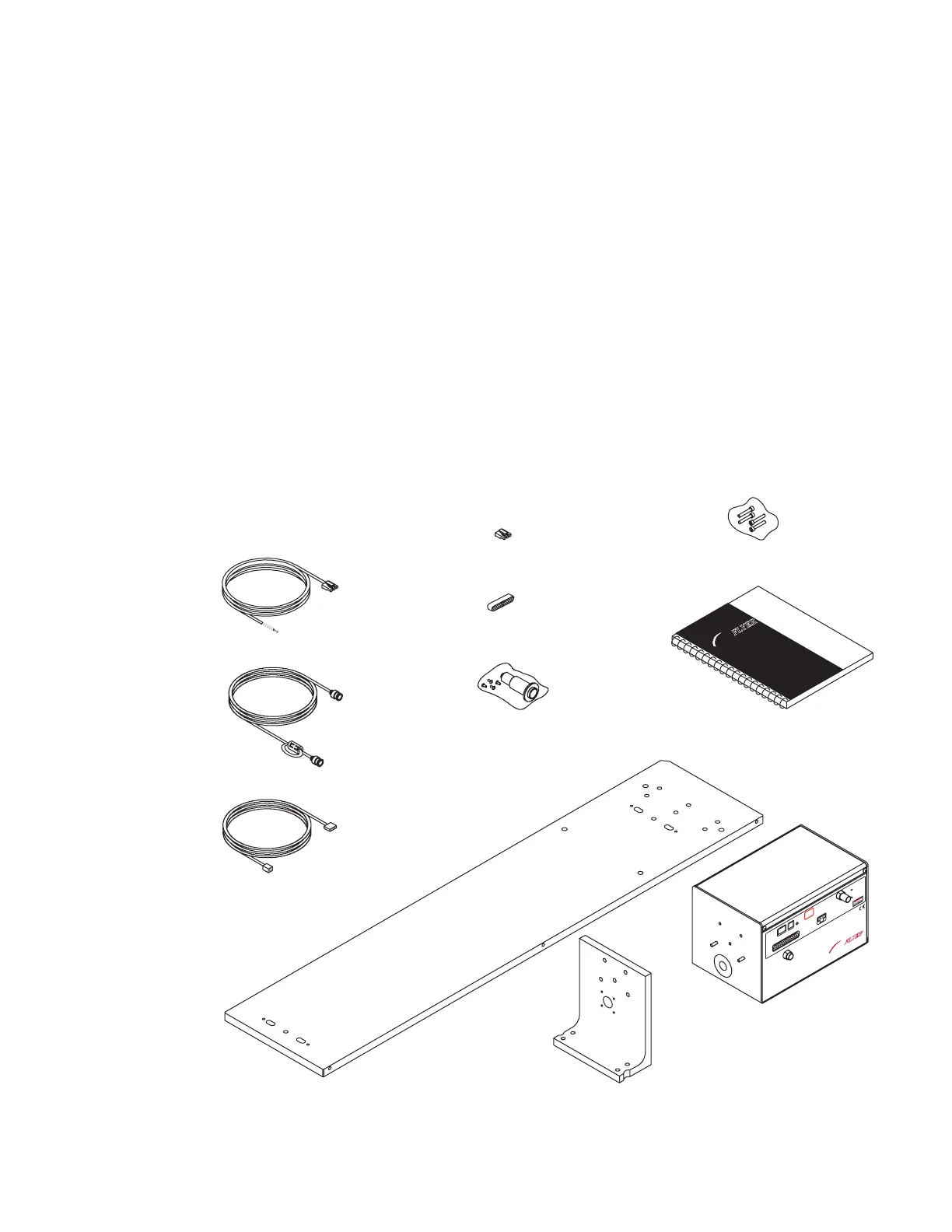

Figure 1-2 FH Flyer shipping kit contents
L-Bracket
DB25 User Interface Connector
Laser Control Cable
DC Power Cable
FH FLYER Marking Head
Beam Enclosure Tube
FH Fl
Mounting Bolt Set
Spare Power Connector
and Crimp Pins
Mounting Rail
USB Communication
Cable
Operator’
s Man
ual
FH
MARKING HEAD
FLYER
TEST
MARK
POWER
STA
TUS
PW
R
ETHERNET
USB
USER INTERFA
CE
LASER
CONTROL
GAS PURGE
FH
MARKIN
G HEAD
FLYER
