Alternate mounting congurations
In-line mounting
In-line mounting refers to an orientation where the beam exit of both the marking head and laser are
in the same plane but the head is oset some distance in front of the laser (see Figure C-2). This type of
mounting is common in a “space-saver” situation where the laser is mounted vertically.
Figure C-2 In-line mounting
Oset mounting
Oset mounting refers to an orientation where the beam exit of the marking head is oset some lateral
distance from the laser’s beam exit centerline (see Figure C-3). This type of mounting is useful in situations
where the laser must be oset from the marking head to prevent interference with the product ow or with
other components in the manufacturing system.

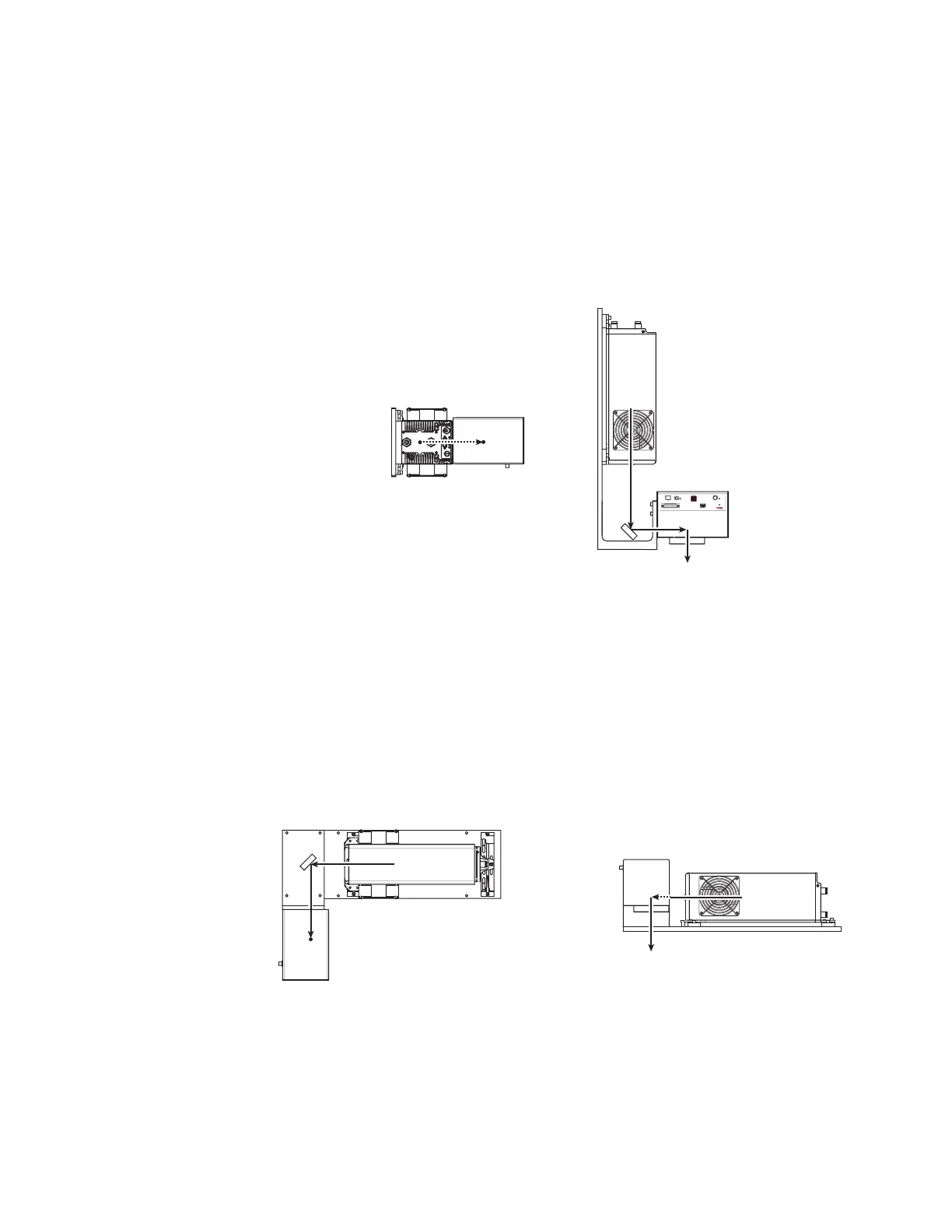

In-line FH Marking Head/laser mounting
Top View
ON
OFF
USER I/O
INT
TMPRDY SHTLASE
Side View
Beam path
ETHERNET
USB
LASER
CONTROL
POWER
USER INTERFACE
TEST
MARK
STATUS
PWR
Top View
Offset FH Marking Head/laser mounting
Side View
Beam path
Beam path
Figure C-3 Oset mounting
