appendix c
SYNRAD FH Series Flyer Operator’s Manual Version 3.4
211
Beam expansion/path length

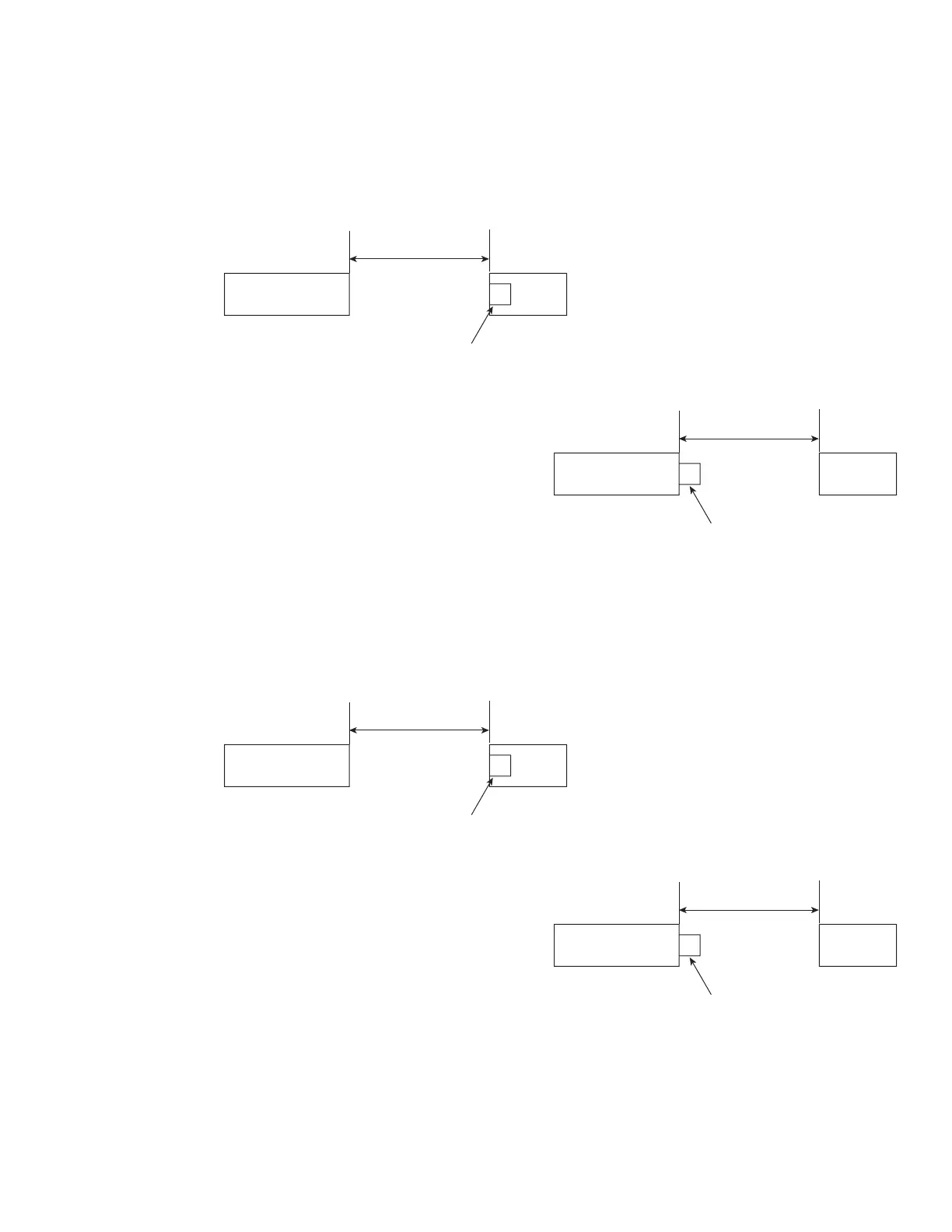

Figure C-5 Maximum 48 Series/f100 beam path
Series 48-1, -2, -5/
Firestar f100 laser
FH Head
3X Beam
Expander
< 17" Max Beam Path
STANDARD EXPANDER LOCATION
Series 48-1, -2, -5/
Firestar f100 laser
FH Head
3X Beam
Expander
< 136" Max Beam Path
CUSTOM EXPANDER LOCATION
Figure C-6 Maximum Evolution beam path
Evolution 100,
125 laser
FH Head
2.5X Beam
Expander
< 22" Max Beam Path
STANDARD EXPANDER LOCATION
Evolution 100,
125 laser
FH Head
2.5X Beam
Expander
< 136" Max Beam Path
CUSTOM EXPANDER LOCATION
