5.4.2. CONNECTION TO THE COMPRESSED AIR SYSTEM
¨NOT!¨ 

The compressed air is to be connected to a pressure regulator supplied with unit. The
pressure regulator is readily assembled and xed in the correct posion. Compressed air
supply requirements: 6-9 bar (85-130 psi).
The air supply valve can be equipped with a padlock to ensure safety during maintenance
of the machine.

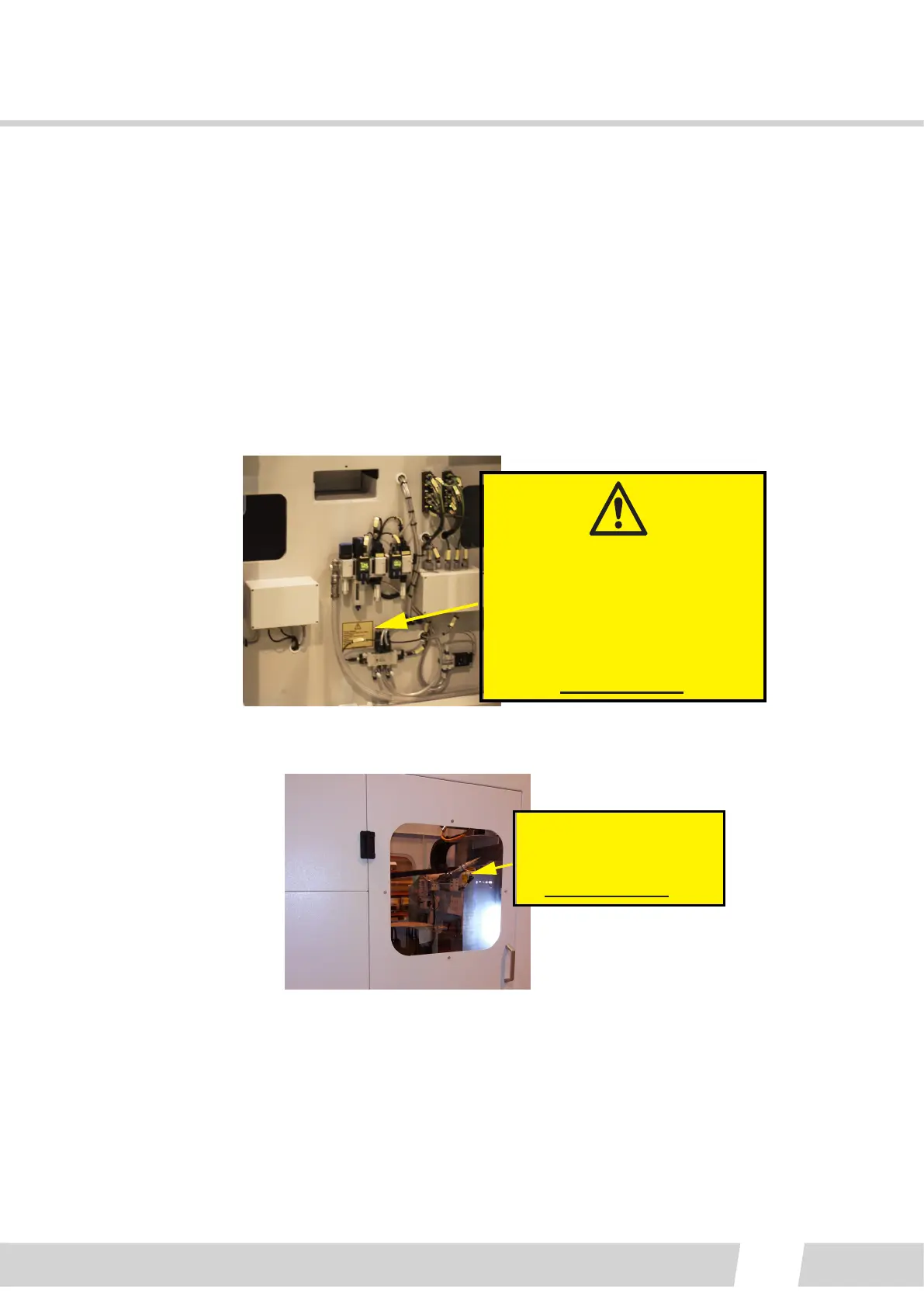

¨NOT!¨ 

Klämpin liikenopeus
Tehdasasetus! Älä säädä! Takuu päättyy.
Clamping speed
Factory setting! Warranty expires if
adjusted.
Klämhastighet
Fabriksinställning! Garantin löper ut om
den justeras.
¨NOT!¨ 

Planeettavaihteiston lukon paine
Planetary gear lock pressure
Planetväxel lås tryck
Bar

¨NOT!¨ 

Before using the machine, proceed as follows:
1. Measure the supply voltage of the machine and check if it corresponds to the voltage
and frequency indicated on the idencaon plate of the machine.
2. Check the air supply. Open the main valve of the machine and set the value of the
operaon pressure to 6 bar (85 psi).
