T-Drill S-80 - Tool Cone Jig 6560093; Fork Tool 6560094

COLLARING MACHINE
55
S-80

1
2

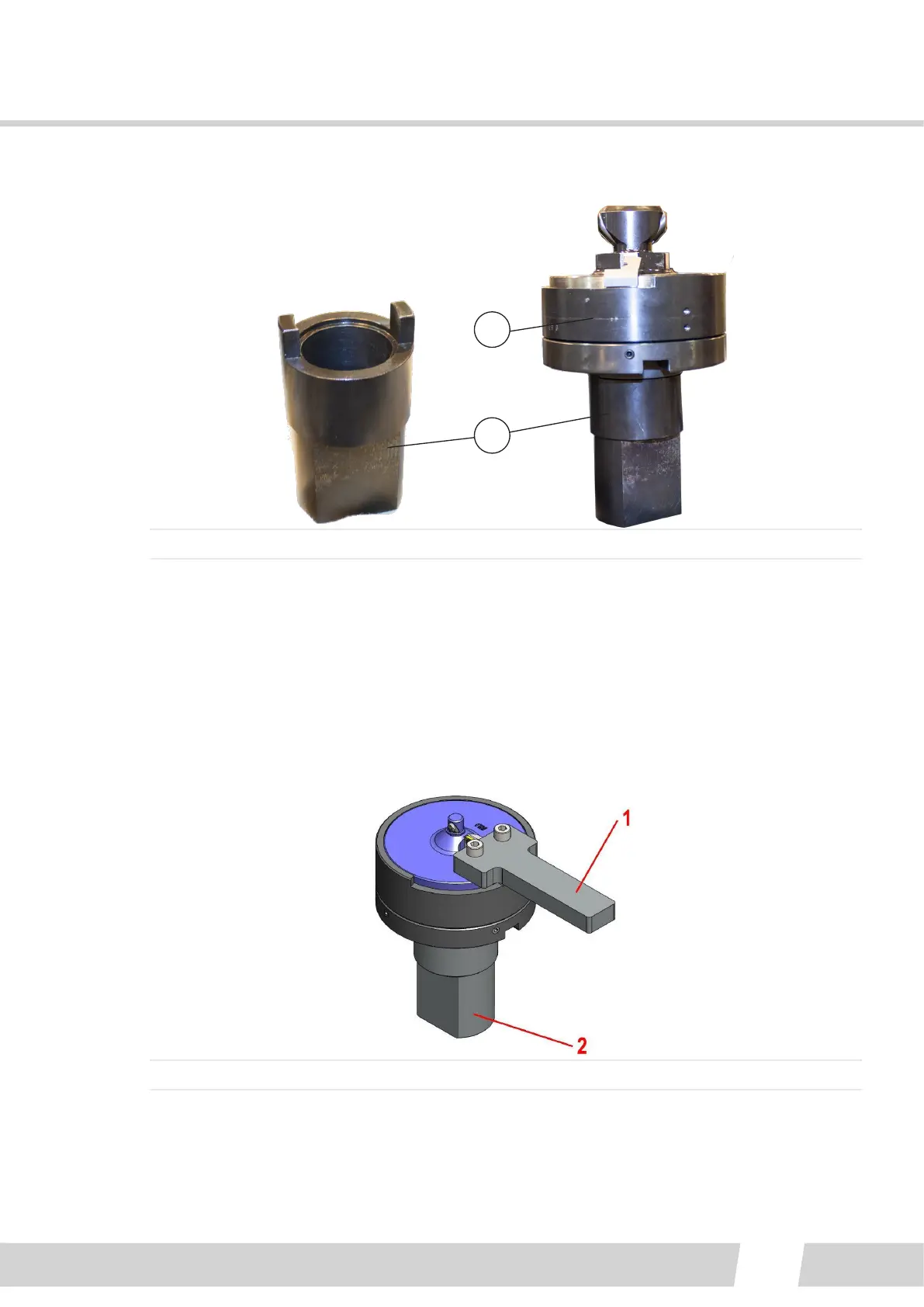

1. Collaring tool, 2. Jig
This tool cone jig is designed to ease dismantling and ghtening of the tool cones.
The jig is ghtened to a vice bench, and the tool is placed to the jig, the jig lugs will keep
the tool in posion when loosening or ghtening the cone to the tool.
Tool cone jig 6560093 is used with all collaring tools to avoid leaving marks and scratches
to the tool cone.

The special fork tool 6560094 is used to open and ghten smaller tools, that do not have
a hex head for an ordinary spanner.
1. Fork special tool 6560094, 2. Tool cone jig 6560093
