INSTRUCTION MANUAL
60

Ordinary startup when machine has been shut down:
• Power on.
• Check all machine surroundings visually for breaks, leaks and objects on the way of the
machine (for example the maintenance plaorm).
• Close all doors (Check that there are no personnel inside the safety area).
• Check warnings and alarms from the Operaon panel.
• Push green buon to switch control on.
• Switch on AUTO from key switch.
• Before starng to work, do a homing run for the whole machine to check all axis
movements.
7.1. MACHINE GENERAL SETUP


1. Tube diameter
2. Tube wall thickness
3. Collar diameter
4. Tool number of the tool that will be used, the tool parameters have to be correct for
this certain tool as well.

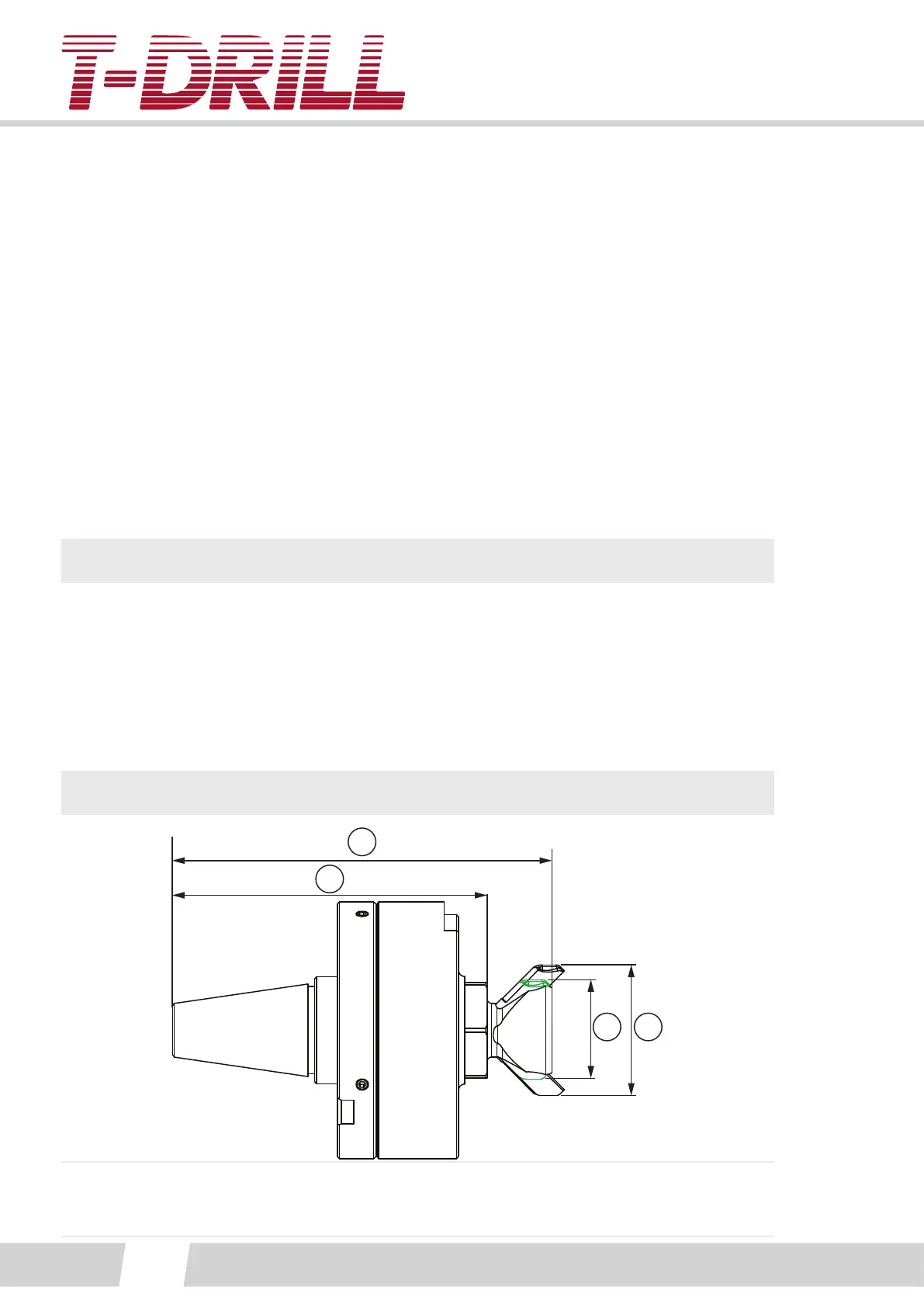

7.1.1. COLLARING TOOL SETUP


2
1
4
3
Measure: 1. Tool length from zero surface to cone top (2) (remove nut and washer to ease
measuring) and to tool core end (1). Tool head width with pins fully extended (3) and pins
retracted (4).
