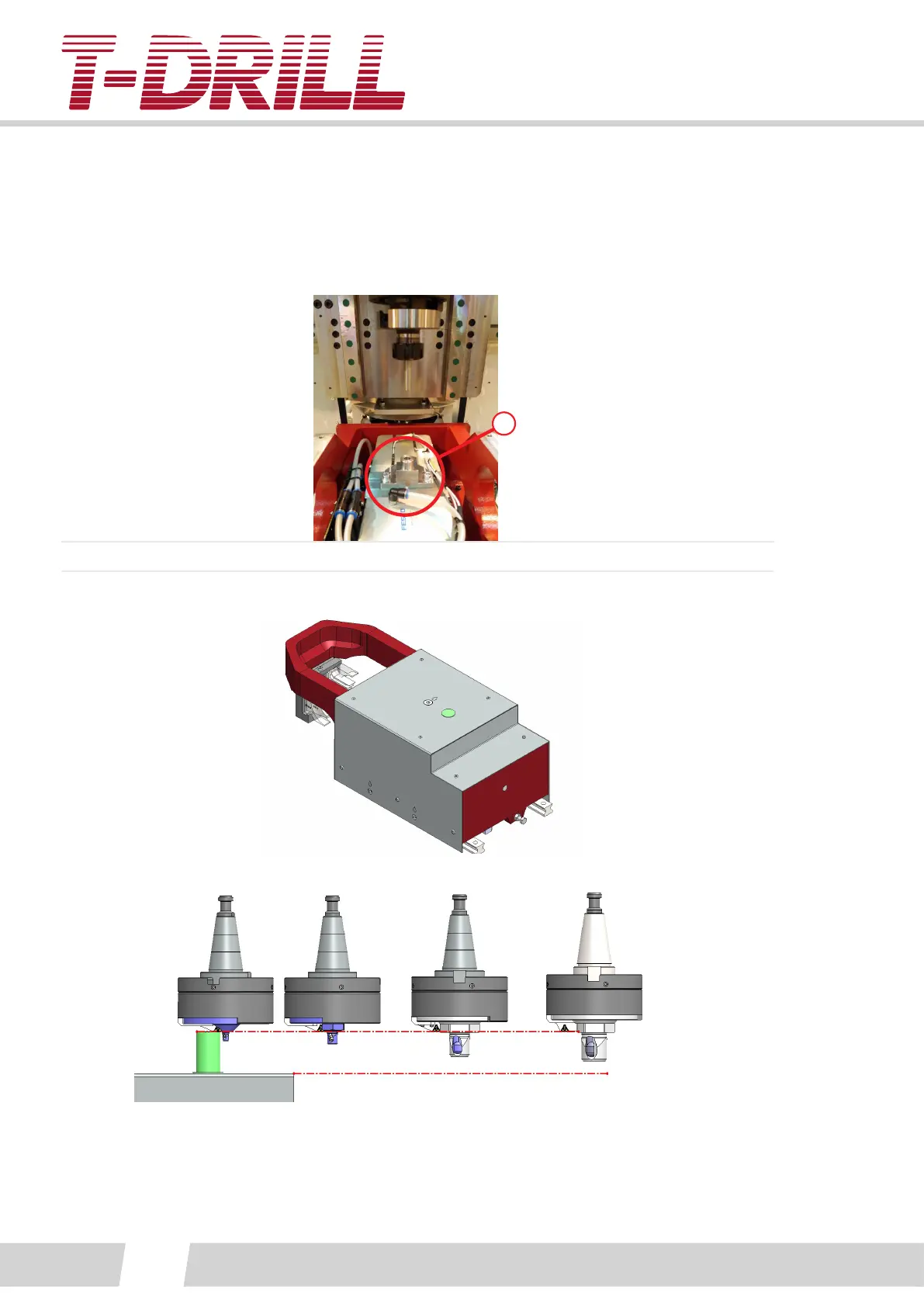

6.5.6. REFERENCE POSITION SETTING TOOLS
The spindle reference posion seng tool is xed to the machine main body, in the
middle of the clamp frame. The reference points of the machine axis require seng only
when the machine has had a major repair, like change of a servo motor, which will aect
the posion of the parts.
1
1. The xed spindle reference posion seng tool
The tool references are dened using a reference arbor, which is placed on the xed
reference tool through the hole in the clamp frame cover.
The tool is fastened to the chuck and moved to the arbor using manual mode and slower
movements / torques.
The hole in the clamp frame cover is covered with a plasc cap when not in use.
