6.5. TOOLS
6.5.1. MILLING TOOL
2
3
1
4
5
7
6
8

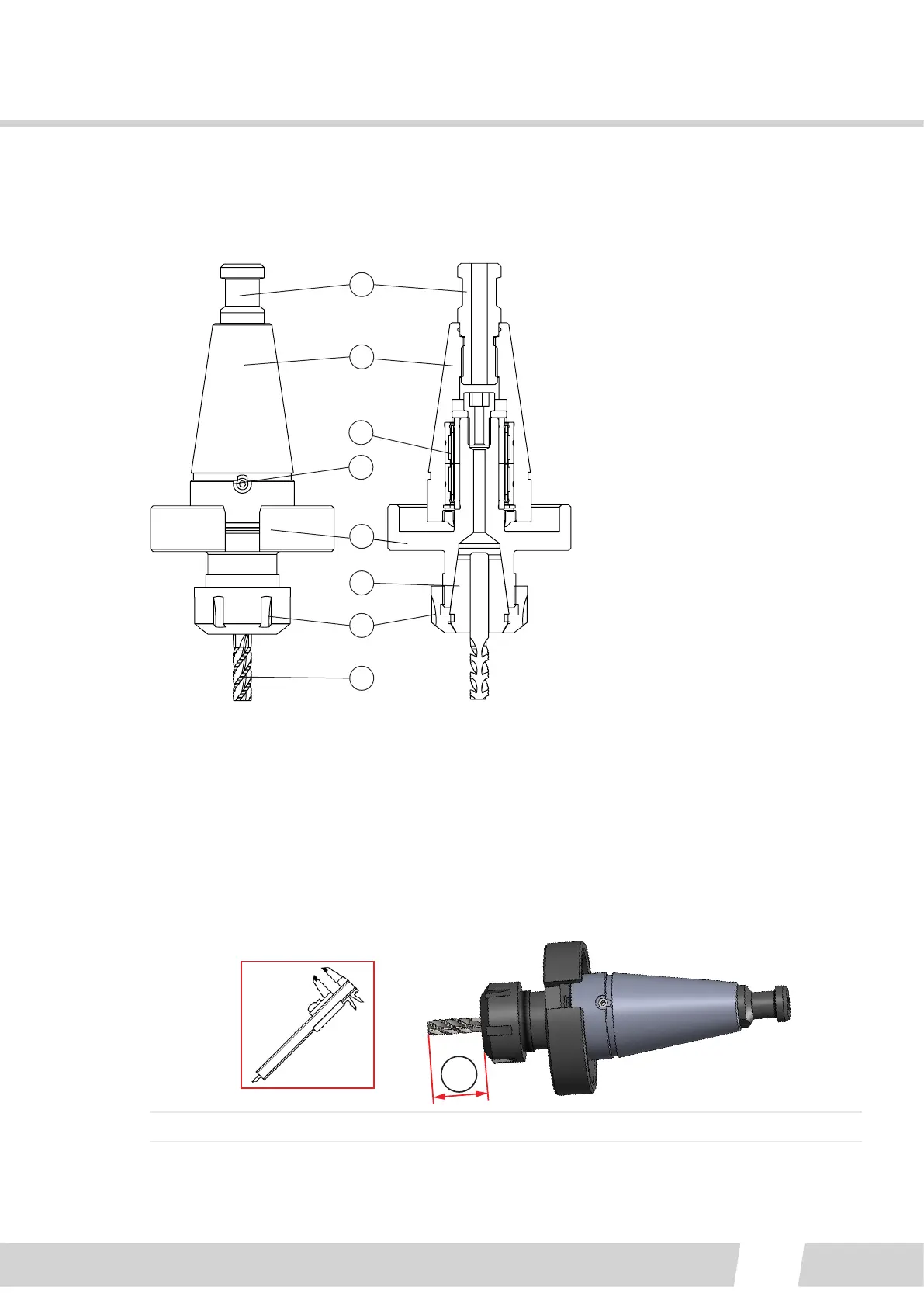

1. Retenon knob
2. Tool holder cone
3. Bearing
4. Grease nipple
5. Collet chuck
6. Spring collet
7. Pin ghtening nut
(Tool in the tool kit)
8. Milling pin

Open the pin ghtening nut (7) with the special tool, loosen the nut to release the pin
from the spring collet (6).
Change pin, and ghten nut: Adjust the pin height, measure with a vernier caliper from
the from the boom of the collet:
Pin diameter 6 mm - length 22 mm from the boom of the collet.
Pin diameter 8 mm - length 25 mm from the boom of the collet.
X
X : Pin length from the boom of the collet.
¨NOT!¨ Tighten the nut securely.
