T-Drill S-80 - Collaring Tool Maintenance; Dismantling and Reassembling of the Collaring Tool

INSTRUCTION MANUAL
68

¨NOT!¨ 
The collaring tool does not need any regular maintenance. If the collar quality starts to
decrease, the collaring pins are worn and have to be renewed.


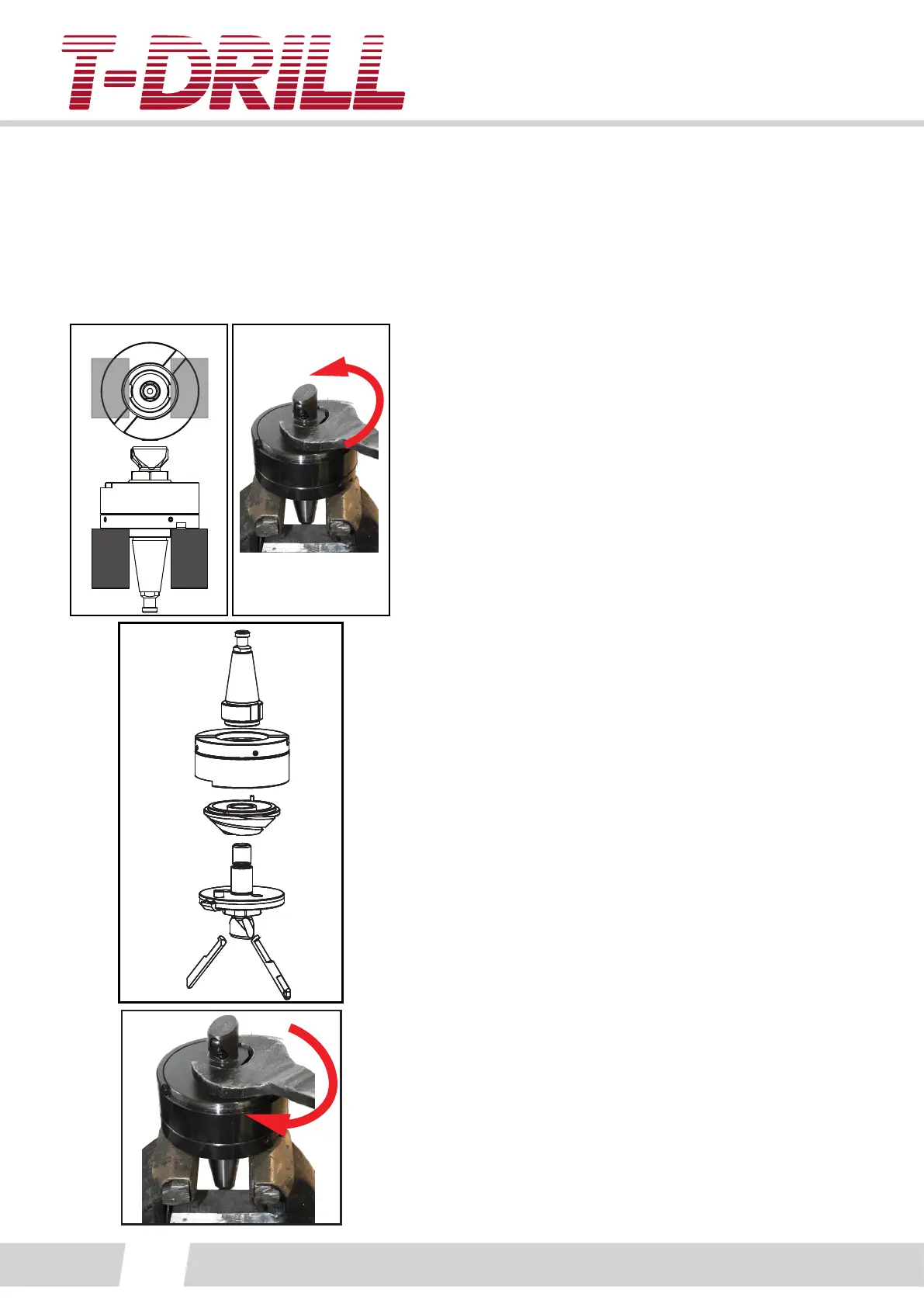

Place the tool to a vice bench or similar to keep
steady, the tool is placed to the jaws as shown
in the picture.
Place the tool to a vice bench with the cone
facing downwards.
Tighten the tool to the vice by the cone
boom.
Open the tool by the hex head (RH thread,
spanner size 46).
Turn the head to cone upwards posion and
screw the cone open.
Beware, the pins may fall out when the drive
gear is lied.
The tool must be ghtened very well aer
assembly.
.
Aer ghtening check the operaon of the tool
(by rotang it by hand)!
