COLLARING MACHINE
33
S-80

1
2
3
4

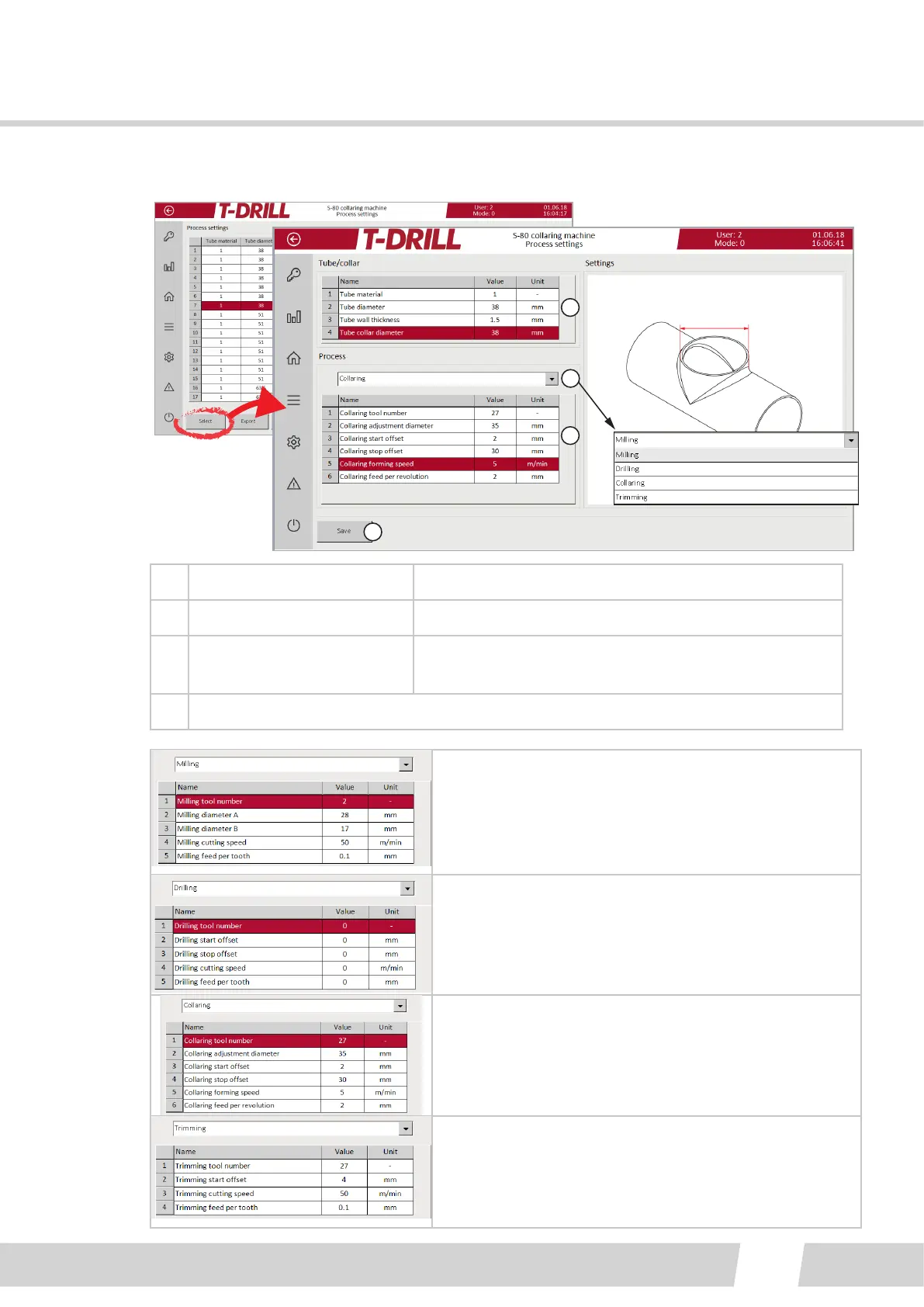

1. Tube / collar Basic informaon on tube to be collared
2. Process: Pull down menu Select the desired process from the pull down menu
3.
Adjustable denions of
the selected process
Check and alter denions if required
4. 
Milling process sengs has all required informaon to
make a pilot hole.
For pilot hole measures, see pilot hole table.
Check the milling instrucons for tool size, always use
a correct size milling pin.
Drilling process sengs has all required informaon to
make a round pilot hole by drilling.
Collaring process sengs has all required informaon
to make a collar.
Check tool adjustment.
Trimming process sengs has all required informaon
to trim the collar to desired height.
