INSTRUCTION MANUAL
70
2
1


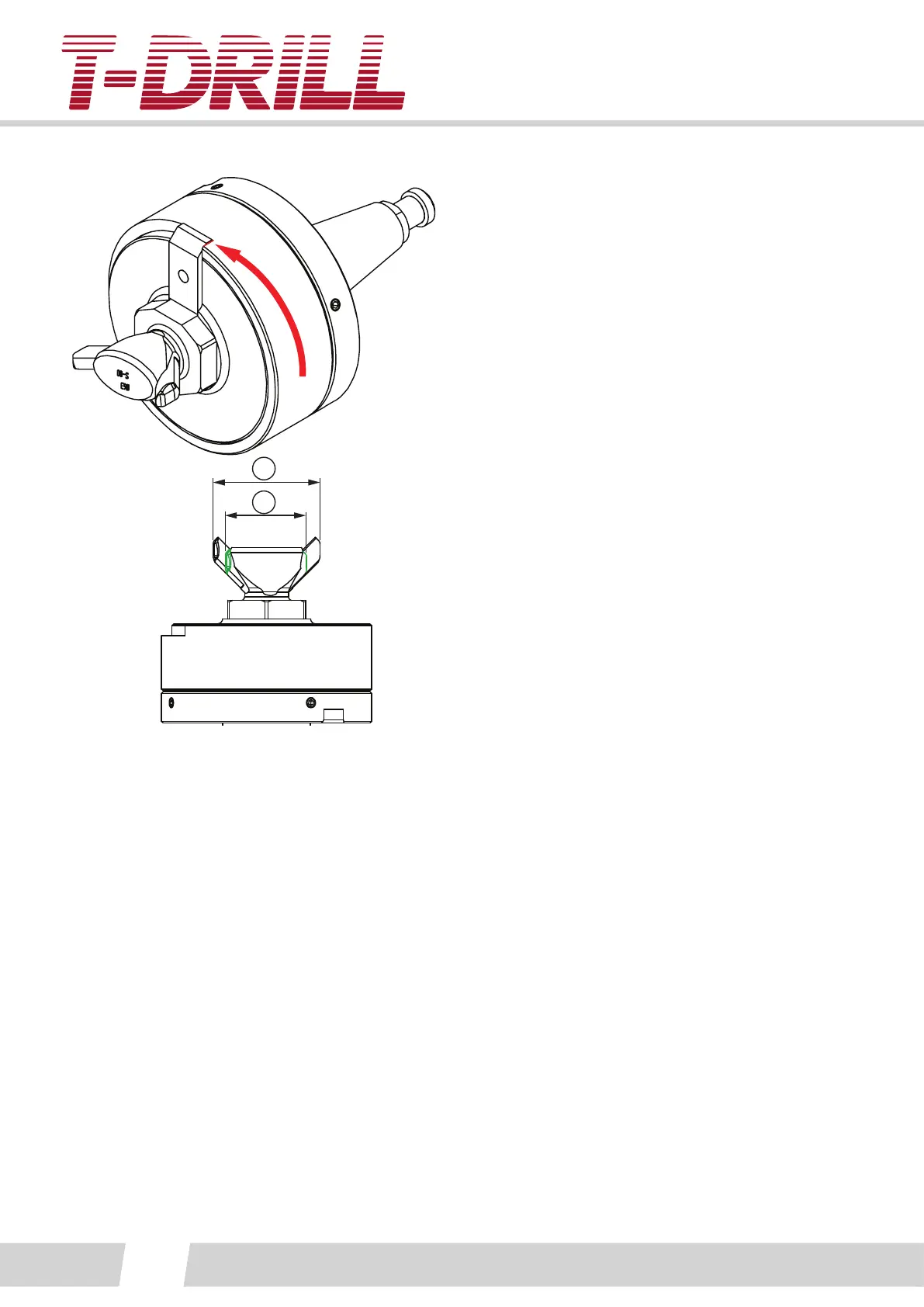

Rotate the drive unit to stopper.
Adjust pins to required MAX width (1,
pins out) = collar ID + 3 mm tolerance to
enable adjusng in program **.
Measure pin width with a slide caliper.
Close the retainer screws.
TEST the tool by rotang pins out and in
by hand, the tool should move steadily
and smoothly.
Measure pin width (1) again with a slide
caliper.
** The collar size adjustment is
recommended to measure from the rst
collar made with the tool. The collaring
pin max width can be adjusted from the
program if required.
See 6.2.2.3.2. Collaring tool
(Without the width tolerance the
program will end up to an error situaon
when aempng to adjust).


Lubricate the pins when assembling the head.
