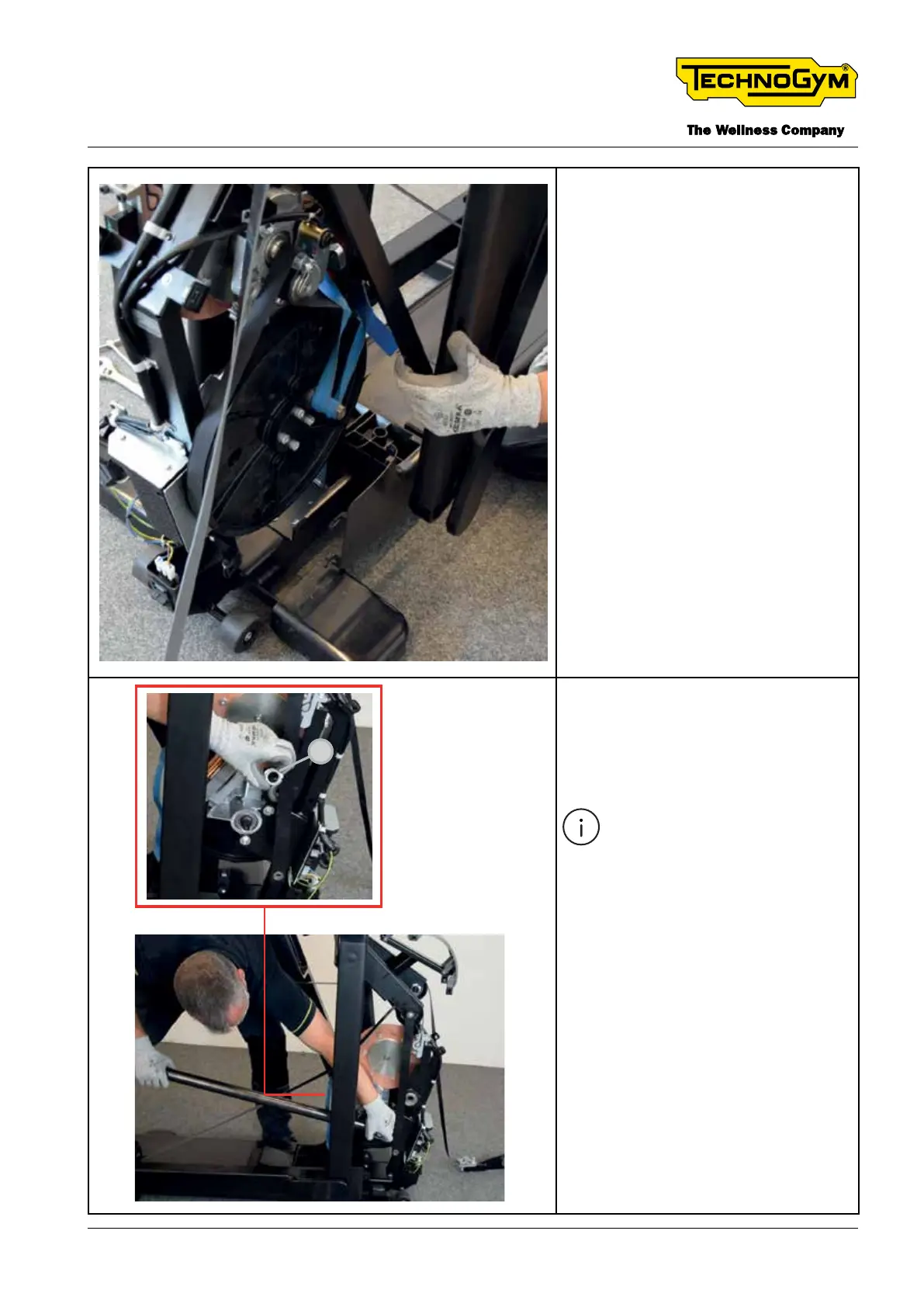

Lock the pulley on the left side as
shown in the gure. (TOOL: strap)
71
Remove the ring nut [71] on the right
side. (TOOL: socket for ring nut +
metal bar)
Then remove the strap.
During reassembly, tighten the
ring nut [71] with a torque
wrench set to 100 Nm [73.8
lbf-ft] .
