69

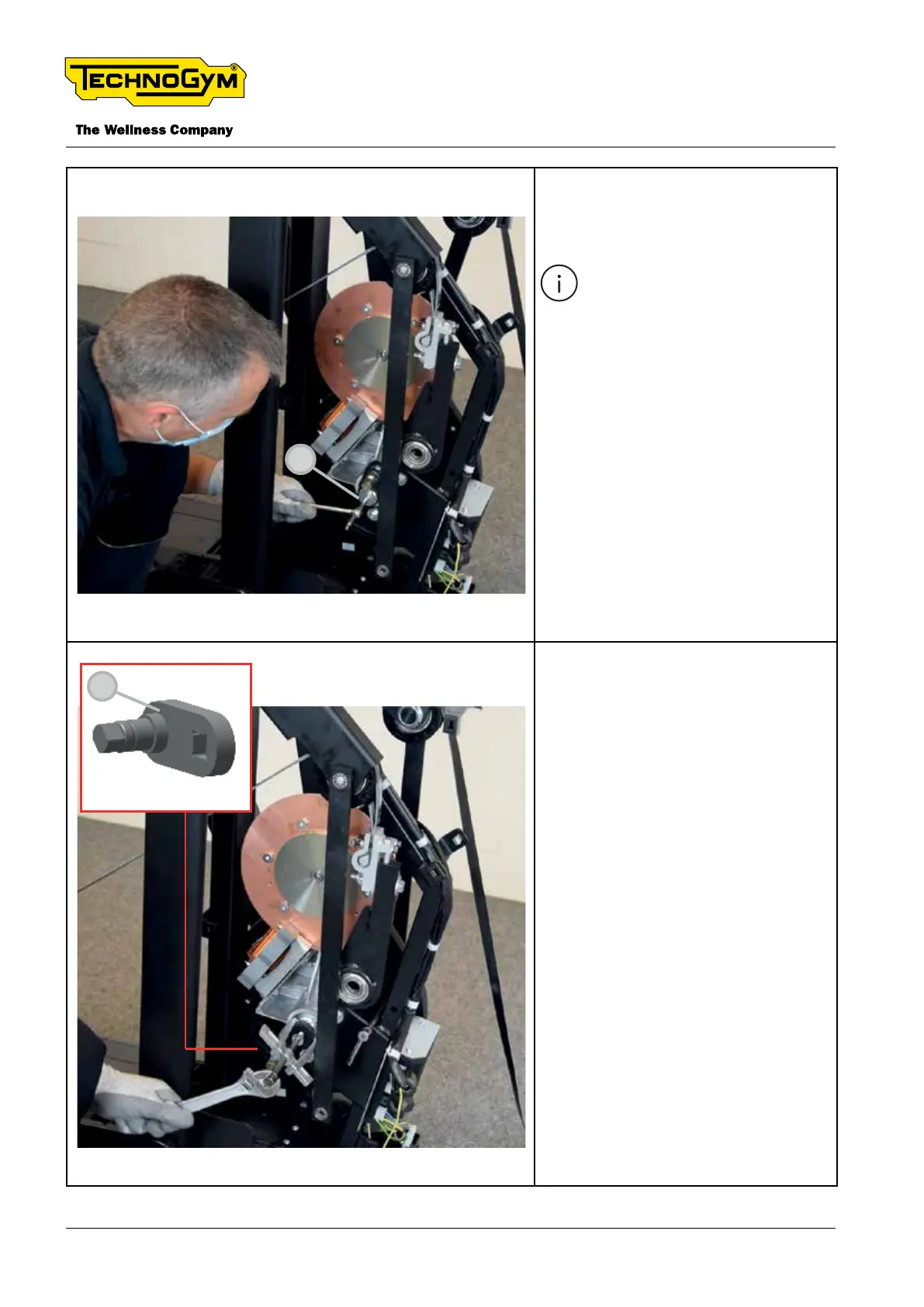

Remove the screw [69] with the
washer. (TOOL: 6 mm hexagon key
wrench).
During reassembly, apply Loc-
tite 243 and tighten the screw
[69] with a torque wrench set
to 44 Nm [32.5 lbf-ft]
70
Reassemble the screw [69] in its seat
(TOOL: 6 mm hexagon key wrench)
and remove the connecting rod [70].
(TOOL: Two-leg universal pullers).
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 100 -
