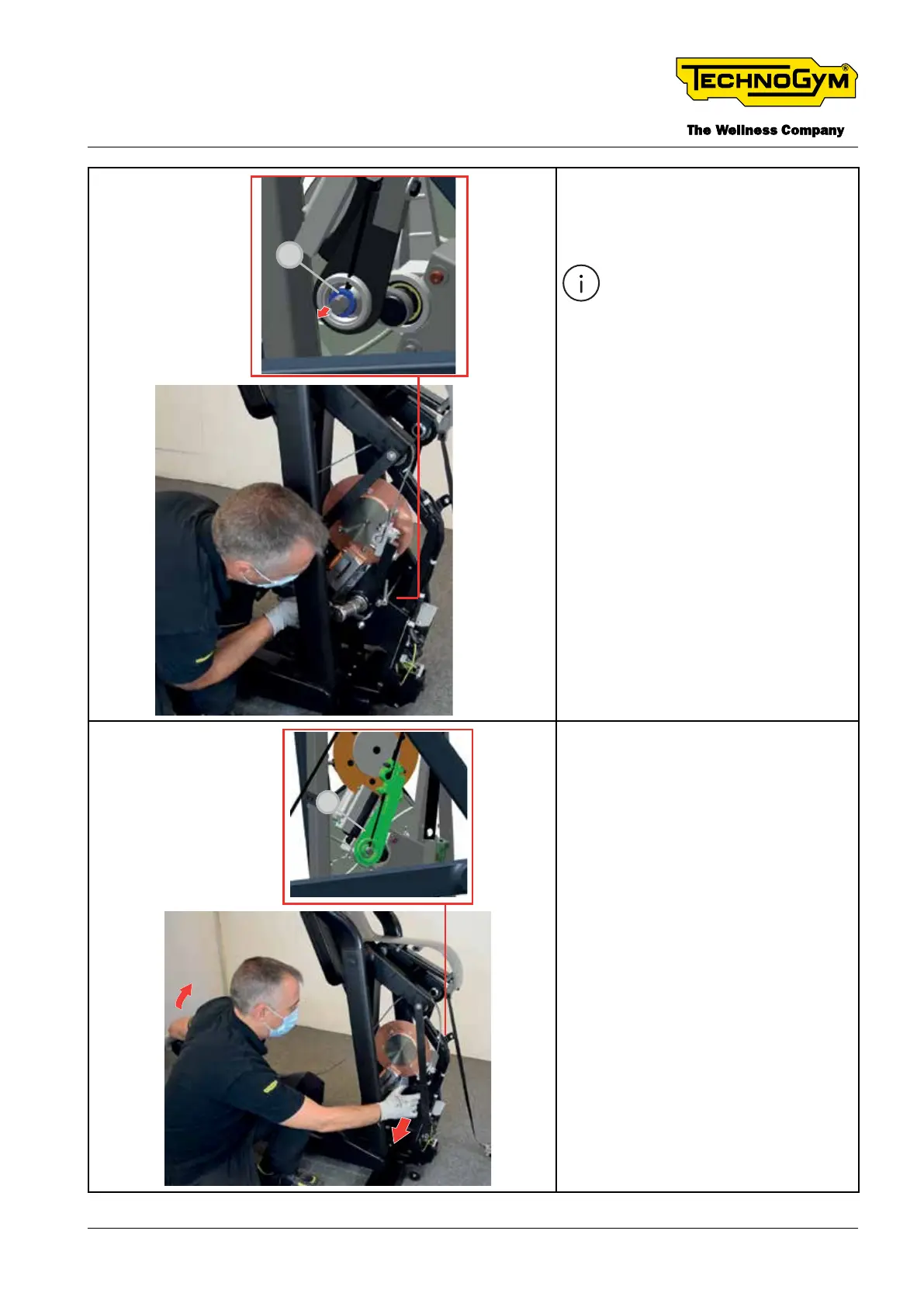

Lock the black pulley with a screw-
driver and remove the ring nut [67].
(TOOL: socket for ring nut).
During reassembly, apply Loc-
tite 243 and tighten the ring
nut [67] with a torque wrench
set to 60 Nm [44.3 lbf-ft] ).
67
68
Remove the crank assembly [68]
from the right side (TOOL: Two-leg
universal pullers), raising up the le-
ver of the right pedal.
