d

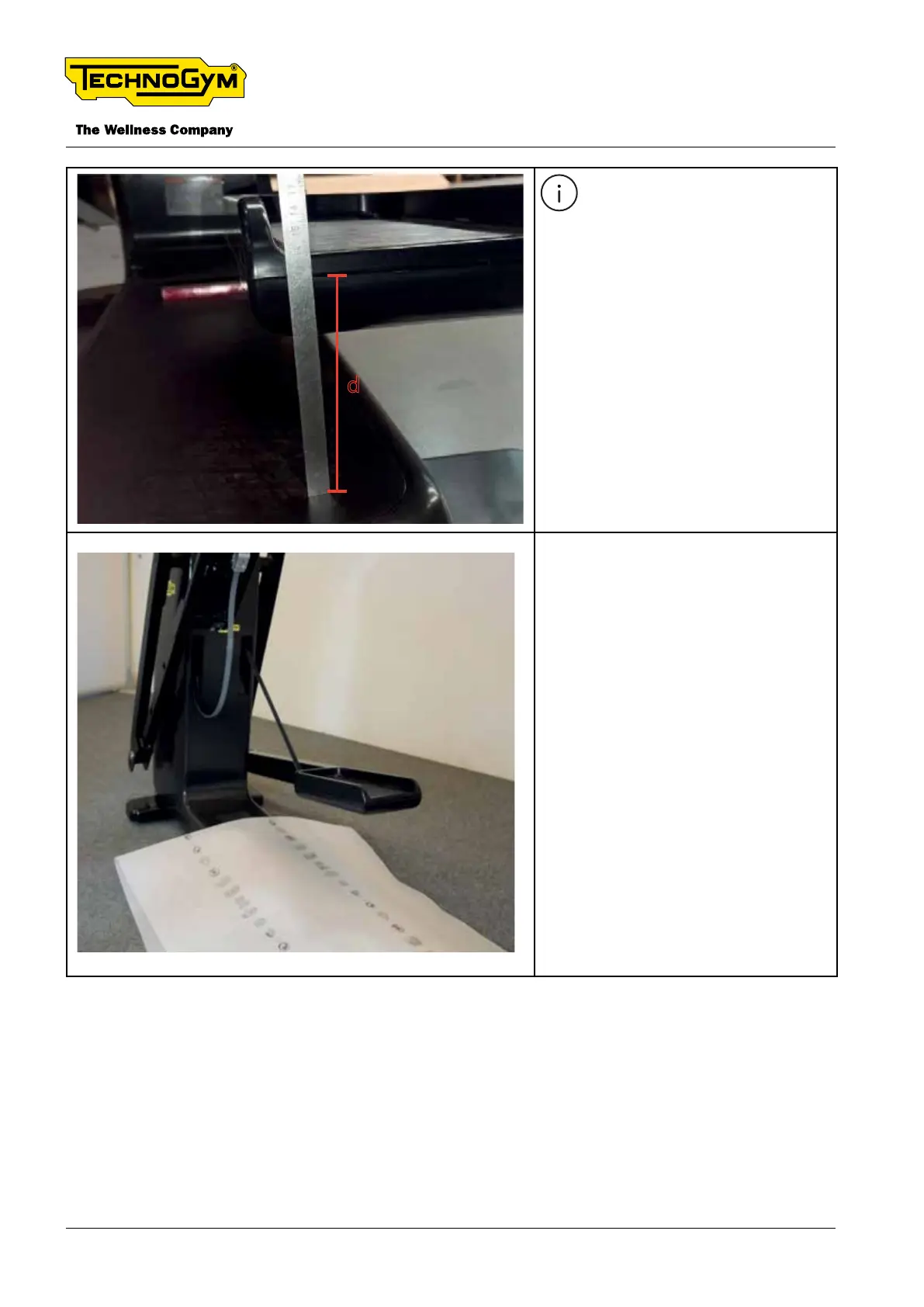

Before disassembling, bring the
pedal to the lowest position and take
the distance (d) between the pedal
cut and the rear foot casing as shown
in the gure. The distance “d” should
be equal to 127mm. (TOOL: Measur-
ing tape)
Protect the machine with a cloth as
shown in the gure.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 108 -
