58

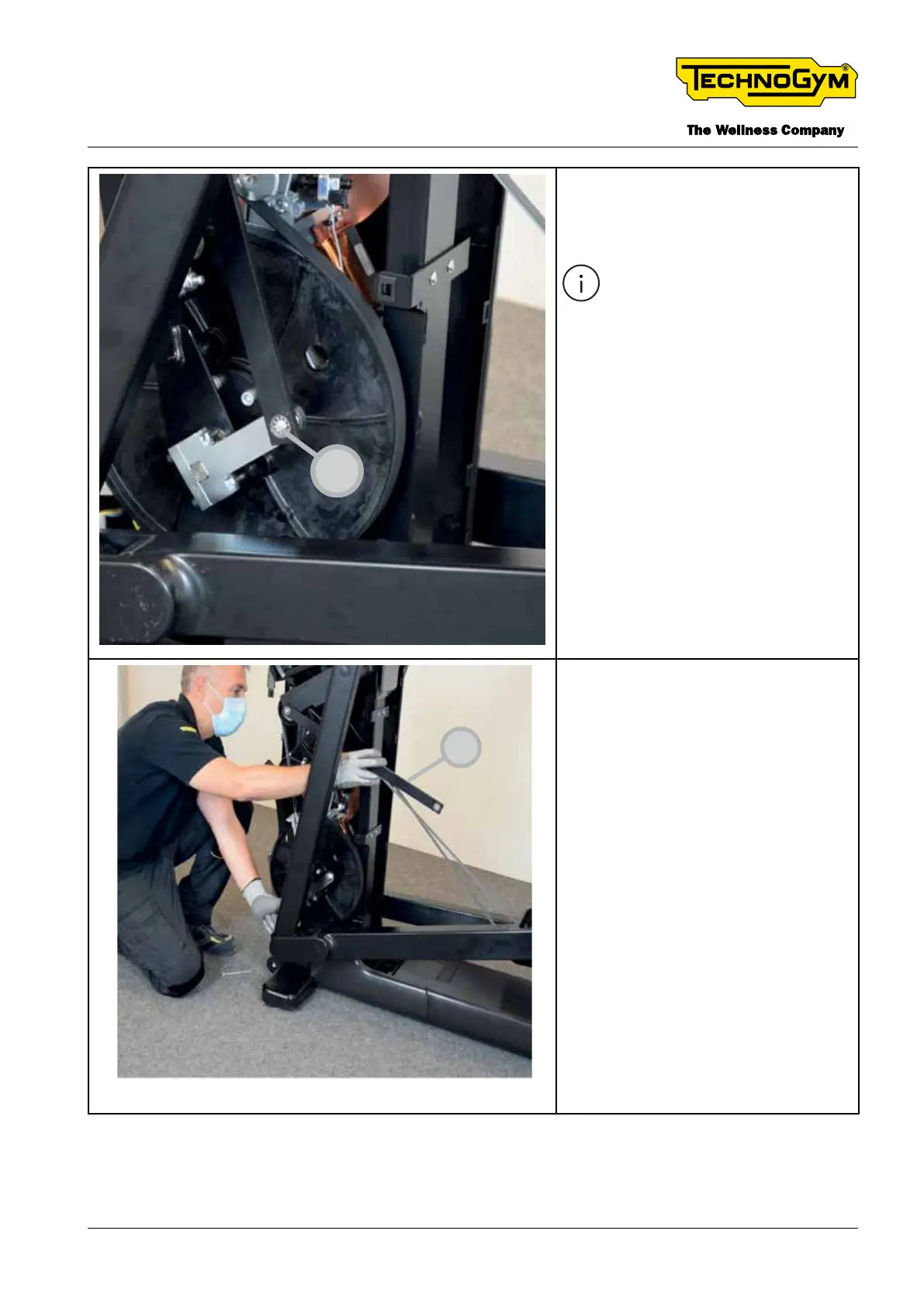

Remove the screw [58]. (TOOL: 8mm
combination wrench, open and o󰀨set
ring ends).
During reassembly, tighten
the screw [58] with a torque
wrench set to 5 Nm [3.7 lbf-
ft] ).
59
Remove the rod [59] as shown in the
gure.
