189

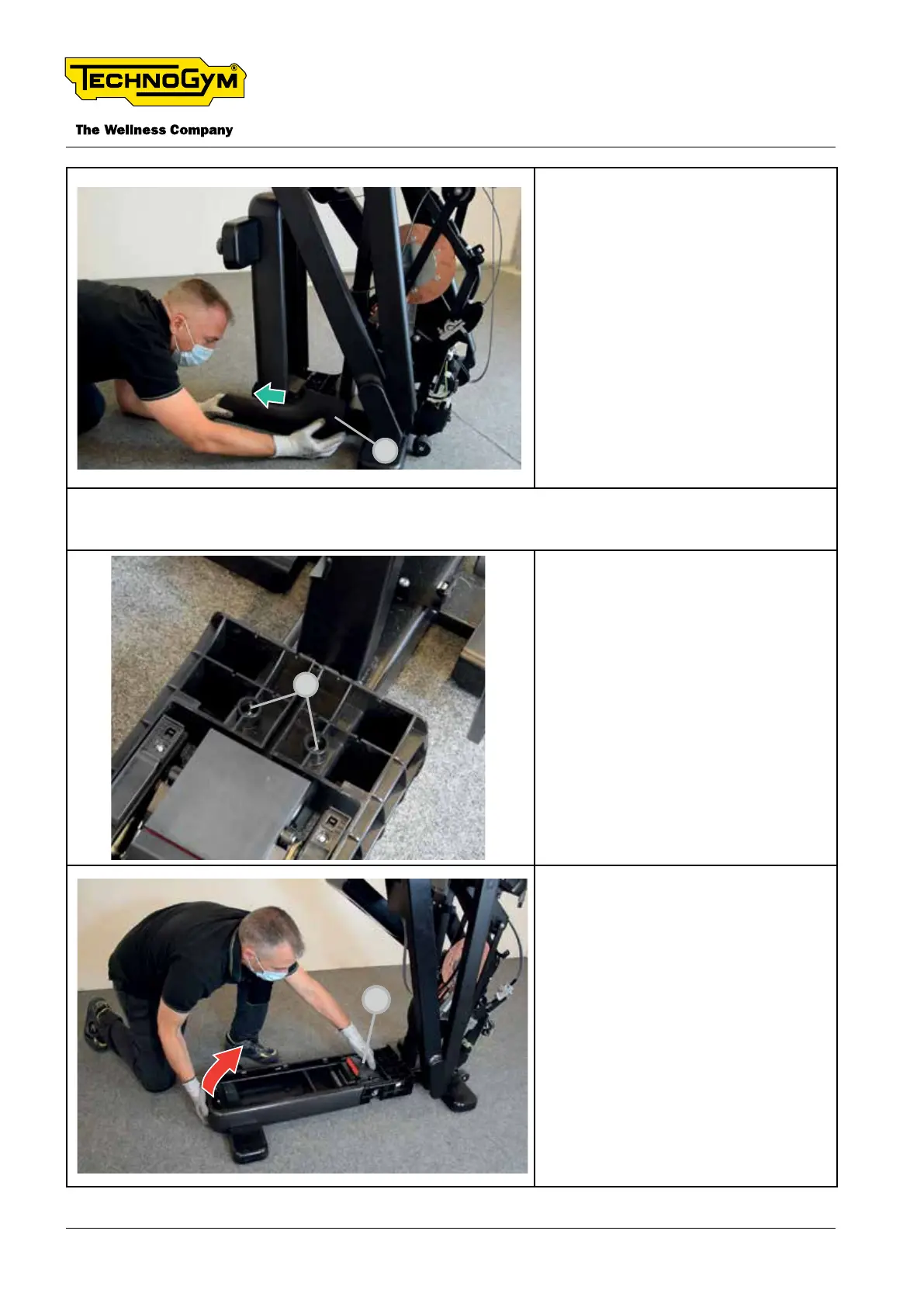

Keep the unlocking lever pressed
and raise up the rear foot assembly.
Remove the interlocked casing [89].
Repeat the same procedure on the left side. Then remove the interlocked casing.
91
Remove the screws [91]. (TOOL: key
wrench for Torx T25 head screw).
92
Keep the unlocking lever [92] pressed
as shown in gure and raise up the
rear foot assembly.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 120 -
