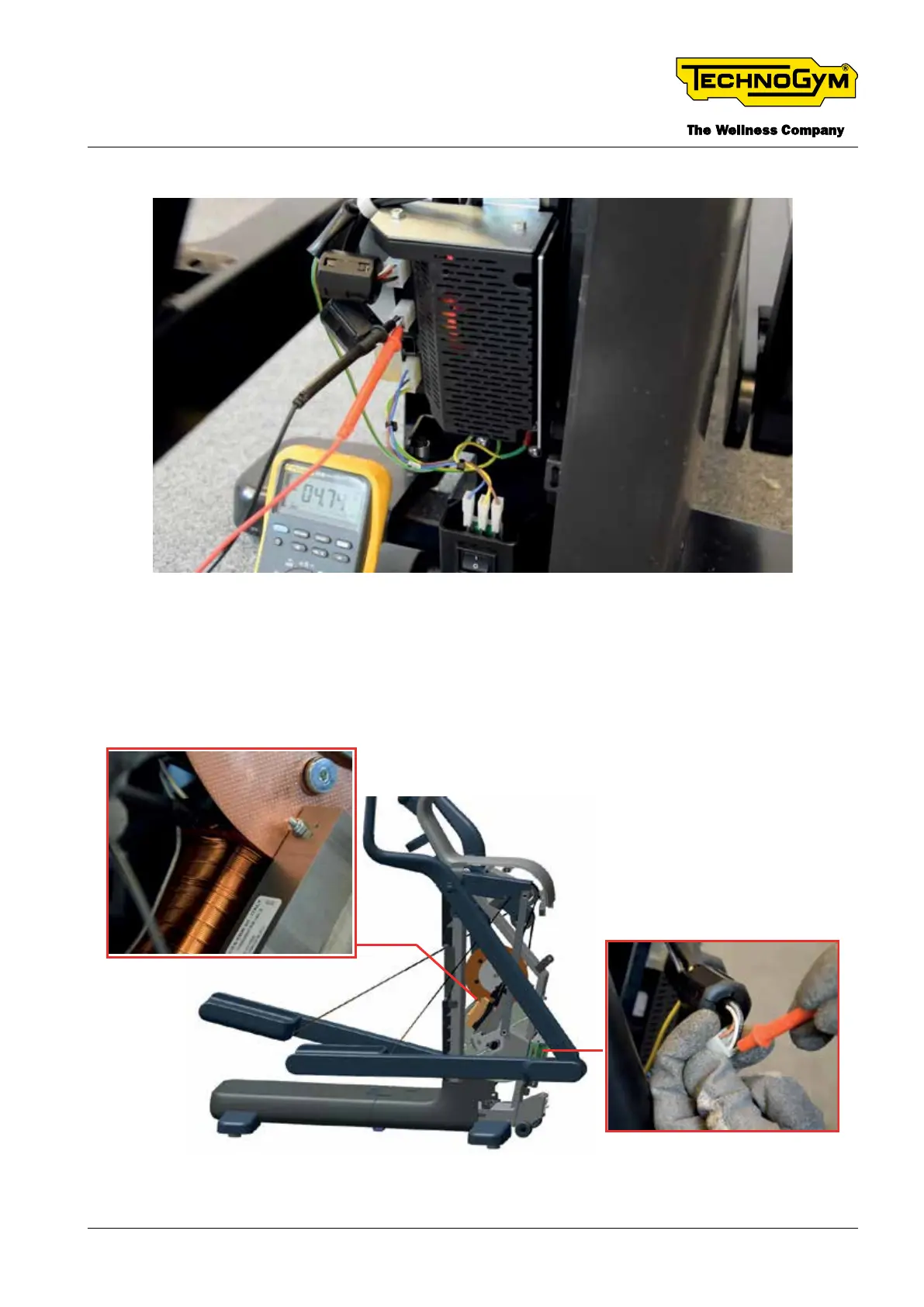

Fig. 21

[2]: Disconnect the cable 0WCU1052xx and insert the tips of the tester:

- between PIN 1 and PIN 1 (white)

Fig. 22

TECHNOGYM ELLIPTICAL Technical Service Guide

Rev. 1.1

- 49 -

Uncontrolled copy if printed
