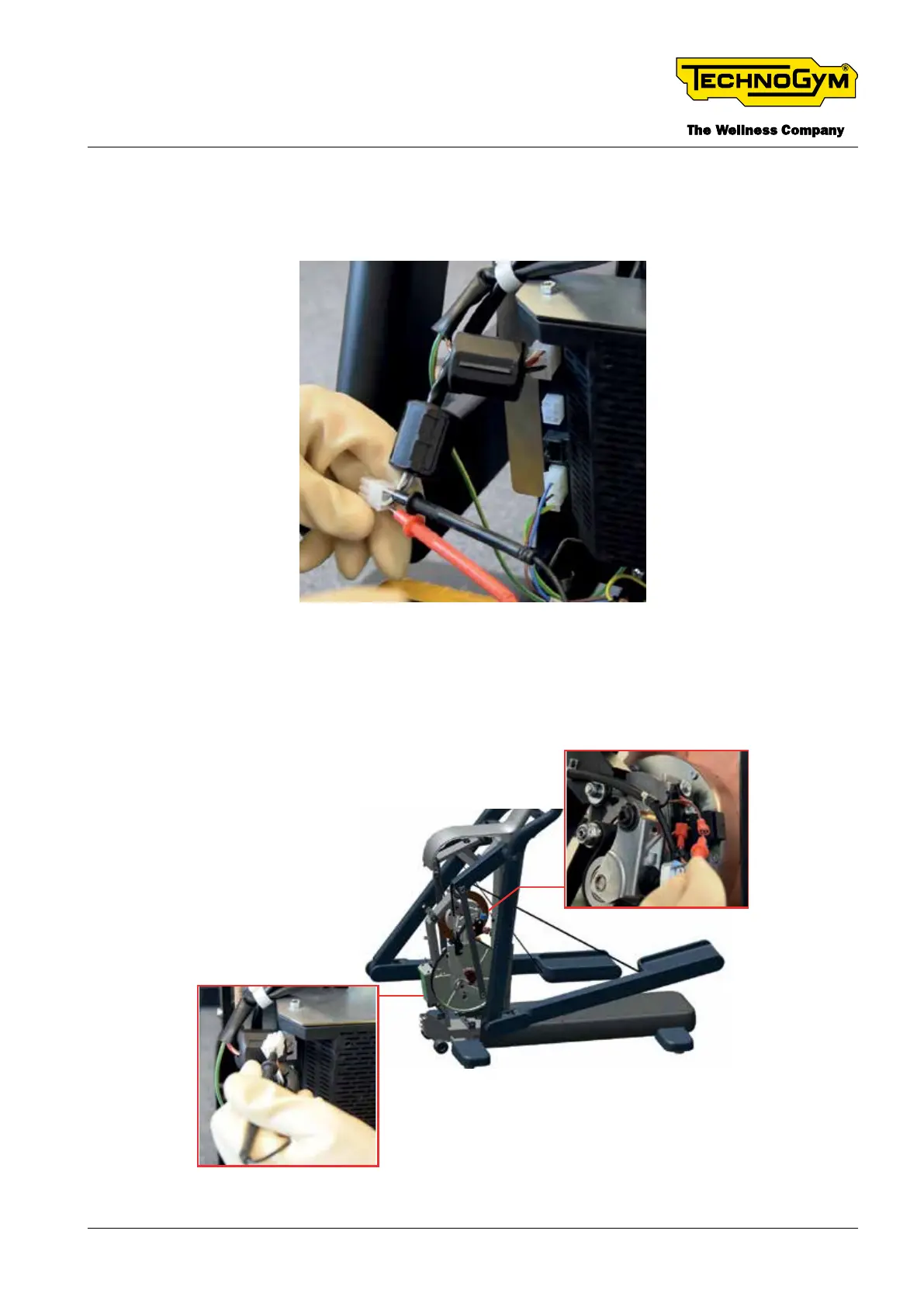

[4]: Find out the connector that connects the brake board to the RPM sensor and the Brake. Dis-
connect the connector and put the probes of the tester in PIN 3 (RPM- brown) and PIN 4 (GND
RPM- black), pins coming from the RPM sensor. Start to pedal and measure the continuity of the
sensor: you must measure open contact/close contact, changing very fast.
Fig. 25
[5]: Check the continuity of the cable that connects the RPM sensor to the brake board. Then dis-
connect the cable 0WCU1052xx and insert the tips of the tester:
- between PIN 3 and PIN 3 (brown)
Fig. 26
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 51 -
Uncontrolled copy if printed
