Fig. 31

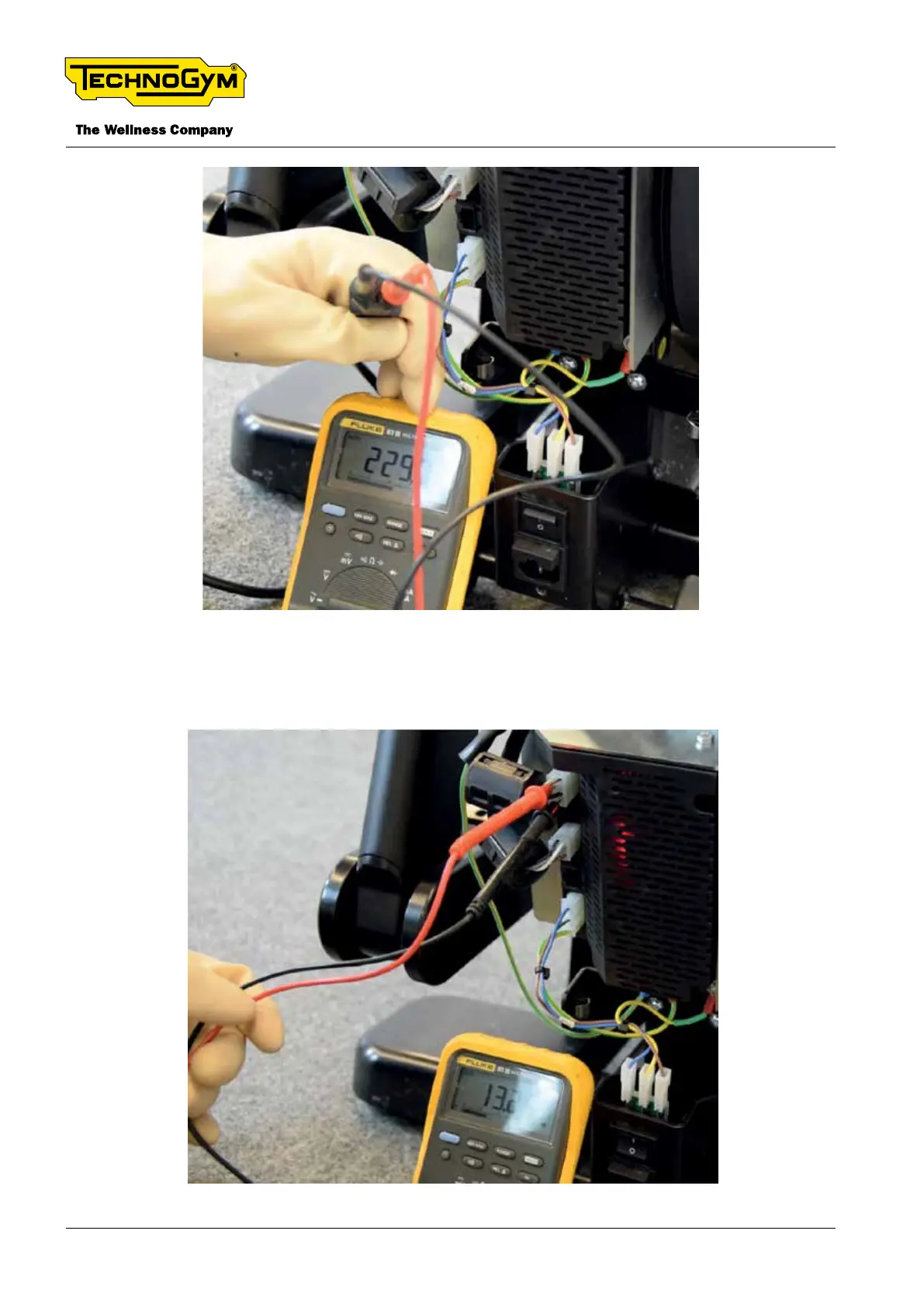

[2]: Insert the tips of the tester between PIN 3 (GND- black) and PIN 6 (+12Vdc- red) of the 4x2 pin
connector, connected to the brake board, coming from the display.
Fig. 32
