35

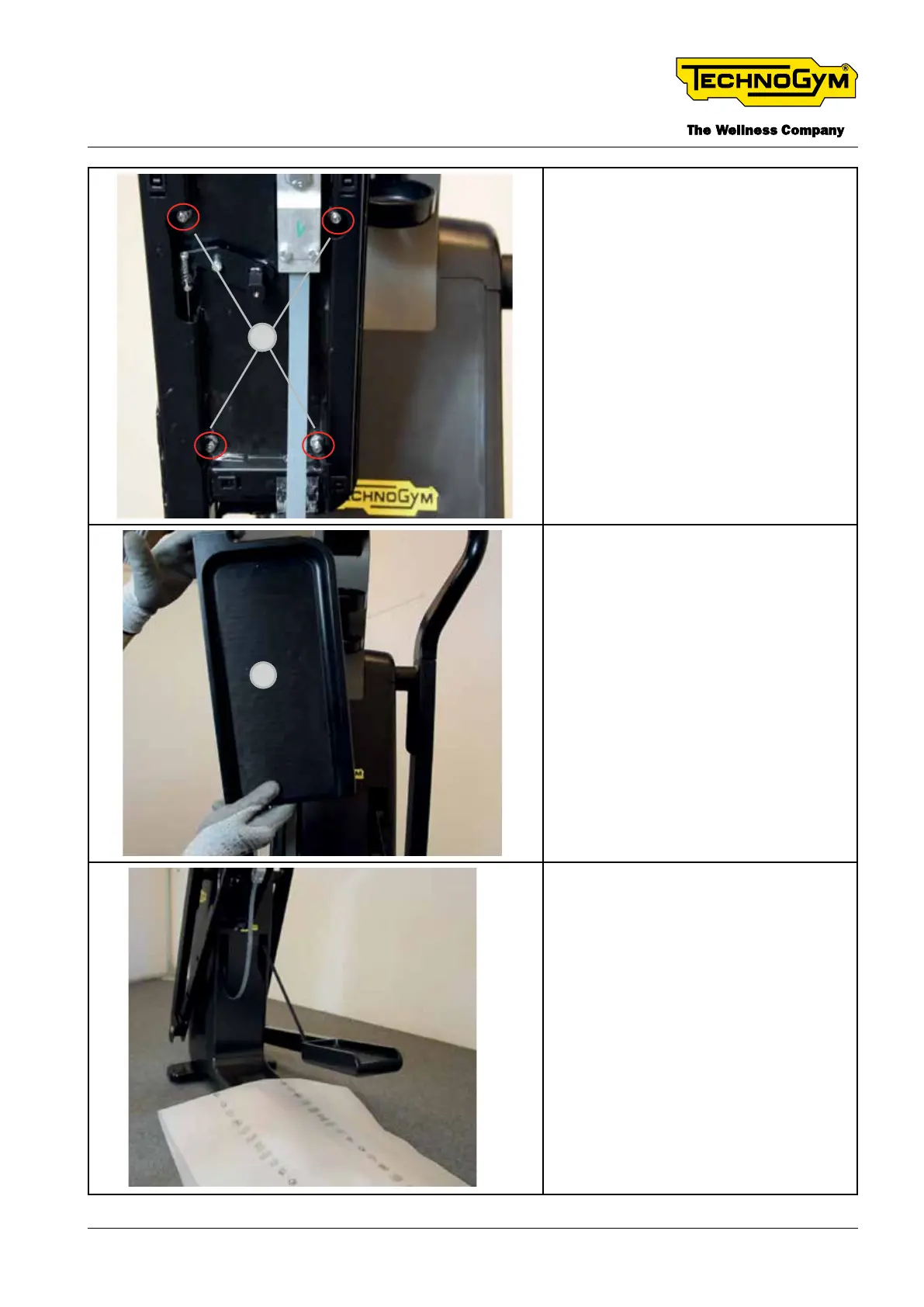

Raise up the lever of the pedal and re-
move the four nuts [35]. (TOOL: ratch-
et with 10mm socket wrench)
36
Remove the pedal [36].
Protect the machine with a cloth as
shown in the gure.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 81 -
