37

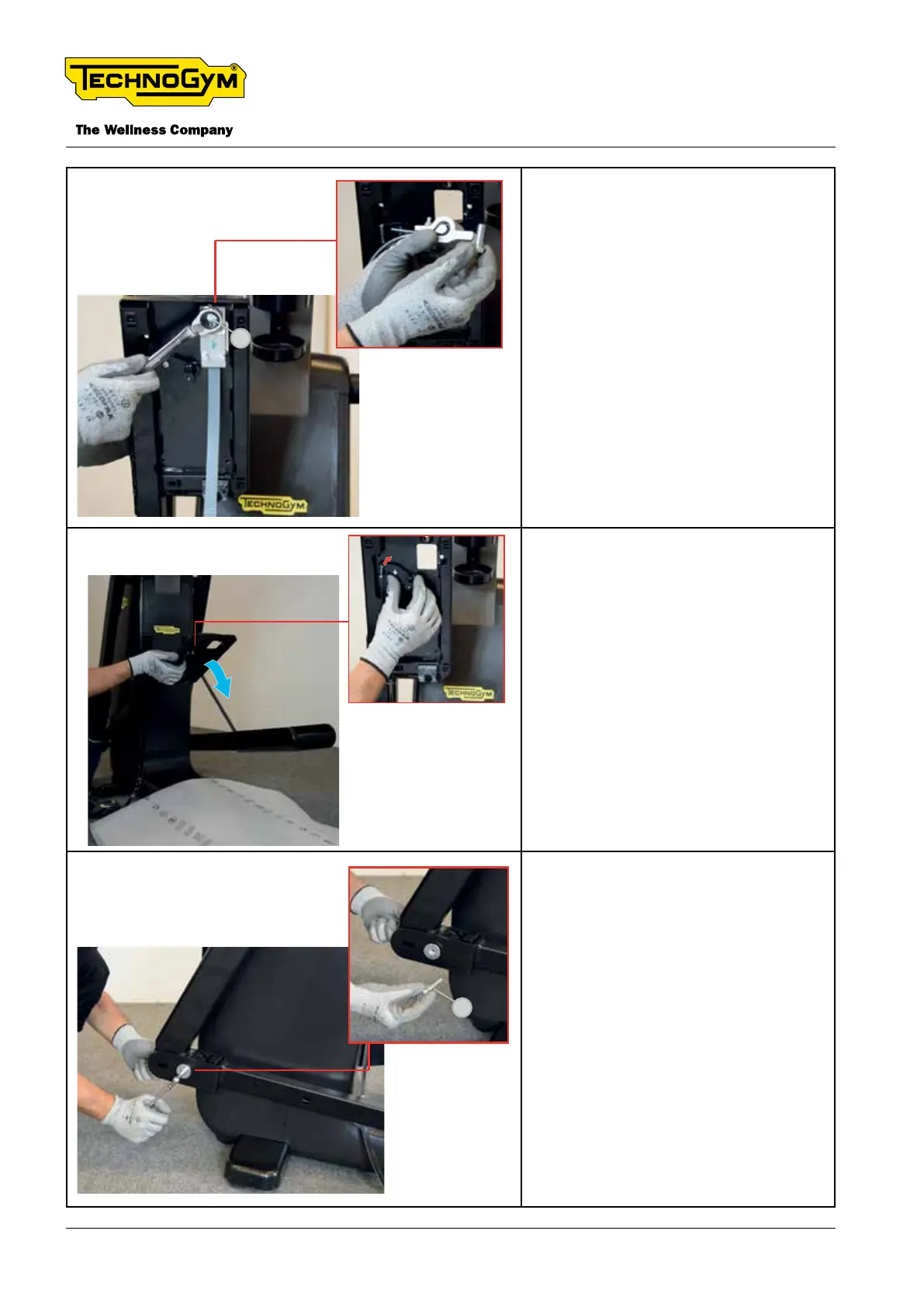

Remove the nut [37] to disassemble
the belt set. (TOOL: 17mm open end
wrench)
Unhook the lever as indicated by the
red arrow and lower the lever of the
pedal.
38
Remove the screw [38]. (TOOL: 6mm
hexagon key wrench+10 mm hexagon
key wrench).
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 82 -
