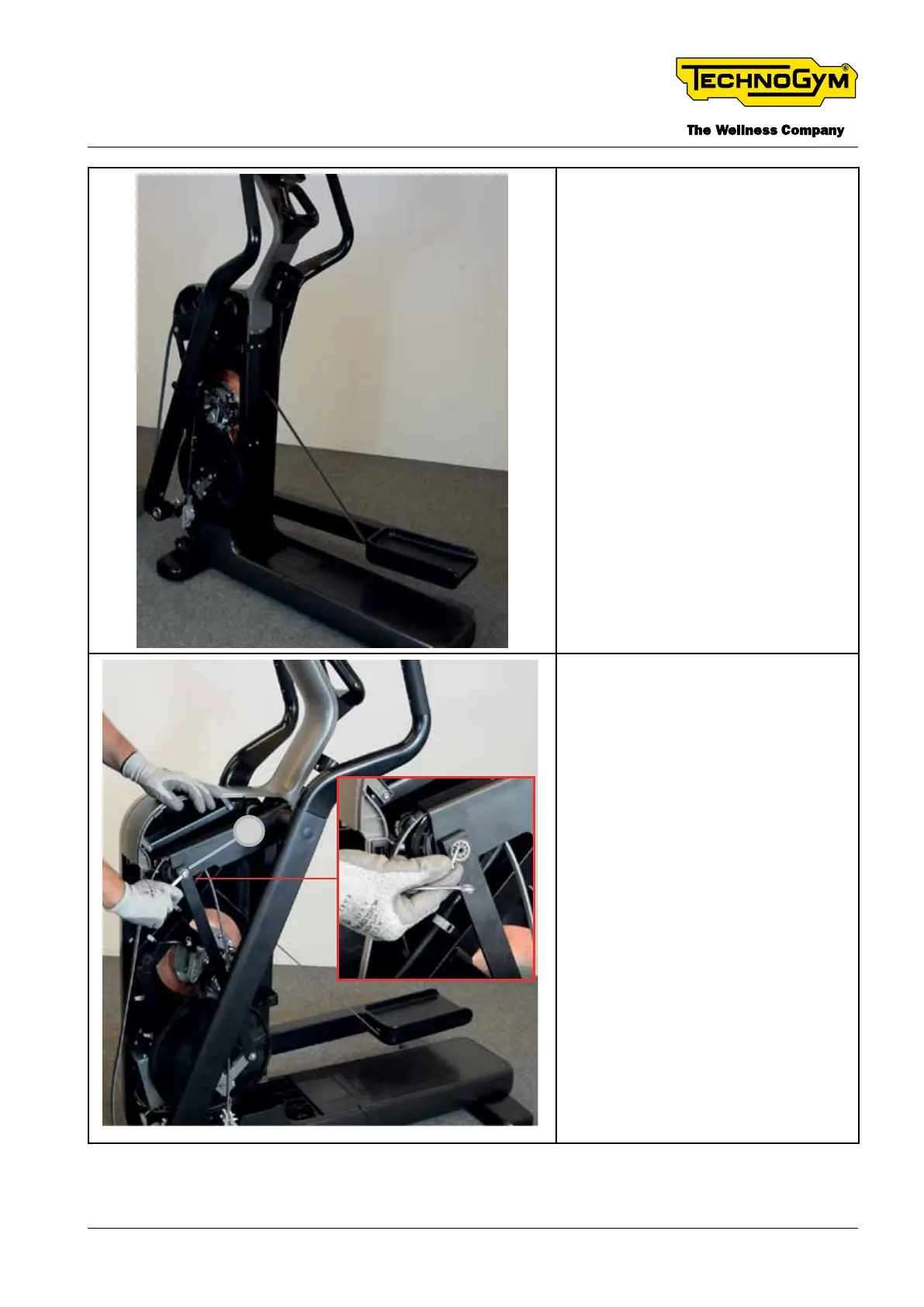

Remove all the necessary casings
as shown in the gure. For details
see §”7.9 DISASSEMBLING THE
FRONT CASINGS”
48
Remove the screw [48]. (TOOL: 8mm
combination wrench, open and oset
ring ends).
